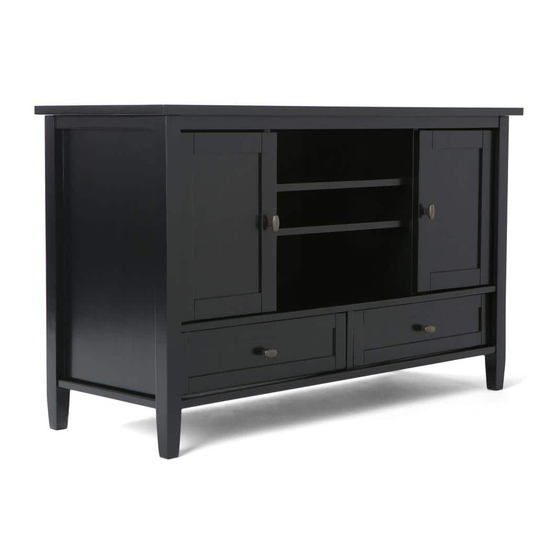

Simpli Home Wyndenhall Brooklyn + Max AXWSH004 Manual
Warmshaker / norfolk / lexington tv media stand
Hide thumbs
Also See for Wyndenhall Brooklyn + Max AXWSH004:
- Assembly manual (10 pages) ,
- User assembly manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for Simpli Home Wyndenhall Brooklyn + Max AXWSH004
Summary of Contents for Simpli Home Wyndenhall Brooklyn + Max AXWSH004

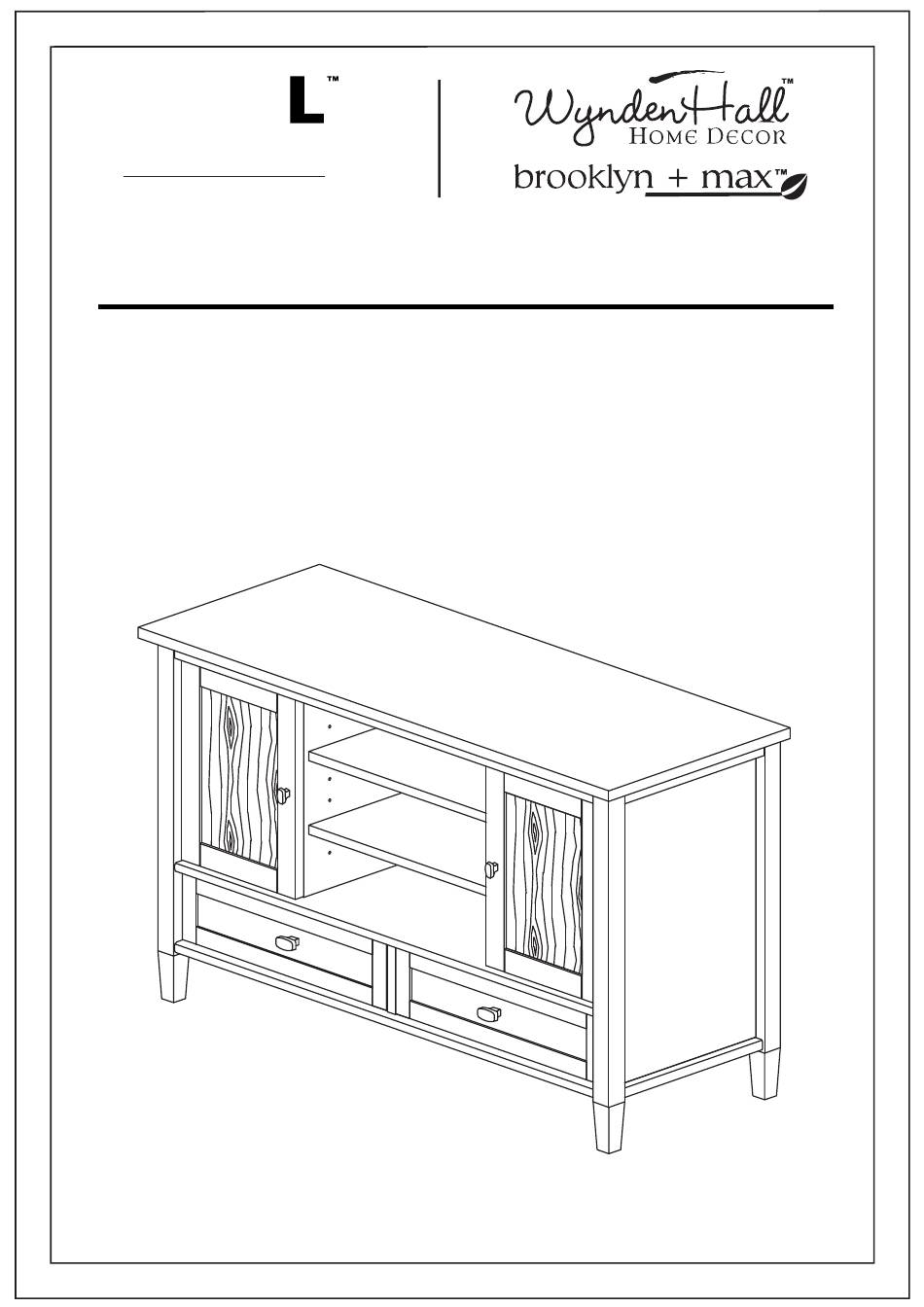

- Page 1 S IMP H O M E L I F E B Y D E S I G N WARM SHAKER / NORFOLK / LEXINGTON TV MEDIA STAND MODEL # AXWSH004 1/21...
- Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM 2/21...
- Page 3 L I F E B Y D E S I G N ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to Win up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/21...
-
Page 4: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXWSH004 PARTS DESCRIPTION SIDES CENTRE SHELF QTY 1 QTY 1 PAIR QTY 1 BOTTOM SUPPORT SHELF SIDE DOOR QTY 1 QTY 1 PAIR QTY 1 PAIR CENTRE DRAWER GLIDE SHELF SHELF CABINET QTY 1 QTY 2 QTY 2 BACK PANEL BACK PANEL... -
Page 6: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # AXWSH004 HARDWARE DESCRIPTION CAM LOCK PIN ALLEN KEY SCREW ALLEN KEY CAM LOCK M6 X 30 mm QTY 1 QTY 16 SETS QTY 32 PHILLIPS SCREW PHILLIPS SCREW M4 X 15 mm M3 X 15 mm MAGNET AND PLATE QTY 2 SETS QTY 24... - Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXWSH004 7/21...
- Page 8 ASSEMBLY MODEL # AXWSH004 STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front M . 2. Align and insert Cam Lock Pins into pre-drilled holes on Drawer Sides N . 3. Insert 2 Cam Lock 2 into pre-drilled holes on each Drawer Side N . 4.
- Page 9 ASSEMBLY MODEL # AXWSH004 STEP 3 1. Align Drawer Back O with Drawer Bottom P and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each side. 3. Use Allen Key 3 to tighten. Do not over-tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 10 ASSEMBLY MODEL # AXWSH004 STEP 5 1. Attach Shelf Sides E to Bottom Shelf C using four Allen Key Screws 1 through pre-drilled holes. 2. Use Allen Key 3 to tighten. Do not over-tighten. STEP 6 1. Attach three Cam Lock Pins 2 to one Side B using guide holes. 2.
- Page 11 ASSEMBLY MODEL # AXWSH004 STEP 7 1. To attach Opposite Side B to Bottom Shelf C , repeat steps 1 - 4 in Step 6. STEP 8 1. Attach two Cam Lock Pins 2 to bottom of Bottom Shelf C using guide holes in centre. 2.
- Page 12 ASSEMBLY MODEL # AXWSH004 STEP 9 1. Attach Bottom Support D to Sides B and Centre Drawer Glide G using Allen Key Screws 1 through pre-drilled holes. 2. Use Allen Key 3 to tighten. Do not over-tighten. 12/21...
- Page 13 ASSEMBLY MODEL # AXWSH004 STEP 10 1. Insert two Dowels 11 into top corners of each Side B . 2. Use rubber mallet to tap Dowels 11 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Align pre-drilled holes on bottom corners of Top A with Dowels 11 in Sides B . 4.
- Page 14 ASSEMBLY MODEL # AXWSH004 STEP 11 1. Attach Adjustable Hinges 12 to Doors F using Phillips Screws 4 into guide holes on Doors F . 2. Attach Adjustable Hinges on Doors F to Sides B using Phillips Screws 4 into guide holes on Sides B .
-
Page 15: Important Note
ASSEMBLY MODEL # AXWSH004 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II . - Page 16 ASSEMBLY MODEL # AXWSH004 STEP 12 1. Attach Magnet Plates 6 to bottom corner of Doors F using Phillips Screws 5 into guide holes on Doors F . 2. Attach Magnet 6 using Phillips Screws 5 into guide holes on Centre Shelf C . 3.
- Page 17 ASSEMBLY MODEL # AXWSH004 STEP 13 1. Using Phillips Round Head Screws 9 attach Back Panels J K L to back of TV Stand. STEP 14 1. Use Shelf Supports 7 for each Shelf H or I in desired location. 2.
- Page 18 FURNITURE ANTI-TIPPING RESTRAINT ASSEMBLY NOTE: Injuries and damage can occur from furniture tip-over. It is important to use the safety bracket included. If the tipping restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture.
- Page 19 FURNITURE ANTI-TIPPING RESTRAINT ASSEMBLY Furniture Anti-Tipping Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 20: Warranty
L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. - Page 21 S IMP H O M E L I F E B Y D E S I G N Question, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
