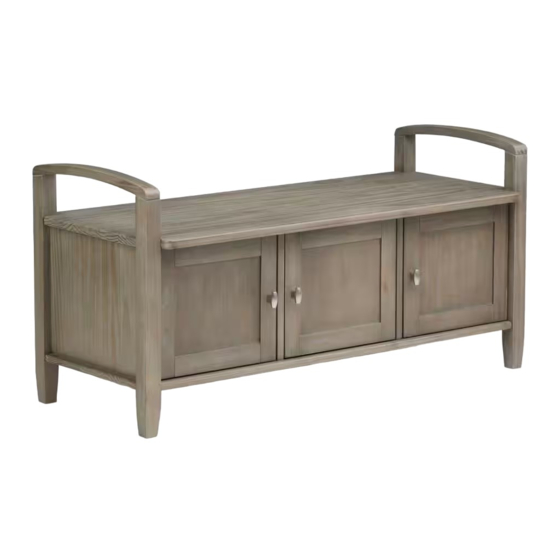

- Page 1 S IMP H O M E L I F E B Y D E S I G N WARM SHAKER / NORFOLK / LEXINGTON ENTRYWAY STORAGE BENCH MODEL # AXWSH006 1/17...
- Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM 2/17...
- Page 3 L I F E B Y D E S I G N ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to Win up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/17...
-
Page 4: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXWSH006-GR PARTS DESCRIPTION SIDE SEAT BOTTOM SHELF QTY 1 PAIR QTY 1 QTY 1 DIVIDER DOOR BACK QTY 1 PAIR QTY 3 QTY 1 CABINET SHELF CABINET SHELF BOTTOM SUPPORT LEG QTY 1 QTY 1 PAIR QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. -
Page 6: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # AXWSH006-GR HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 20 QTY 4 SETS HANDLE PHILLIPS SCREW WOOD DOWEL M3 X 15 mm Ø8 X 30 mm M4 X 25 mm QTY 8 QTY 12... - Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXWSH006-GR 7/17...
- Page 8 ASSEMBLY MODEL # AXWSH006-GR STEP 1 1. Insert four Dowels 5 into pre-drilled holes in the Back F . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Attach Seat B to Side A using Allen Key Screws 1 through pre-drilled holes on Back F .
- Page 9 ASSEMBLY MODEL # AXWSH006-GR STEP 2 1. To attach opposite Side A to Seat B and Back F , repeat steps 1. 9/17...
- Page 10 ASSEMBLY MODEL # AXWSH006-GR STEP 3 1. Attach Dividers D to Seat B using Allen Key Screws 1 through pre-drilled holes. 10/17...
- Page 11 ASSEMBLY MODEL # AXWSH006-GR STEP 4 1. Insert two Wood dowels 5 into pre-drilled holes on each Divider D . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 4.
- Page 12 ASSEMBLY MODEL # AXWSH006-GR STEP 5 1. Attach Adjustable Hinges 11 to Doors E using Phillips Screws 7 into guide holes on Doors E . 2. Attach Adjustable Hinges on Doors E to Sides A using Phillips Screws 7 into guide holes on Sides A .
-
Page 13: Important Note
ASSEMBLY MODEL # AXWSH006-GR IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II . - Page 14 ASSEMBLY MODEL # AXWSH006-GR STEP 6 1. Attach Magnet Plates 8 to bottom corner of Doors E using Phillips Screws 6 into guide holes on Doors E . 2. Attach Magnet 8 using Phillips Screws 6 into guide holes on Bottom Shelf C . 3.
- Page 15 ASSEMBLY MODEL # AXWSH006-GR STEP 7 1. Use four Shelf Supports 9 for each Shelf G or H in desired location. 2. Two Shelf Supports 9 may be used on back top of each Shelf G or H as a tipping restraint. 15/17...
-
Page 16: Warranty
L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. - Page 17 S IMP H O M E L I F E B Y D E S I G N Question, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
