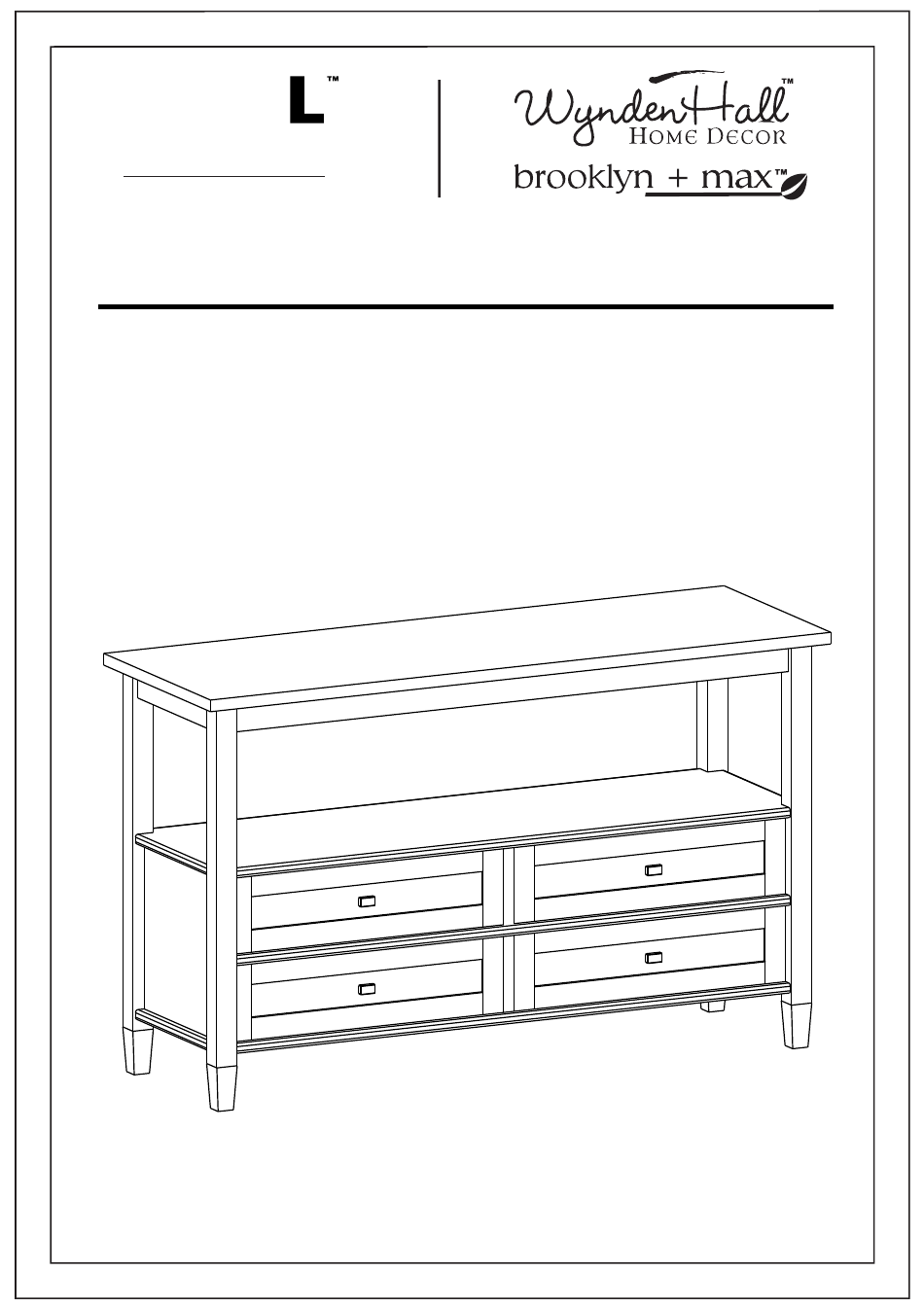

WARM SHAKER / NORFOLK / LEXINGTON
CONSOLE TABLE
MODEL # AXWSH007-TB
1/17

Advertisement

loading
Need help?

Need help?

Do you have a question about the Wynden Hall brooklyn + max AXWSH007-TB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Simpli Home Wynden Hall brooklyn + max AXWSH007-TB

  • Page 1 S IMP H O M E L I F E B Y D E S I G N WARM SHAKER / NORFOLK / LEXINGTON CONSOLE TABLE MODEL # AXWSH007-TB 1/17...
  • Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM 2/17...
  • Page 3 L I F E B Y D E S I G N ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to Win up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/17...
  • Page 4: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
  • Page 5: Pre-Assembly Information

    MODEL # AXWSH007-TB PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION SIDE DIVIDER QTY 1 QTY 1 PAIR QTY 1 TOP SHEL MIDDLE FRAME BOTTOM FRAME QTY 1 QTY 1 QTY 1 DRAWER SIDE DRAWER FRONT BACK QTY 4 PAIRS QTY 4 QTY 1 DRAWER BACK DRAWER BOTTOM QTY 4...
  • Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXWSH007-TB HARDWARE DESCRIPTION ALLEN KEY SCREW WOOD DOWEL CAM LOCK PIN M6 X 30 mm Ø8 X 30 mm CAM LOCK QTY 36 QTY 12 QTY 22 SETS Required - Flathead screwdriver Phillips screwdriver HANDLE ALLEN KEY Rubber mallet QTY 4 SETS QTY 1...
  • Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXWSH007-TB 7/17...
  • Page 8 ASSEMBLY MODEL # AXWSH007-TB STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front H . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides I . 3. Insert 2 Cam Locks 2 into pre-drilled holes on each Drawer Side I . 4.
  • Page 9 ASSEMBLY MODEL # AXWSH007-TB STEP 3 1. Align Drawer Back J with Drawer Bottom K and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each Side I . 3. Use Allen Key 4 to tighten screws. Do not over-tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
  • Page 10 ASSEMBLY MODEL # AXWSH007-TB STEP 5 Note: Holes are on the right side 1. Insert 2 Wood Dowels 3 into Middle Frame E . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of dowels should be exposed.
  • Page 11 ASSEMBLY MODEL # AXWSH007-TB STEP 6 1. Attach Divider C to Top Shelf D and Middle Frame E using 5 Allen Key Screws 1 . 2. Use Allen Key 4 to tighten screws. Do not over-tighten. 11/17...
  • Page 12 ASSEMBLY MODEL # AXWSH007-TB STEP 7 1. Insert 2 Wood Dowels 3 into Back Panel G . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of dowels should be exposed. 3. Attach Back Panel G by inserting exposed dowel ends into matching pre-drilled holes on Side B .
  • Page 13 ASSEMBLY MODEL # AXWSH007-TB STEP 8 1. Repeat Step-5 & Step-7 for the second Side B . 13/17...
  • Page 14 ASSEMBLY MODEL # AXWSH007-TB STEP 9 1. Attach Bottom Frame F to Sides B and Divider C using 9 Allen Key Screws 1 . 2. Use Allen Key 4 to tighten screws. Do not over-tighten. 14/17...
  • Page 15 ASSEMBLY MODEL # AXWSH007-TB STEP 10 1. Insert 2 Dowels 3 into top corners of each Side B . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed. 3. Attach 6 Cam Lock Pins 2 to bottom of Top A . 4.
  • Page 16: Warranty

    L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
  • Page 17 S IMP H O M E L I F E B Y D E S I G N Question, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
