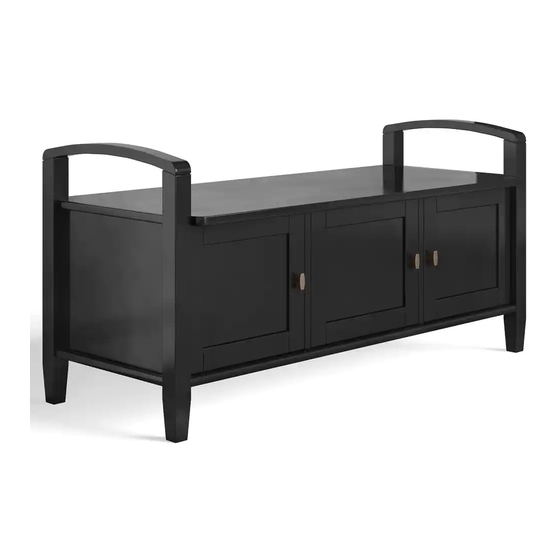

- Page 1 SIMP HOME ® L I F E B Y D E S I G N WARM SHAKER / NORFOLK / LEXINGTON ENTRYWAY STORAGE BENCH MODEL # AXWSH006-BL 1/16...
- Page 2 SIMP HOME ® L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXWSH006-BL PARTS DESCRIPTION SEAT LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 BACK DOOR (L&R Same) CABINET SHELF QTY 1 QTY 3 QTY 1 LEFT CABINET SHELF RIGHT CABINET SHELF... -
Page 6: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # AXWSH006-BL HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 20 QTY 4 SETS HANDLE PHILLIPS SCREW WOOD DOWEL M3 X 15 mm Ø8 X 30 mm M4 X 25 mm QTY 8 QTY 12... - Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXWSH006-BL 7/16...
- Page 8 ASSEMBLY MODEL # AXWSH006-BL STEP 1 1. Insert four Dowels 5 into guide holes in the Back F . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Attach Seat B to Left Side AL using Allen Key Screws 1 through guide holes on Back F .
- Page 9 ASSEMBLY MODEL # AXWSH006-BL STEP 2 1. To attach Right Side AR to Seat B and Back F , repeat steps 1. 9/16...
- Page 10 ASSEMBLY MODEL # AXWSH006-BL STEP 3 1. Attach Dividers DL , DR to Seat B using Allen Key Screws 1 through guide holes. 10/16...
- Page 11 ASSEMBLY MODEL # AXWSH006-BL STEP 4 1. Insert two Wood dowels 5 into guide holes on each Divider DL , DR . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 4.
- Page 12 ASSEMBLY MODEL # AXWSH006-BL STEP 5 1. Attach Adjustable Hinges 11 to Doors E using Phillips Screws 7 into pre-drilled holes on Doors E . 2. Attach Adjustable Hinges on Doors E to Sides AL , AR using Phillips Screws 7 into pre-drilled holes on Sides AL , AR .
-
Page 13: Important Note
ASSEMBLY MODEL # AXWSH006-BL IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II . - Page 14 ASSEMBLY MODEL # AXWSH006-BL STEP 6 1. Attach Magnet Plates 8 to bottom corner of Doors E using Phillips Screws 6 into pre-drilled holes on Doors E . 2. Attach Magnets 8 using Phillips Screws 6 into pre-drilled holes on Bottom Shelf C . 3.
- Page 15 ASSEMBLY MODEL # AXWSH006-BL STEP 7 1. Use four Shelf Supports 9 for each Shelf G or HL , HR in desired location. 2. Two Shelf Supports 9 may be used on back top of each Shelf G or HL , HR as a tipping restraint.
-
Page 16: Warranty
L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
