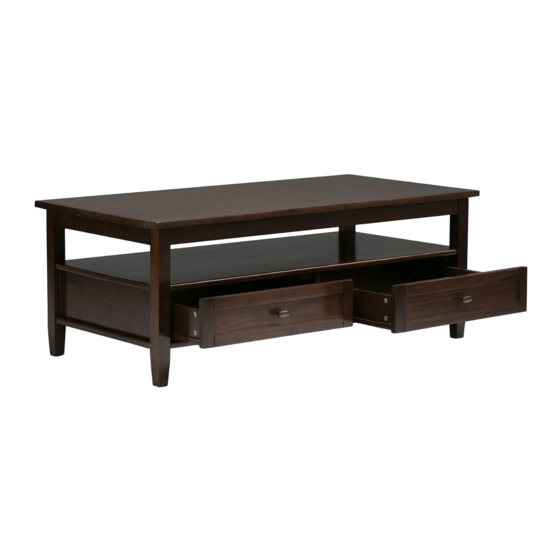

- Page 1 S IMP H O M E L I F E B Y D E S I G N WARM SHAKER / NORFOLK / LEXINGTON COFFEE TABLE MODEL # AXWSH001-TB 1/17...
- Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM 2/17...
- Page 3 L I F E B Y D E S I G N ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to Win up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/17...
-
Page 4: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXWSH001-TB PARTS DESCRIPTION SIDES TOP SHELF QTY 1 QTY 1 PAIR QTY 1 BOTTOM SHELF BACK CENTRE DRAWER QTY 1 QTY 1 QTY 1 DRAWER FRONT DRAWER SIDE DRAWER BACK QTY 2 QTY 2 PAIRS QTY 2... - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXWSH001-TB HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 26 QTY 18 SETS Required - Flathead screwdriver Phillips screwdriver HANDLE WOOD DOWEL Rubber mallet M4X25 mm Ø8 X 30 mm...
- Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXWSH001-TB 7/17...
- Page 8 ASSEMBLY MODEL # AXWSH001-TB STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front G . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides H . 3. Insert 2 Cam Lock 2 into pre-drilled holes on each Drawer Side H .
- Page 9 ASSEMBLY MODEL # AXWSH001-TB STEP 3 1. Align Drawer Back I with Drawer Bottom J and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each side. 3. Use Allen key 3 to tighten. Do not over tighten.
- Page 10 ASSEMBLY MODEL # AXWSH001-TB STEP 5 NOTE: Holes are on the right side. 1. Attach Top Shelf C to one Side B using Allen Key Screws 1 through pre-drilled holes. 10/17...
- Page 11 ASSEMBLY MODEL # AXWSH001-TB STEP 6 1. Attach 2 Cam Lock Pins 2 to one Side B using guide holes. 2. Align and insert Cam lock Pins on Side B into pre-drilled holes on Back E . 3. Using a flathead screwdriver tighten Cam Locks into Pins.
- Page 12 ASSEMBLY MODEL # AXWSH001-TB STEP 7 1. To attach opposite Side B to Top Shelf C and Back E , repeat steps 5 - 6. 12/17...
- Page 13 ASSEMBLY MODEL # AXWSH001-TB STEP 8 1. Attach Centre Drawer F to Top Shelf C using Allen Key Screws 1 through pre-drilled holes. 13/17...
- Page 14 ASSEMBLY MODEL # AXWSH001-TB STEP 9 1. Insert 2 Dowels 5 into pre-drilled holes on the Centre Drawer F . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 15 ASSEMBLY MODEL # AXWSH001-TB STEP 10 1. Insert Dowels 5 into each corner of Side B . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Attach 6 Cam Lock Pins 2 to bottom of Top A .
-
Page 16: Warranty
L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. - Page 17 S IMP H O M E L I F E B Y D E S I G N Question, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
