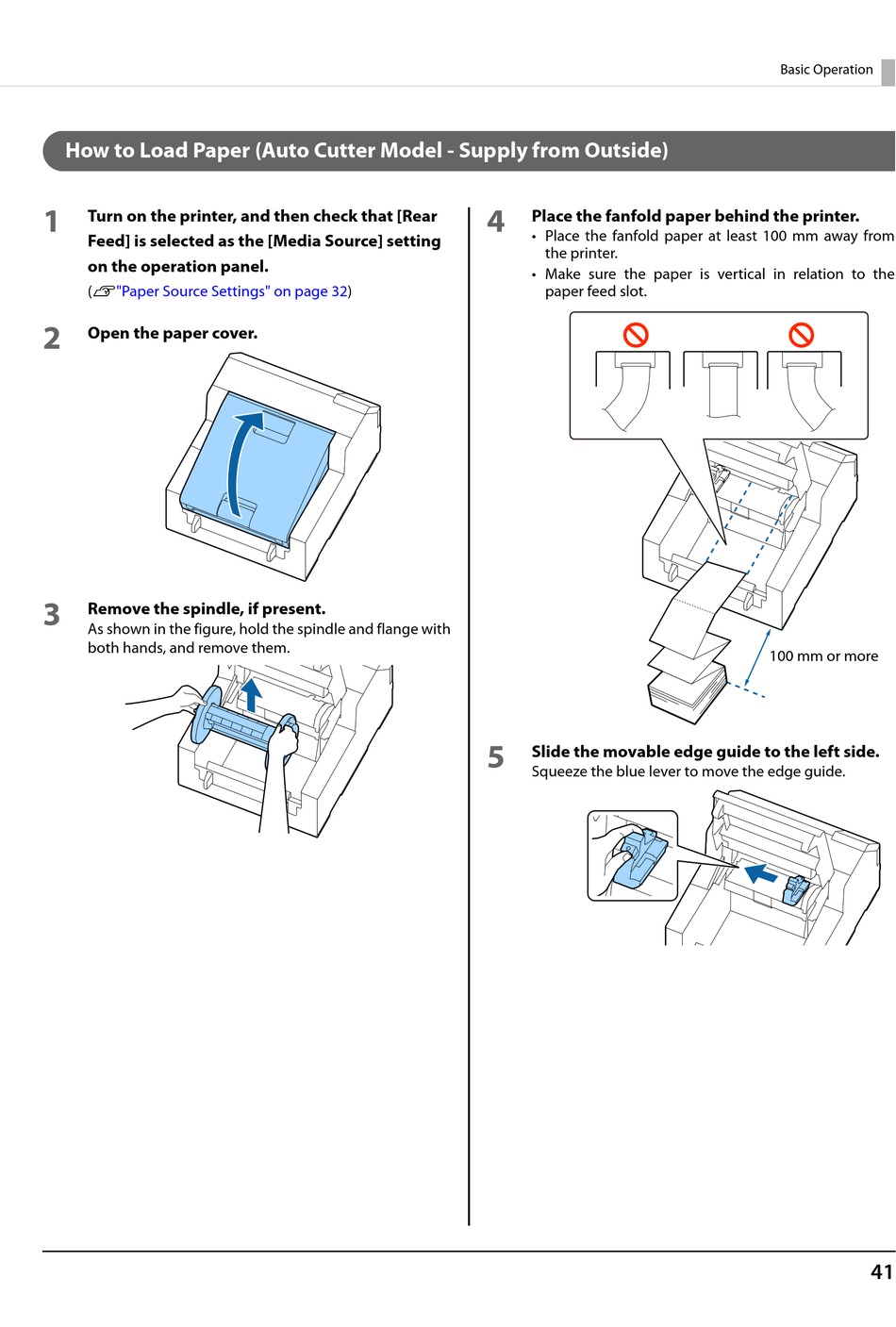

How to Load Paper (Auto Cutter Model - Supply from Outside)

1 Turn on the printer, and then check that [Rear
Feed] is selected as the [Media Source] setting
on the operation panel.
(U"Paper Source Settings" on page
2
Open the paper cover.
3
Remove the spindle, if present.
As shown in the figure, hold the spindle and flange with
both hands, and remove them.
4
32)
5
Place the fanfold paper behind the printer.
• Place the fanfold paper at least 100 mm away from
the printer.
• Make sure the paper is vertical in relation to the
paper feed slot.
Slide the movable edge guide to the left side.
Squeeze the blue lever to move the edge guide.
Basic Operation
100 mm or more
41
