Summary of Contents for Snom M10R KLE

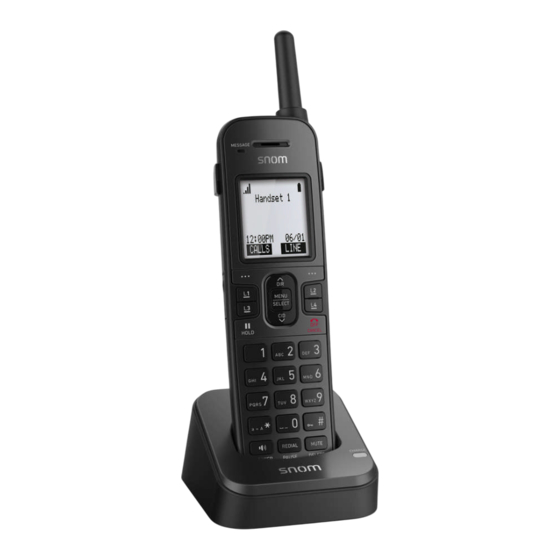

- Page 1 100% M10R KLE Silkscreen on the Top Silks Pantone 8001C Pant SIP DECT 4-Line Rugged Handset CSP | M10R-Handset (US version) Quick Installa� on Guide...
-
Page 2: Important Safety Information
Important Safety Information This symbol is to alert you to important operating or servicing instructions that may appear on the product or in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following:... - Page 3 13. Do not overload wall outlets and extension cords. 14. Unplug this product from the wall outlet and refer servicing to an authorized service facility under the following conditions: A. When the power supply cord or plug is damaged or frayed. B.
- Page 4 22. CAUTION: Keep small metallic objects such as pins and staples away from the handset receiver. SAVE THESE INSTRUCTIONS For cUL compliance only Mesures de sécurité importantes Ce symbole vous alertera d’informations importantes ou d’instructions d’entretien pouvant apparaître dans ce guide d’utilisation. Respectez toujours les mesures de sécurité...
- Page 5 14. Débranchez cet appareil de la prise de courant et communiquez avec le département de service à la clientèle de Snom dans les cas suivants: A. Lorsque le cordon d’alimentation est endommagé ou écorché.
- Page 6 ventilation adéquate; le gaz industriel (dissolvants, vapeurs d’essence, etc.); une fuite de gaz naturel, etc. 17. Placez uniquement le combiné de votre appareil près de votre oreille lorsqu’il est en mode de conversation normal. 18. Les adaptateurs sont conçus pour être orientés en position verticale ou en position horizontale sur le plancher.
- Page 7 Compliance FCC part 15 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 8: About This Guide
The M10R KLE SIP DECT 4-Line Rugged Handset is for use with the M100 KLE SIP DECT 4-Line Base Station or a compatible SIP deskset. Please refer to the M10R KLE SIP DECT 4-Line Rugged Handset User Manual for complete operation instructions with the base station. - Page 9 Quick Reference Guide illustration scale 100% Cordless handset external features MESSAGES LED Flashes when a line has a new voice message. HEADSET JACK 2.5 mm jack for connecting a corded – VOLUME + headset. During a call: increase or decrease listening volume. SOFT KEYS When idle: increase or Perform the actions...
-
Page 10: Handset Installation
Handset Installation This section assumes that your network infrastructure is established and that your IP PBX phone service has been ordered and configured for your location. Installation involves both the the handset and the handset charger. The handset charger is powered using the supplied power adapter. The charger can be placed on a flat surface or mounted on a wall. - Page 11 IMPORTANT INFORMATION 1. Use only the power adapter supplied with this product. To order a replacement www.snomamericas.com power adapter, visit our website at 2. The power adapter is intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet.
- Page 12 To install the handset battery: 1. Rotate the dial on the back of the handset to the unlock position , and slide the battery cover down to remove it.. 2. Plug the battery connector securely into the socket inside the handset battery compartment.
- Page 13 Adding a corded headset You can use this handset hands-free when you install any industry-standard 2.5 mm corded telephone headset (purchased separately). Plug a 2.5 mm headset into the HEADSET jack on the side of the handset.
-
Page 14: Handset Registration
Handset Registration Registering the handset to the base station The handset must be registered to the base station in order to make and receive calls. To register the handset: 1. Make sure the handset has a charged battery before proceeding. Make sure the base station is connected to power. - Page 15 7. Press The handset displays the following message: 8. On the base station, press the HANDSET LOCATOR button for at least four seconds, then release the button. Both LEDs on the base station begin to flash. 9. Press the # key on the handset to begin registration. The screen displays “Registering Please wait”.
-
Page 16: Maintenance
Note: The handset enters an energy-saving charging mode after being deregistered. All cordless telephone functions except handset-battery charging are disabled. Energy-saving charging mode is deactivated after the handset registers to the base station. Maintenance Taking care of your telephone • Your base station and cordless handset contain sophisticated electronic parts, so you must treat them with care. -
Page 17: Technical Specifications
Technical Specifications RF frequency band 1921.536–1928.448 MHz Channels Operating temperature 32–104 °F (0–40 °C) Power requirements Handset charger: 6.0Vdc 400mA Handset: 2.4V 550mAh, Ni-MH battery pack... - Page 20 VTECH COMMUNICATIONS, INC. Tigard, Oregon 97223, USA. Copyright © 2019 Snom Technology GmbH. All Rights Reserved. v2019002 Version 2, 06/19...
