Valor MADRONA Series Installation Instructions Manual

Propane Gas Conversion Kit
Once converted to LPG, this appliance is certifi ed for
use from 0–4500 feet. For altitudes above 4500 feet,
see local codes.

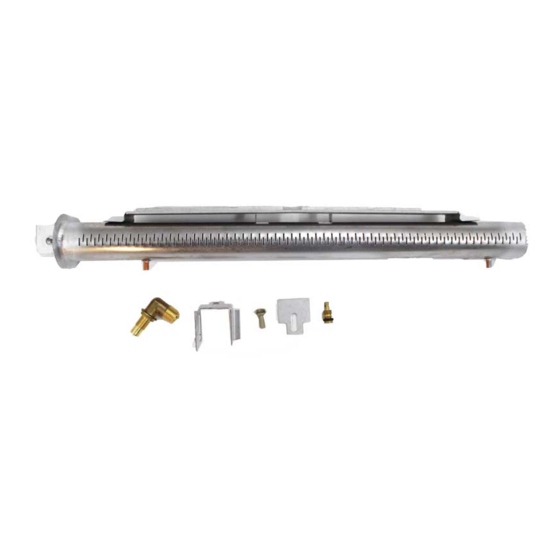

Kit Contents
1 Pilot injector (marked 27)
1 Burner
1 Injector (marked 300)
1 Set of conversion labels
1 Set of air shutters
Tools Required
•
Wrenches, to disconnect gas line
•
Phillips (+) screwdriver, to remove burner module &
pilot shield
•
Small (jewelers size) fl at blade screwdriver, to set
pressure
•
Small fl at blade screwdriver, to release pressure tap
on valve
•
Needle nose pliers, to remove by-pass screw
•
Hex (Allen) wrench, 4 mm or 5/32", to remove pilot
injector
•
Manometer, to set manifold at the valve
Rating
Maximum 28,000 Btu/hr
Minimum 14,500 Btu/hr
General notes regarding conversion
The conversion may be done before or after the
appliance is installed into the cavity. However, the
gas must be connected in order to set the manifold
pressure.
4002178-02
M
ADRONA
MF28IPK
Use with with Valor Models MF28I Heater ONLY
Installation Instructions
© 2011, Miles Industries Ltd. All rights reserved.
WARNING
This conversion kit shall be installed by a
qualifi ed service agency in accordance with
the manufacturer's instructions and all appli-
cable codes and requirements of the authority
having jurisdiction. If the information in these
instructions is not followed exactly, a fi re, ex-
plosion or production of carbon monoxide may
result causing property damage, personal in-
jury or loss of life. The qualifi ed service agency
is responsible for the proper installation of this
kit. The installation is not proper and complete
until the operation of the converted appliance
is checked as specifi ed in the manufacturer's
instructions supplied with the kit.
Use this manual in conjunction with the instal-
lation manual supplied with the appliance.
