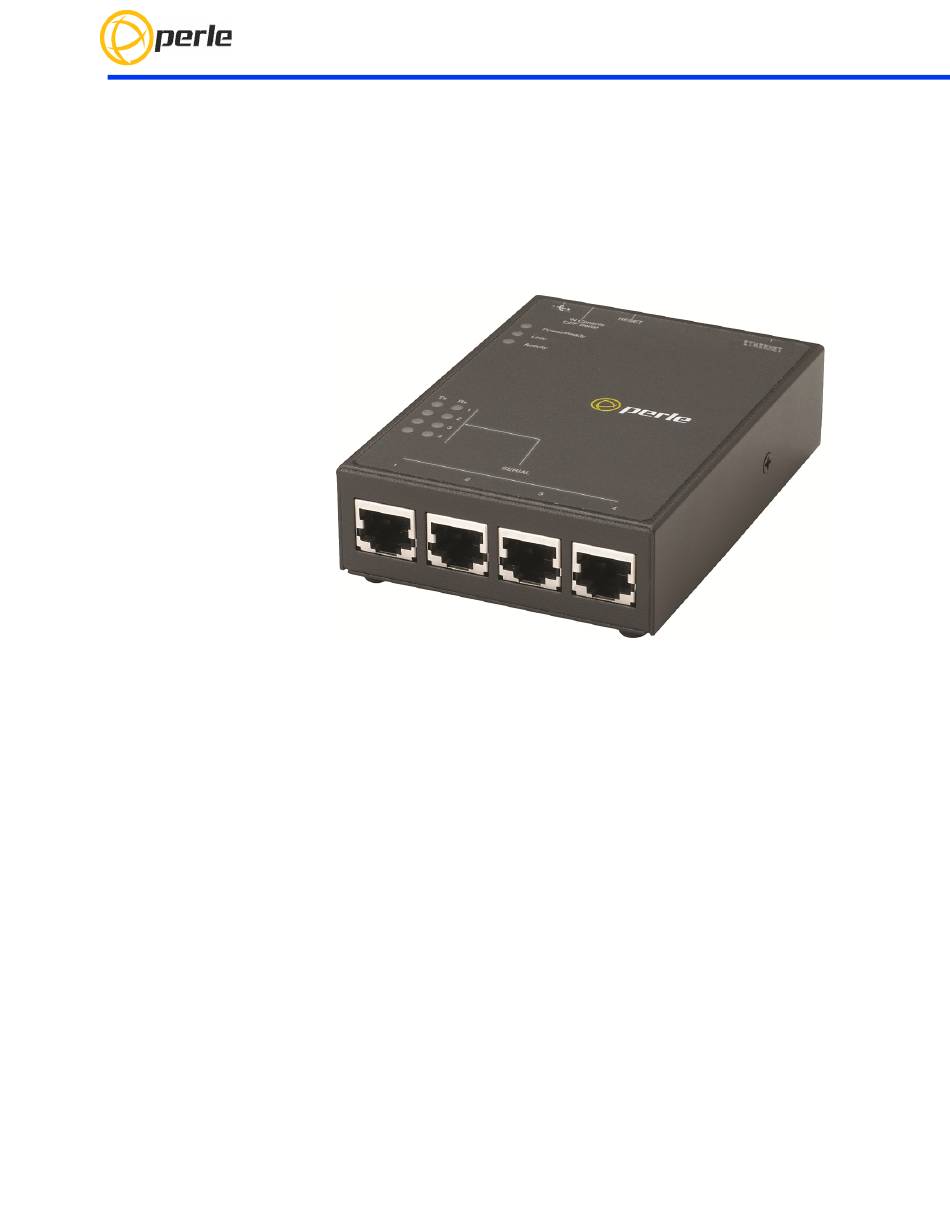

- Page 1 IOLAN SDG4 P/STG4 P Hardware Installation Guide Updated: September 2019 Version A.1.09.01.2019 www.perle.com Document Part#:5500424-10(Rev. C)
- Page 2 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product. Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.
-
Page 3: Table Of Contents
IOLAN SDG4 P/STG4 P (Side View with Barrel connector) ....... . -
Page 4: Hardware
SDG4 P/STG4 P. It covers hardware features as well as installation and operation of the IOLAN. This document does not cover how to configure your Perle IOLAN SDG4 P/STG4 P. Information to configure your Perle IOLAN can be found in the IOLAN User’s Guide. -
Page 5: Overview
The unit has four, 10 pin, RJ45 ports. All ports can be used to connect a serial device and to provide power out. When used to connect a serial device, the ports can operate in IOLAN SDG4 P/STG4 P Hardware Installation Guide... -
Page 6: Button/Switch Functions
IOLAN management function using the industry standard CLI command set (see Console Port Mode). See the IOLAN Command Line Interface Reference Guide for a complete set of the com- mands available via the console. IOLAN SDG4 P/STG4 P Hardware Installation Guide... -
Page 7: Led Indicators
Error condition Link 10/100/1000 State Description Green 1000 Mbps Amber 10 /100 Mbps No LAN connection Activity State Description Green Flashes with activity Amber Flashes with activity No LAN connection IOLAN SDG4 P/STG4 P Hardware Installation Guide... -
Page 8: Installation
Follow the manufacturers instructions for attaching the ground wire to the grounding lug. 1. Attach the grounding lug to the chassis and secure with the grounding screw provided. See Figure 1. 2. Attach the power cord relief clip as shown in Figure 2. IOLAN SDG4 P/STG4 P Hardware Installation Guide... -
Page 9: Connecting The Serial Ports
For the different methods which can be used to connect to the serial device see the IOLAN User’s Guide. When serial port 1 is in this mode, all console mode functions are disabled on the port. IOLAN SDG4 P/STG4 P Hardware Installation Guide... -
Page 10: Connecting Data Ports
2. Once the IOLAN is connected and the link is established, the link LEDs will turn on. These LEDs will indicate whether you have a 10, 100 or 1000 Mbps link to your hub/ switch. See. (LED Indicators) for more details. Ethernet Connector - 8-pin RJ-45 IOLAN SDG4 P/STG4 P Hardware Installation Guide... -
Page 11: Operation
“Reset” and hold the reset button between 3 and 10 seconds, the IOLAN will reset the configuration to factory default (either the Perle or custom default configuration). If you hold the reset button greater than 10 seconds, then the IOLAN will reset the configura- tion to the Perle factory default configuration. -
Page 12: Configuring The Iolan
SSH, SNMP or the Web interface. Web Manager The Perle Web Manager is an embedded Web based application that provides an easy to use browser interface for configuring and managing the IOLAN. Once an IP address has been assigned/configured on IOLAN, it can be accessed through any standard desktop web browser. -
Page 13: Appendix A - Technical Specifications
Appendix A - Technical Specifications IOLAN SDG4 P/STG4 P Port Technical Specifications Power Input 12/24 VDC (9-30 VDC) Power Supply Options Power via external power 9-30v DC, 4.8 watts uses standard 5.5 mm x 9.5 mm x 2.1 mm barrel socket (not... -
Page 14: Appendix B - Mechanical Drawing
Appendix B - Mechanical Drawing IOLAN SDG4 P/STG4 P Hardware Installation Guide... -
Page 15: Appendix C - Labels (Sample)
Appendix C - Labels (Sample) IOLAN SDG4 P/STG4 P Hardware Installation Guide... -
Page 16: Appendix D - Cabling And Connectors
1. Unplug the IOLAN from the electrical outlet and disconnect everything from the unit. 2. Open the case by unscrewing the four side screws, two on each side, and lifting off the top of the case. IOLAN SDG4 P/STG4 P Hardware Installation Guide... - Page 17 Half Duplex set DIP switch 8 to ON. 5. Close the IOLAN case by replacing the case lid and the four screws. You can now power the IOLAN with the new settings. IOLAN SDG4 P/STG4 P Hardware Installation Guide...
-
Page 18: Appendix E - Iolan Maintenance
• Do not use solvents or cleaning agents on this unit • Keep vent holes clear of debris • If case gets dirty wipe with a dry cloth • Ensure all cables are in working condition IOLAN SDG4 P/STG4 P Hardware Installation Guide... -
Page 19: Contacting Perle Systems Limited
Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. https://www.perle.com/support_services/support_request.shtm Warranty / Registration This product is covered by the Perle IOLAN SDG Warranty. Details can be found at: https://www.perle.com/support_services/warranty.shtml IOLAN SDG4 P/STG4 P Hardware Installation Guide...
