Features
•

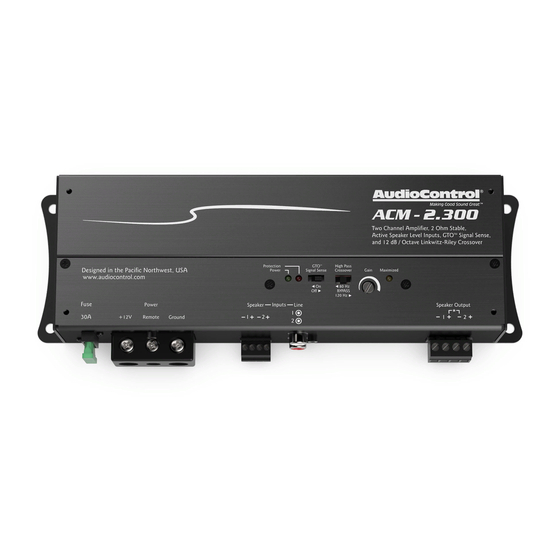

Compact High Power 2-Channel Amplifier
•
High Current Design
•
2x75 Watts @ 4 Ohms, 2x150 Watts @ 2 Ohms
•
1x300 Watts @ 4 Ohms, Bridged Mono
•
12 dB/Octave Linkwitz-Riley Alignment Crossover
•
GTO™ Signal Sense (Great Turn On)
•
2 Line-Level RCA Inputs
•
2 Active Speaker-Level Inputs for OEM integration
•
Filled with home-grown audio goodness
COMPACT HIGH POWER 2-CHANNEL AMPLIFIER
Quick Start Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AudioControl ACM-2.300
Summary of Contents for AudioControl ACM-2.300
- Page 1 Features • Compact High Power 2-Channel Amplifier • High Current Design • 2x75 Watts @ 4 Ohms, 2x150 Watts @ 2 Ohms • 1x300 Watts @ 4 Ohms, Bridged Mono • 12 dB/Octave Linkwitz-Riley Alignment Crossover • GTO™ Signal Sense (Great Turn On) •...
-
Page 2: Important Safety Instructions
10. Provide +12V and Ground wiring of sufficient size to ensure adequate remove the top panel to access the controls. ACM-2.300 There are no user-serviceable parts inside. Refer current to the amplifier. For the this means 8 gauge wire or servicing to qualified personnel. -
Page 3: Connection Panel Features
Line-level inputs if you are using the speaker-level inputs. to the 12V remote trigger output of some head units. When the head unit is turned on, then the ACM-2.300 amplifier will turn on. Alternatively, you can use the GTO™ feature of the amplifier so it will turn on when an audio signal is detected at the speaker-level or line-level inputs. - Page 4 6. RCA Analog Line-Level Inputs – The line-level outputs from the head unit or factory installed radios can connect here, so the ACM-2.300 will receive the line-level audio signals. Do not use the speaker-level inputs if you are using the RCA line-level inputs.
-
Page 5: Control Panel Features
Choosing the correct crossover point will provide increased speaker 10. GTO™ Signal Sense – In the ON position, the ACM-2.300 amplifier reliability and optimum sound quality. The ACM-2.300 amplifier will turn on gracefully when it detects an incoming audio signal,... - Page 6 13. Gain Maximized LED – This LED indicates when the ACM-2.300 amplifier gain has been maximized for optimum performance. Quick Start Guide...
-
Page 7: Quick Start
Quick Start Here are a few general steps to get your ACM-2.300 amplifier up and 7. Connect the +12V input terminal of the unit to the +12V termi- running: nal of the vehicle battery, using 8 to 4 AWG. 1. Undo the +12V and Ground connections to the car battery 8. -
Page 8: Power Connections
ACM-2.300 amplifier. +12V Trigger Alternatively, the GTO™ signal sense feature can be used to gently turn on the ACM-2.300 amplifier when an audio input signal is detected. (The con- nection to the ACM-2.300 remote input terminal is not required when using the GTO™... - Page 9 System #1: Using Speaker-Level Inputs ACM-2.300 Speaker-level output 80 Hz and above ACM-1.300 Mono Subwoofer Amplifier Speaker-level outputs Speaker-level output 80 Hz and below Subwoofer Factory Speaker-level Radio outputs...
- Page 10 System #2: Using Line-Level Inputs ACM-2.300 Speaker-level output 80 Hz and above ACM-1.300 Mono Subwoofer Amplifier Line-level outputs Speaker-level output 80 Hz and below Subwoofer Aftermarket Line-level Head Unit outputs Quick Start Guide...
-
Page 11: Cover Plate Removal
Cover Plate Removal The cover plate must be removed to gain access to the controls, and then put back on again to protect the controls from dust bunnies. Removal Procedure 1. Locate the top four screws that hold the cover plate in place. -
Page 12: Specifications
Specifications All specifications are measured at 14.4 VDC (standard automotive voltage). As technology advances, AudioControl reserves the right to continuously change our specifications, like our Pacific Northwest weather, although we are working on changing that as well. Protection Codes The ACM-2.300 Amplifier The various codes flashed by the Protection LED will help you diagnose any problems with your system.
