Compact high power all-weather mono amplifier

Advertisement

Quick Links

Features
Compact High Power Mono Subwoofer Amplifier
High Current Design
1x 350 watts @ 4 Ohms
1 x 600 Watts @ 2 Ohms
12 dB/Octave Linkwitz-Riley Alignment Crossover
GTO™ Signal Sense (Great Turn On)
2 RCA Inputs - switchable for Low and High Level signals
Optional wired ACR-1 Remote Control for Output Level
All-weather rated - IPX6 rated!
Cage-free op-amps
ACX-600.1
COMPACT HIGH POWER ALL-WEATHER MONO AMPLIFIER
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACX-600.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for AudioControl ACX-600.1

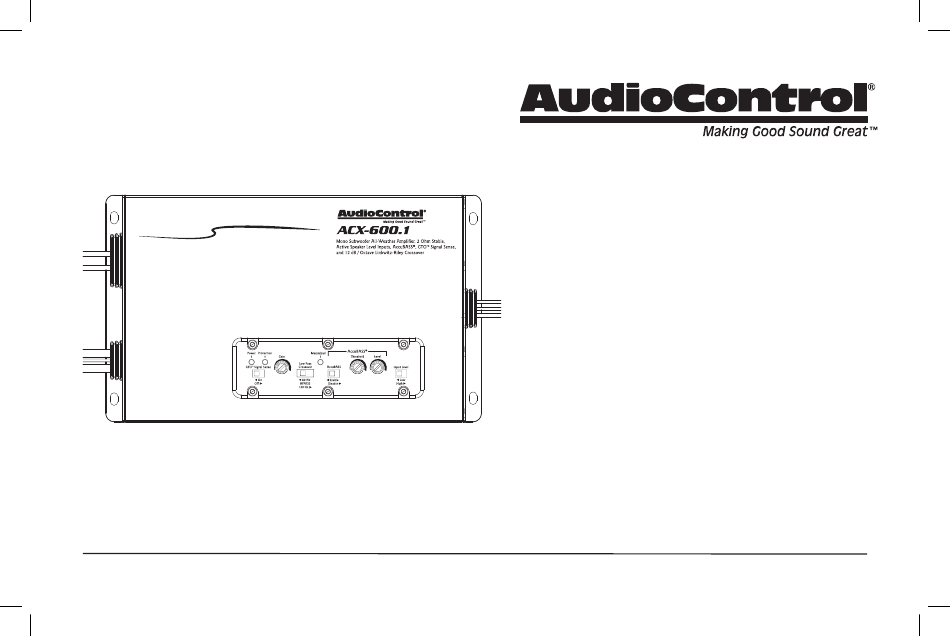

  • Page 1 • 2 RCA Inputs - switchable for Low and High Level signals • Optional wired ACR-1 Remote Control for Output Level • All-weather rated - IPX6 rated! • Cage-free op-amps ACX-600.1 COMPACT HIGH POWER ALL-WEATHER MONO AMPLIFIER Quick Start Guide...
  • Page 2: Important Safety Instructions

    ACX-600.1 Important Safety Instructions Read these instructions. 14. Fuses shall be replaced only with the correct type and fuse value, and only when the apparatus is powered off. Keep these instructions. 15. Exposure to high sound pressure levels may lead to permanent hearing Heed all warnings.
  • Page 3 Connections & Control Panel Features 1. Speaker Output – Connect these wires to your subwoofer using quality insulated wiring of the recommended wire gauge, such as the included water resistant harness. Speaker wire may then be wire gauge 8 or thicker. crimped or soldered onto the bare leads.
  • Page 4 RCA inputs and try again. If error clears, examine your speaker, speaker wires, and RCAs for possible causes of short. If 5. GTO ™ Signal Sense – In the ON position, the ACX-600.1 amplifier the issue still persists after removing the speakers/RCAs, best to will turn on gracefully when it detects an incoming audio signal, call the lonely folks in tech support.
  • Page 5 9. Gain Maximized LED – This LED indicates when the ACX-600.1 amplifier gain has been maximized for optimum performance. With your source unit turned up to 75%, use your gain controls to dial in the output by watching for this LED to shine, then back it **Pro tip - if using speaker- level/high-level inputs, you’ll...
  • Page 6: Quick Start

    ACX-600.1 Quick Start Here are a few general steps to get your ACX-600.1 amplifier up and 8. Connect the Ground wire of the power wiring harness assembly running: to a ground source such as the negative battery terminal, vehicle chassis or other ground source, using the same wire gauge as 1.
  • Page 7: Power Connections

    Power Connections In this example, the head unit has a +12V trigger output that is con- nected to the ACX-600.1 remote input terminal. When the head unit is turned on, it will turn on the ACX-600.1 amplifier. Alternatively, the GTO™ Signal Sense feature can be used to gently turn on the ACX-600.1 amplifier when an audio input signal is detect-...
  • Page 8 System #1: Using Speaker-Level Inputs & GTO Signal Sense Turn On ™ 2 Ohm minimum load Speaker-Level Output (80 Hz and down) To Battery ACR-1 (optional) Subwoofer ACR-1 Cable (included with ACX-600.1) Source Unit Speaker-Level Signal Wires Quick Start Guide...
  • Page 9: Cover Plate Removal

    Cover Plate Removal The cover plate must be removed to gain access to the controls, and then sealed again to protect the controls against moisture and debris. Removal Procedure 1. Locate the top six hex screws that hold down the sealed top cover.
  • Page 10: Specifications

    ACX-600.1 Specifications All specifications are measured at 14.4 VDC (standard automotive voltage). As technology advances, AudioControl reserves the right to continuously change our specifications, like our Pacific Northwest weather, although we are working on changing that as well. The ACX-600.1 Amplifier Warranty For details of the limited warranty for your ACX-600.1, please visit the...
  • Page 11 Complimentary Notes page (filled with horizontal lines that may be used for notes, sonnets, poems, shopping lists, and complex crossover equations)
  • Page 12 An Extra-generous, Second Complimentary Notes page ACX-600.1 Quick Start Guide PN 915-032-0 Rev C...
