A1100.5
A1100.5 TOP SS ARTWORK - 2 PASS LASER ETCH
PASS 1: LASER ETCH/COLOR REMOVAL - RAW ALUMINUM
A1100.5
A1100.5 FRONT SS ARTWORK - 1 PASS
PASS 1: DARK LASER MARKING/ANNEALING - DARK GRAY
Features
• 4 x 90 W @ 4 Ohms + 1 x 400 W @ 4 Ohms
• 4 x 125 W @ 2 Ohms + 1 x 600 W @ 2 Ohms
• 6 RCA Line Inputs
• GTO
Signal Sense
TM
• Audio Sense
• Independent -12 dB Linkwitz-Riley Crossovers
• Optional wired ACR-1 Remote Control for Subwoofer Level
• Subsonic Filter -24 dB Linkwitz-Riley
• ParaBASS® Low Frequency Contouring
• Valet Mode Enabled
• LC Direct High Level Input
• Start-stop compliant
• EV compliant up to 17V
• Sleek Chassis Design
• Power House
A1100.5

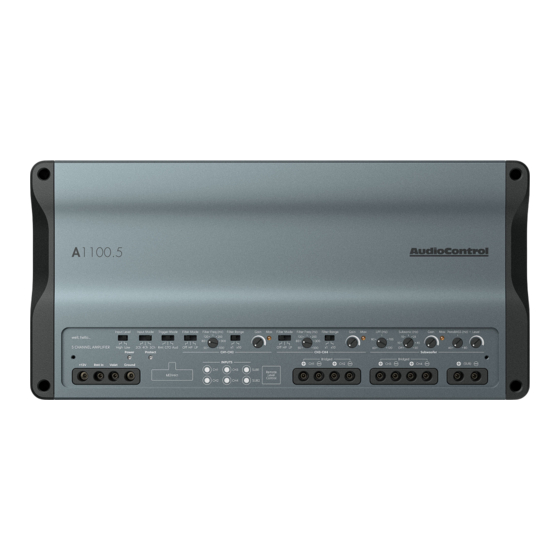

Five Channel Amplifier
Quick Start Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AudioControl A1100.5
Summary of Contents for AudioControl A1100.5
- Page 1 • Optional wired ACR-1 Remote Control for Subwoofer Level • Subsonic Filter -24 dB Linkwitz-Riley • ParaBASS® Low Frequency Contouring A1100.5 TOP SS ARTWORK - 2 PASS LASER ETCH • Valet Mode Enabled PASS 1: LASER ETCH/COLOR REMOVAL - RAW ALUMINUM •...
-
Page 2: Important Safety Instructions
A1100.5 Important Safety Instructions 14. This apparatus shall not be exposed to dripping or splashing, and no Read these instructions. object filled with liquids, shall be placed on the apparatus. Keep these instructions. 15. Fuses inside the fuse holder at the battery shall be replaced only with the Heed all warnings. -
Page 3: Connection Panel Features
12V remote trigger output of some head units. When the head ACR-1 remote level control. unit is turned on, then the A1100.5 will turn on. 8. Speaker-Level Output Terminals – These screw terminals 3. Valet Mode Connection - This screw terminal connects to an op- connect with speaker wire to your loudspeakers. - Page 4 A1100.5 Top Cover Removal The top cover must be removed to gain access to the controls, and then put back on again to protect the controls from dust bunnies. Removal Procedure 1. Locate the two screws holding the top cover on the amplifier.
-
Page 5: Control Panel Features

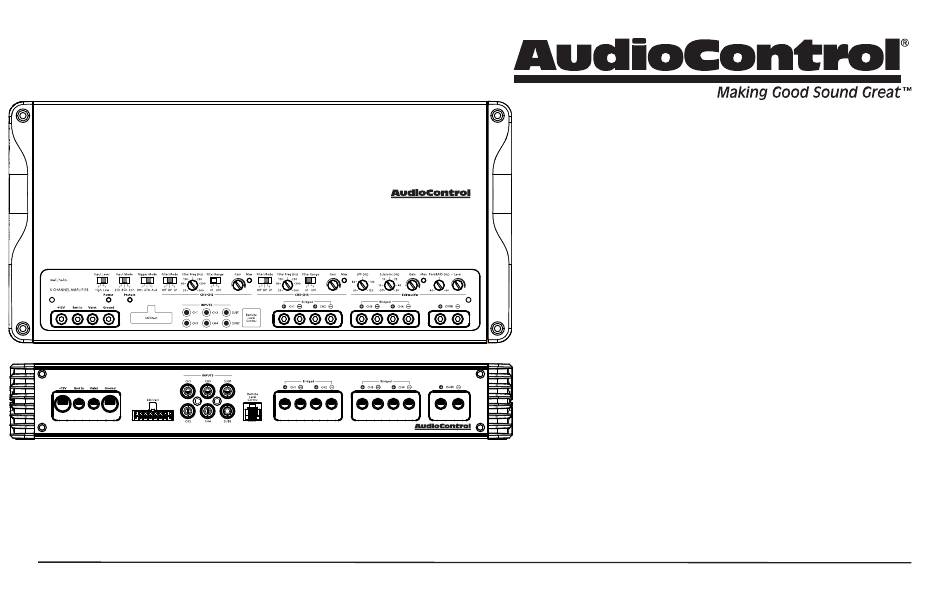

Control Panel Features A1100.5 A1100.5 TOP SS ARTWORK - 2 PASS LASER ETCH PASS 1: LASER ETCH/COLOR REMOVAL - RAW ALUMINUM 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29... - Page 6 16. Filter Freq (Hz) – The crossover adjustment pot selects the fre- are present/available. Signal will be routed from each input to its quencies that output channels 1&2 of your A1100.5 will play. Use corresponding output to adjust the cutoff frequency depending on what speakers are connected to outputs 1&2.
- Page 7 A1100.5 17. Filter Range x1 / x10 When set to x1, the selected crossover crossover frequency to play through output channels 1&2. This frequency is applied exactly as chosen. (i.e. If 80hz was chosen prevents larger speakers from playing high frequency signals and switch is set to x1, then 80 Hz will be the crossover point.)
- Page 8 The long-awaited moment when “plethora” is used in a manual The ParaBASS (Hz) knob selects the center frequency, between The plethora of A1100.5 controls allows for a wide variety of in- 40 Hz and 80 Hz. The level knob provides you to 10 dB of boost stallation possibilities.
-
Page 9: Quick Start
A1100.5 Quick Start Here are a few general steps to get your A1100.5 amplifier up and 8. Connect the Ground terminal of the unit to the chassis of the ve- running: hicle, using 4 AWG wire. Connect the +12V wire using the same gauge wire as the ground wire. - Page 10 In this example, the GTO signal sense feature can be used to gently connected to the A1100.5 remote input terminal. When the head turn on the A1100.5 amplifier when an audio input signal is detect- unit is turned on, it will turn on the A1100.5 amplifier.
- Page 11 A1100.5 System #1: Adding Front/Rear Speakers + Sub to a Factory Radio Front Speakers A1100.5 ACR-1 Factory (Optional) Radio Rear Speaker-level output Front Speaker-level output Rear Speakers Notes: The +12V Power and Ground connections are not shown. • Input Level: Input level is set to High.
- Page 12 System #2: Adding Front/Rear Speakers + Sub to an Aftermarket Radio Front Speakers A1100.5 ACR-1 Aftermarket (Optional) Subwoofer Low-level output Radio Rear Low-level output Front Low-level output Rear Speakers Notes: The +12V Power and Ground connections are not shown • Input Level: Input level is set to Low.
- Page 13 A1100.5 System #3: AudioControl 5 Channel System ACR-1 (Optional) A1100.5 Aftermarket Radio Subwoofer Low-level output Rear Low-level output Front Low-level output Notes: Aftermarket Radio connected, using Line-level connection. The +12V Power and Ground connection not shown. • Input level is set to Low.
- Page 14 Head Unit On/Off Switch Not Included Remote Amplifier +12V Trigger A1100.5 +12V Ground Notes: Connect a wire to the Valet terminal on the amplifier. Connect the other end to a On/Off switch. (Any 2 prong On/Off switch should work) Connect the other open switch prong to chassis ground.
-
Page 15: Specifications
Specifications All specifications are measured at 14.4 VDC (standard automotive voltage). As technology advances, AudioControl reserves the right to continuously change our specifica- tions, like our Pacific Northwest weather, although we are working on a surround-sound umbrella as well. A1100.5 Multi-Channel Amplifier Power Output. - Page 16 Months of waiting around. Well, fear no more. This warranty is designed to dealer installs your AudioControl product, they also must use all Stinger make you rave about AudioControl. It’s a warranty that looks out for you and power management and the warranty is extended to (3) years.
