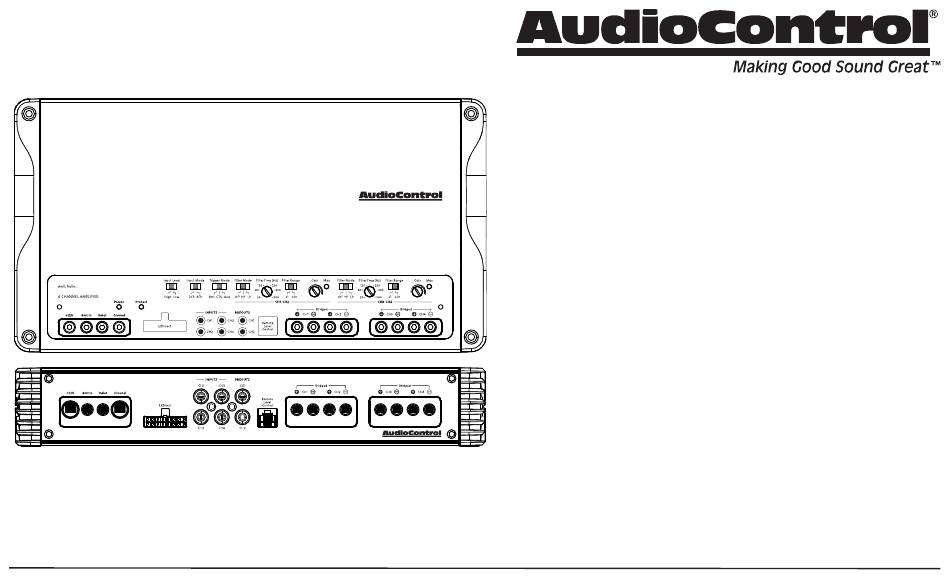

Features
• 4 x 100 W @ 4 Ohms, 150 W @ 2 Ohms, 2 x 300 W @ 4 Ohms bridged
• 4 RCA Line Inputs
• 2 RCA Line Outputs
• GTO
Signal Sense
TM
• Audio Sense
• Independent -12 dB Linkwitz-Riley Crossovers
• Optional wired ACR-1 Remote Control for Subwoofer Level
• Valet Mode Enabled
• LC Direct High Level Input
• Start-stop compliant
• EV compliant up to 17V
• Sleek Chassis Design
• Tasty

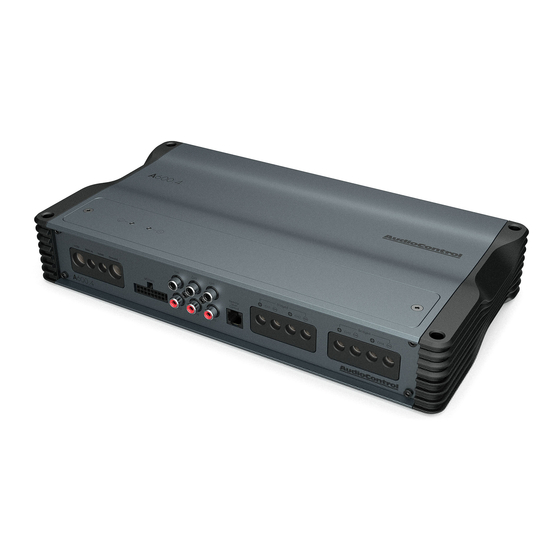

A600.4
Four Channel Amplifier
Quick Start Guide
Advertisement
Table of Contents
Related Manuals for AudioControl A600.4
Summary of Contents for AudioControl A600.4
- Page 1 Features • 4 x 100 W @ 4 Ohms, 150 W @ 2 Ohms, 2 x 300 W @ 4 Ohms bridged • 4 RCA Line Inputs • 2 RCA Line Outputs A600.4 • GTO Signal Sense • Audio Sense •...
-
Page 2: Important Safety Instructions
A600.4 Important Safety Instructions 14. This apparatus shall not be exposed to dripping or splashing, and no Read these instructions. object filled with liquids, shall be placed on the apparatus. Keep these instructions. 15. Fuses shall be replaced only with the correct type and fuse value, and Heed all warnings. -
Page 3: Connection Panel Features
12V remote trigger output of some head units. When the head supply signal to additional amplifiers as needed. unit is turned on, then the A600.4 will turn on. 8. Remote Level Control (optional) – This port connects to the 3. - Page 4 A600.4 Top Cover Removal The top cover must be removed to gain access to the controls, and then put back on again to protect the controls from dust bunnies. Removal Procedure 1. Locate the two screws holding the top cover on the amplifier.
-
Page 5: Control Panel Features
A600.4 Control Panel Features A600.4 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Quick Start Guide... - Page 6 16. Filter Freq (Hz) – The crossover adjustment selects the frequen- to all four output channels. Select 4ch when all four channels of cies that output channels 1&2 of your A600.4 will play. Use to input are present/available. Signal will be routed from each input adjust the cutoff frequency depending on what speakers are to its corresponding output.
- Page 7 21. Filter Freq (Hz) – The crossover adjustment selects the frequen- 18. Gain – Use this dial to match the source unit’s output voltage cies that output channels 3&4 of your A600.4 will play. Use to with the inputs of amplifier channels 1 & 2. Remember, this is adjust the cutoff frequency depending on what speakers are NOT a volume knob.
- Page 8 The optional AudioControl ACR-1 dash control is a remote level control for your A600.4 amplifier. It may be mounted under the The plethora of A600.4 controls allows for a wide variety of instal- dash using its own enclosure, or through a custom hole in the lation possibilities.
-
Page 9: Quick Start
A600.4 Quick Start Here are a few general steps to get your A600.4 amplifier up and 8. Connect the Ground terminal of the unit to the chassis of the ve- hicle, using 4 AWG wire. Connect the +12V wire using the same running: gauge wire as the ground wire. - Page 10 In this example, the GTO signal sense feature can be used to gently connected to the A600.4 remote input terminal. When the head unit turn on the A600.4 amplifier when an audio input signal is detected is turned on, it will turn on the A600.4 amplifier.
- Page 11 A600.4 System #1: Adding Front/Rear Speakers + Sub to a Factory Radio Front left/right Speaker-level output A600.4 Factory Radio Rear Speaker-level output Front Low Speaker-level output Rear left/right Notes: Speaker-level output The +12V Power and Ground connections are not shown.
- Page 12 1,2,3,4 and switch the input to Low. • Filter range channel 3/4 is set to x1. Connect the amp remote wire and switch the trigger mode to Rmt. • The A600.4 turns on when an audio signal is present on input 1. (High level only)
- Page 13 • Filter range channel 3/4 is set to x1. channel 1,2,3,4 and switch the input to Low. • The A600.4 turns on when an audio signal is present on Connect the amp remote wire and switch the trigger mode to Rmt.
- Page 14 Valet Mode Connection Head Unit On/Off Switch Not Included Remote Amplifier +12V Trigger +12V Ground Notes: Connect a wire to the Valet terminal on the amplifier. Connect the other end to a On/Off switch. (Any 2 prong On/Off switch should work) Connect the other open switch prong to chassis ground.
-
Page 15: Specifications
Specifications All specifications are measured at 14.4 VDC (standard automotive voltage). As technology advances, AudioControl reserves the right to continuously change our specifica- tions, like our Pacific Northwest weather, although we are working on a surround-sound umbrella as well. A600.4 Multi-Channel Amplifier Power Output. - Page 16 Months of waiting around. Well, fear no more. This warranty is designed to dealer installs your AudioControl product, they also must use all Stinger make you rave about AudioControl. It’s a warranty that looks out for you and power management and the warranty is extended to (3) years.
