FortiGate-5140 shelf alarm panel

Shelf alarm panel telco alarms

10
Table 3: FortiGate-5140 shelf alarm panel connectors
Connector Type Speed
SERIAL 1 RJ-45 115,200
bps
SERIAL 2
ALARM micro N/A
DB-15
male
The shelf alarm panel telco alarm interface relay circuits are capable of carrying
60 VDC or 1 A with a max. rating of 30 VA. The shelf alarm panel accepts timed
pulse inputs for clearing minor and major alarm states. Reset is accomplished by
asserting a voltage differential from 3.3 V to 48 V for between 200 and 300 ms.
The acceptance voltage range is from 0 to 48 VDC continuous (handles up to 60
VDC at a 50% duty cycle). The current drawn by a reset input does not exceed 12
mA.
The alarm LED reset button activates the alarm cutoff (ACO) state for major,
minor, and user-defined alarms. You cannot reset critical alarms with the alarm
LED reset button.
When the ACO state is activated, active alarm LEDs blink and all of the alarm
relays are deactivated. The alarm reset button activates the ACO state but does
not clear the alarm completely.

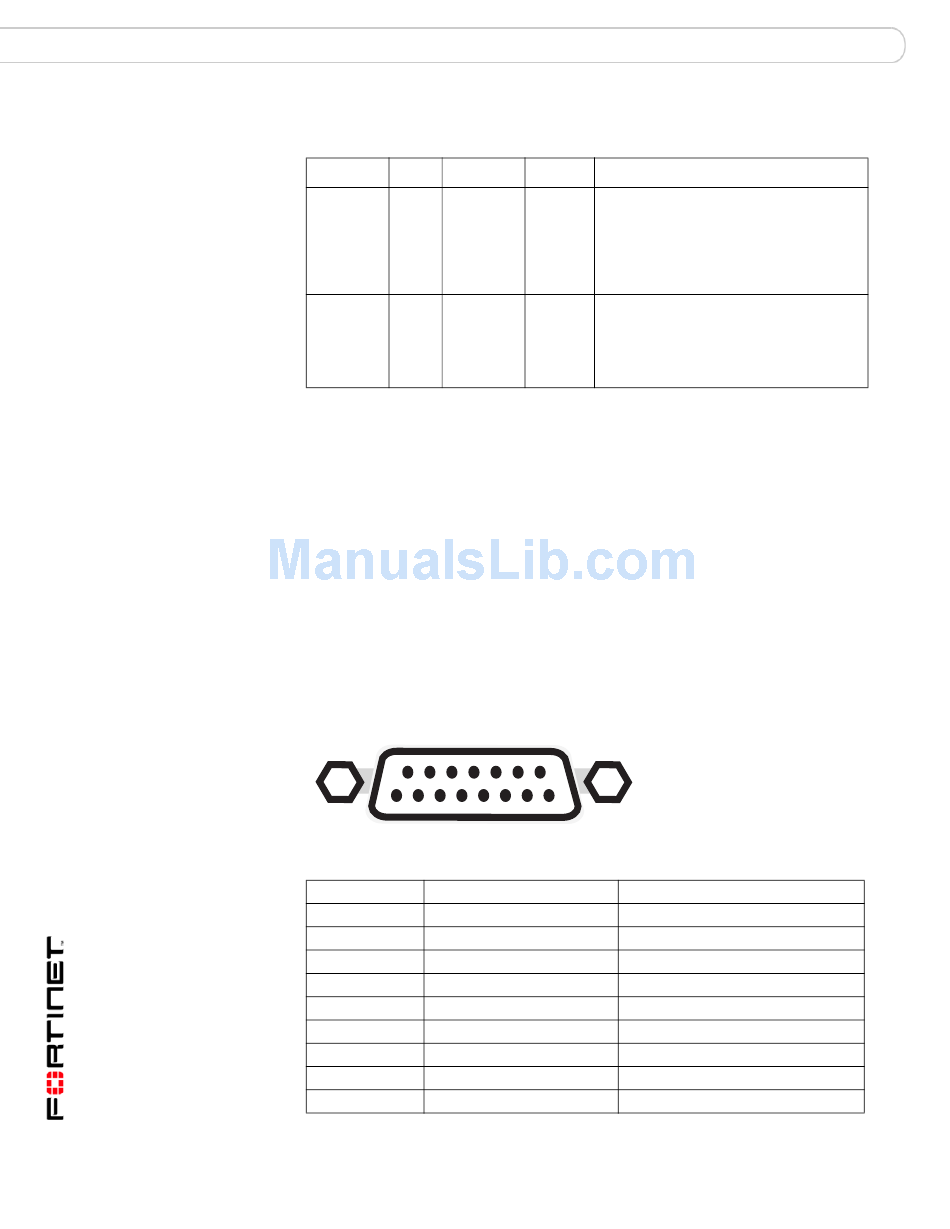

Figure 4: The telco alarm connector (DB-15 male)
15
8
Table 4: Telco alarm connector pin assignment
Pin Name
1 AMIR+
2 AMIR-
3 AMAR+
4 AMAR-
5 ACNO
6 ACNC
7 ACCOM
8 AMINO
9 AMINC
Protocol Description
RS-232 Serial connection to the command line
serial interface of each shelf manager. Serial 1
connects to the primary (upper) shelf
manager. Serial 2 connects to the
secondary (lower) shelf manager. The
serial default configuration is 115,200
baud, no parity, 8 data bits, and 1 stop bit.
Telco The external dry relay Telco alarm
Form-c interface (48VDC) provides Telco form-c
relay connections for minor, major and
critical power faults. The cable required to
connect to the alarm interface is not
supplied by Fortinet.
9
1
Description
MinorReset+
MinorReset-
MajorReset+
MajorReset-
CriticalAlarm - NO
CriticalAlarm - NC
CriticalAlarm - COM
MinorAlarm -NO
MinorAlarm - NC
