Power connection and configuration Connecting the FortiGate-5140 chassis to AC power using the FortiGate-5053 power converter tray
Connecting a FortiGate-5140 chassis to the FortiGate-5053 power converter
tray
!
FortiGate-5140 Chassis Guide
01-30000-0396-20070201
To use a FortiGate-5053 power converter tray with the FortiGate-5140 chassis
you need to make DC power connections between the FortiGate-5140 chassis
and the FortiGate-5053 power converter tray. You also need to the connect the
FortiGate-5140 chassis to data center ground.
Each FortiGate-5140 PEM includes 4 connectors that connect power to 4 different
power zones in the FortiGate-5140 chassis. Each power zone supplies power to
different FortiGate-5140 slots and cooling fan trays. You should always connect all
4 power zones.
To connect a FortiGate-5140 PEM to a FortiGate-5053 power converter tray
The following procedure describes how to connect power to PEM A. You can
repeat this procedure to connect PEM B.
You need the following tools and equipment to connect a FortiGate-5140 PEM to
a FortiGate-5053 power converter tray:
•
A number 2 Phillips screwdriver.
•
An electrostatic discharge (ESD) preventive wrist or ankle strap with
connection cord.
•
Four black AWG-14 stranded wires with terminal lugs attached and labelled
-48V
•
Four red AWG-14 stranded wires with terminal lugs attached and labelled RTN
•
A FortiGate-5053 power converter tray containing two or three FortiGate-5140
power supplies and mounted in a rack near the FortiGate-5140 chassis.
Caution: The FortiGate-5053 power convertor tray should not be connected to AC power
until specified in the following procedure.

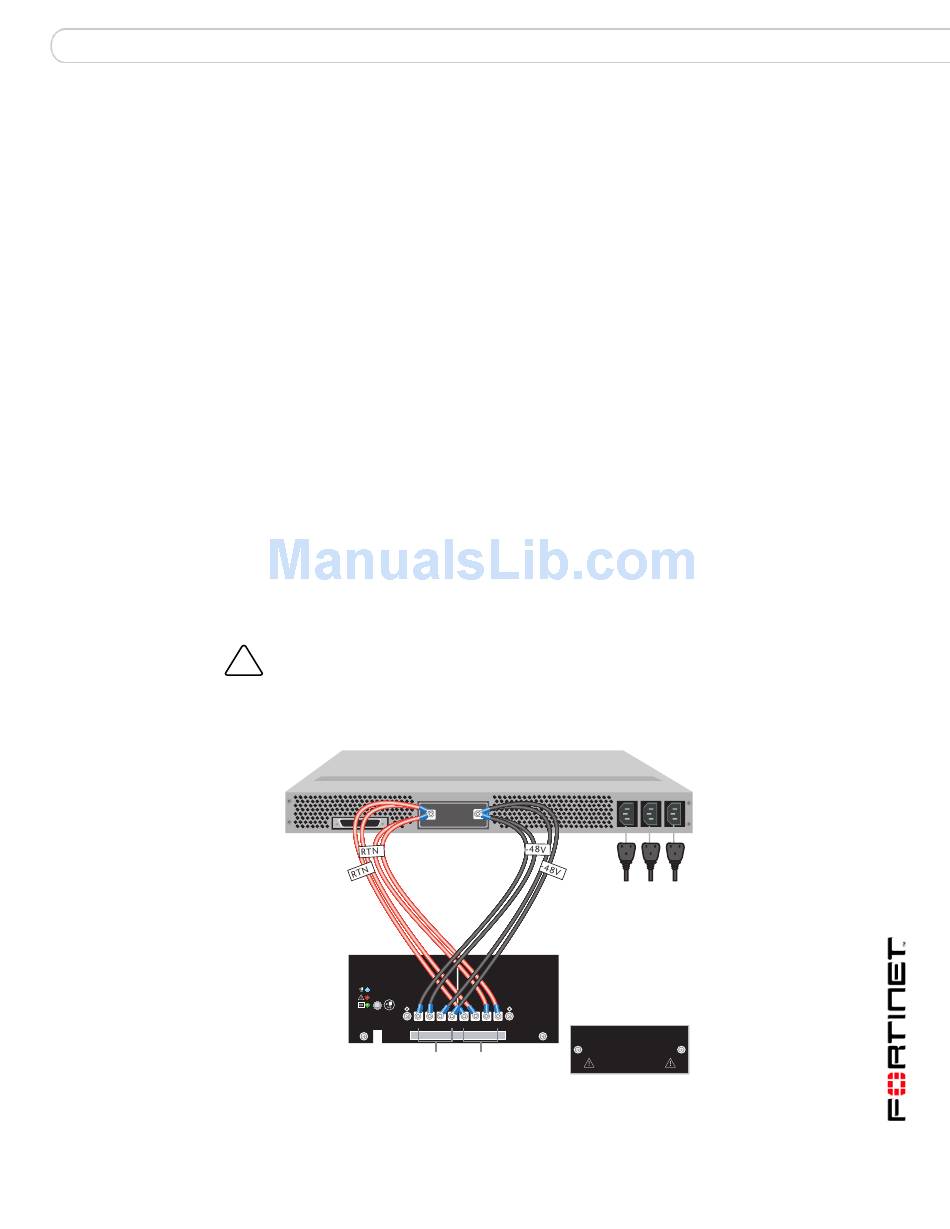

Figure 15: Connecting a FortiGate-5140 PEM to a FortiGate-5053 power converter
tray
RTN(RED) -48V(BLACK)
V+
V+
(RTN)
(RED)
Red RTN to
FortiGate-5053
RTN (RED)
-48V/-60 VDC nom
4
3
2
1
4
3
2
1
PEM
-48V/-60 VDC
terminal strip
connectors
1, 2, 3, 4
100-240VAC 1
V-
V-
-48V
(BLACK)
AC in
Black -48V/-60 VDC
to FortiGate-5053
-48V(BLACK)
RETURN
4
3
2
1
4
3
2
1
TERMINAL BLOCK COVER
RTN (positive)
Remove terminal block cover and
decable before removing PEM.
terminal strip
connectors
1, 2, 3, 4
2
3
23
