Power connection and configuration Connecting the FortiGate-5140 chassis to AC power using the FortiGate-5053 power converter tray
FortiGate-5140 Chassis Guide
01-30000-0396-20070201

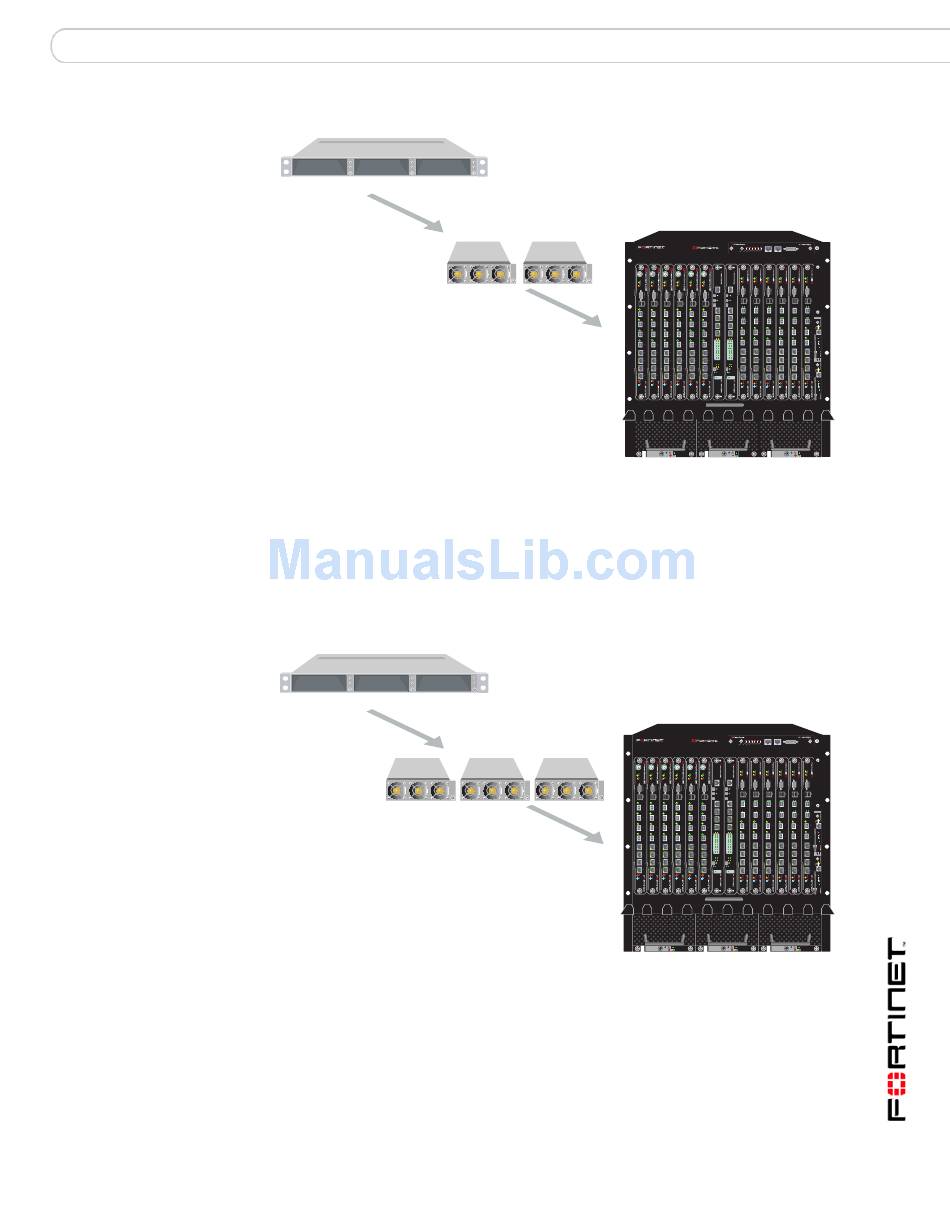

Figure 11: Non-redundant power for all FortiGate-5140 chassis slots
Slot 3
Slot 2
Slot 1
2 FortiGate-5140
power supplies
2 x 1200W = 2400W
Redundant FortiGate-5140 power supplies
You can supply redundant power to a FortiGate-5140 chassis by adding a third
FortiGate-5140 power supply to the FortiGate-5053 power converter tray
(see
Figure
12). If one of the FortiGate-5140 power supplies in the FortiGate-5053
power converter tray fails, the third power supply takes its place without a power
interruption.
Figure 12: 2 + 1 redundant FortiGate-5140 power supplies
Slot 3
Slot 2
Slot 1
3 FortiGate-5140
power supplies
2 x 1200W = 2400W
2 + 1 redundancy
Redundant FortiGate-5053 power converter trays
A single FortiGate-5053 power converter tray is usually only connected to one
FortiGate-5140 PEM. If this PEM or FortiGate-5053 power converter tray fails or is
disconnected the FortiGate-5140 chassis will lose power.
1 FortiGate-5053
power convertor tray
13
11
9
1 FortiGate-5140
chassis
0
FA N T R AY
1 FortiGate-5053
power convertor tray
13
11
9
1 FortiGate-5140
chassis
0
FA N TR AY
5140SAP
