Operating instructions
DFPQ5 | DFPQ6 | DFPQ9 | DFPQ12
Range hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DFPQ5 and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG DFPQ5

Summary of Contents for V-ZUG DFPQ5

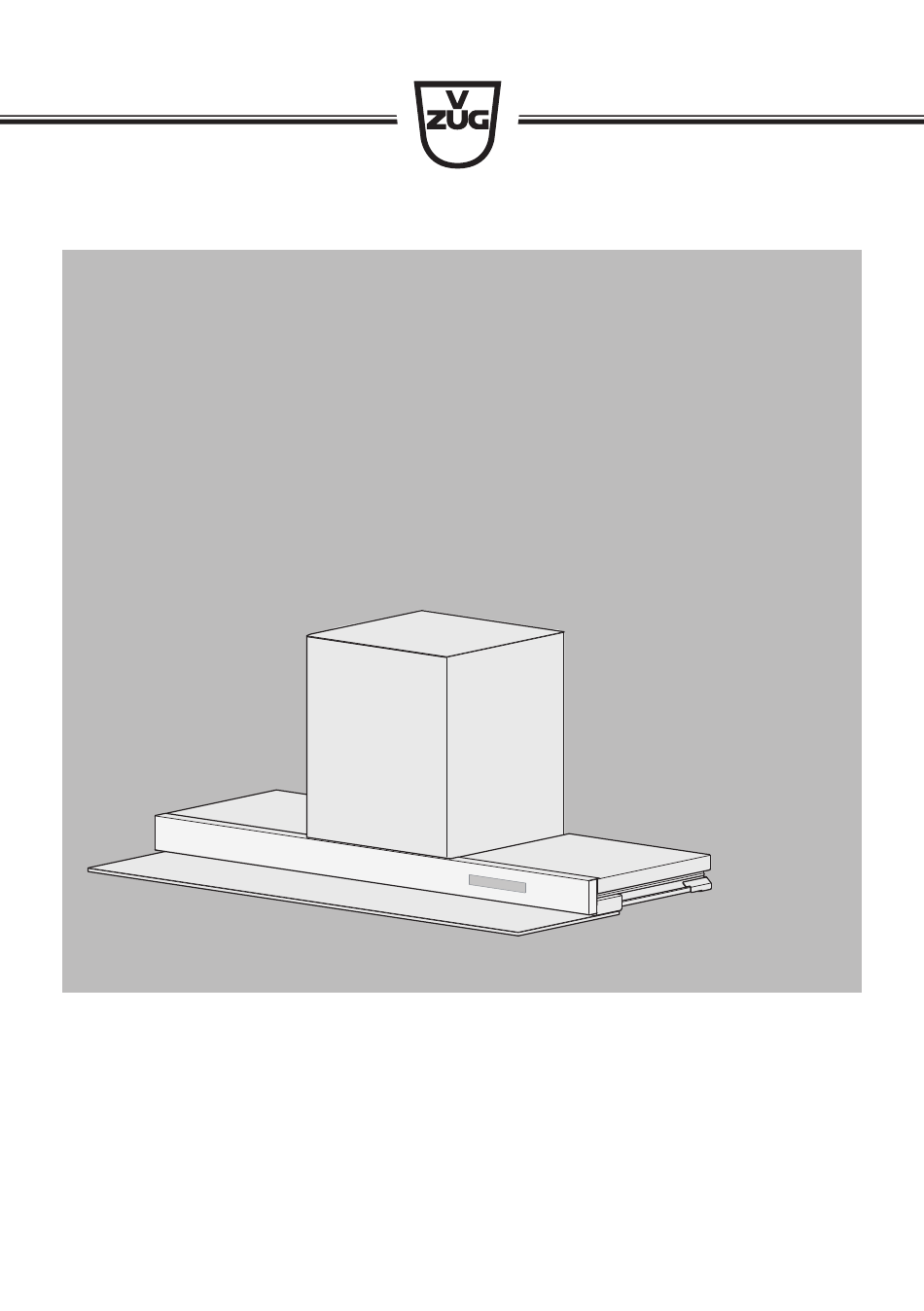

  • Page 1 Operating instructions DFPQ5 | DFPQ6 | DFPQ9 | DFPQ12 Range hood...
  • Page 2 The product family (model number) corresponds to the first alphanumerics on the identi- fication plate. These operating instructions apply to: Type Product family Size system DFPQ5 61039 DFPQ6 61040 DFPQ9 61041 DFPQ12 61042 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2018...

  • Page 3: Table Of Contents

    Contents Safety precautions  4 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 5 Appliance installation .......... 6 Instructions for use.......... 6 Appliance description  8 Introduction .............  8 Extraction mode .............  8 Recirculation mode with activated charcoal filter  8 Features..............

  • Page 4: Safety Precautions

    Safety precautions Symbols used Denotes important safety precau- ▪ This appliance can be used tions. Failure to observe said precautions by children aged 8 and above can result in injury or in damage to and by persons with reduced the appliance or fittings! physical, sensory or mental Information and precautions that capabilities, or lack of experi-...

  • Page 5: Appliance-Specific Safety Precautions

    1 Safety precautions turer or its Customer Services disconnected from the mains or a similarly qualified person power supply to avoid pos- in order to avoid hazard. sible electric shock. ▪ When replacing a light bulb, Appliance-specific safety the maximum wattage rating precautions of replaceable light bulbs ▪...

  • Page 6: Appliance Installation

    1 Safety precautions Appliance installation Instructions for use Before using for the first time ▪ The appliance must be installed and connected to the electricity supply in ▪ The appliance must be installed by accordance with the separate installa- qualified personnel only. tion instructions.
  • Page 7 1 Safety precautions ▪ Avoid a cross-current of air, which ▪ When carrying out maintenance work could blow the cooking vapours over on the appliance, including replacing the cooking area. light bulbs, cut off the electricity supply ▪ If other appliances – fired by gas or to the appliance: remove the screw fuse other fuels –...

  • Page 8: Appliance Description

    Appliance description Introduction The appliance is designed for use in the home for extracting cooking odours from above a cooking area and can be used in the extraction or recirculation mode. Extraction mode A fan extracts cooking fumes and smells from above the cooking surface. The metal grease filters clean the extracted air, which is then passed through a connecting pipe fit- ted with an integrated non-return valve and through the air duct to the outside.

  • Page 9: Operating And Display Elements

    2 Appliance description Operating and display elements Buttons Switch appliance on/off Select power level 1–3; activate intensive level Switch illumination on/off; set colour temperature Activate after-running time Display symbols Wipe protection After-running time Power level 1 Power level 2 Power level 3 Intensive level (flashing) Saturation indicator for grease filter Saturation indicator for activated charcoal filter (recirculation air only)

  • Page 10: Operating The Appliance

    3 Operating the appliance Operating the appliance Using for the first time Appliance configuration The model can be used to extract or recirculate air. The appliance is set up by default for use in the recirculation mode. The cleaning interval for the activated charcoal filter is 180 operating hours.

  • Page 11: Switching The Appliance On/Off

    3 Operating the appliance Cleaning interval for activated charcoal filter Cooking intensity Saturation indicator after Flashing display symbol Less frequent and/or light 240 hours cooking aromas Standard (factory default set- 180 hours ting) Frequent and/or strong 120 hours cooking aromas Switching the appliance on/off ▸...

  • Page 12: Illumination

    3 Operating the appliance Select one of four power levels by pushing the glass canopy in and out at about 1- second intervals. Make sure to push the glass canopy as far back as it will go until it hits the mechanical stop. Illumination ▸...

  • Page 13: Wipe Protection

    3 Operating the appliance Wipe protection The wipe protection function temporarily deactivates the keypad / control panel and is useful for quickly cleaning the operating elements. ▸ Switch the appliance and the illumination off. ▸ Hold the button depressed for 5 seconds. –...

  • Page 14: Care And Maintenance

    4 Care and maintenance Care and maintenance Cleaning the housing Make sure no water gets inside the appliance. If water gets into the appliance, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as they can damage the surface.

  • Page 15: Long-Life-Plus Activated Charcoal Filter

    4 Care and maintenance ▸ Put the metal grease filters back. ▸ Reset saturation indicator alarm (see page 16). Cleaning may cause the metal grease filters to become slightly discoloured. How- ever, this will not affect the functioning of the filters in any way. Long-life-Plus activated charcoal filter The long-life-Plus activated charcoal filter should be cleaned and reactivated every 3 to 6 months and whenever the saturation indicator alarm is triggered.

  • Page 16: Reset Saturation Indicator Alarm

    5 Trouble-shooting Reset saturation indicator alarm Reset the saturation indicator alarm for both the metal grease filter and the activated charcoal filter after cleaning/replacing. ▸ With the appliance switched off, hold the button depressed for 5 seconds. – If reset correctly, the symbols are no longer displayed.

  • Page 17: Accessories And Spare Parts

    6 Accessories and spare parts Accessories and spare parts Please give product family of the appliance and exact designation of the accessory or spare part when ordering parts. Metal grease filter (example is shown; actual filter depends on model) Long-life-Plus activated charcoal filter Remote control Technical data...

  • Page 18: Product Fiche

    7 Technical data Product fiche In accordance with EU Regulation No. 65/2014 and No. 66/2014 Description Abbreviations Unit Value Brand V-ZUG LTD Model identifier 61039-41 / 61042 Annual Energy Consumption kWh/a 31.2 / 32.6 hood Energy Efficiency Index 42.0 / 43.3...

  • Page 19: Disposal

    8 Disposal Nominal power of the lighting system 4 / 6 Average illumination of the lighting 119 / 191 middle system on the cooking surface Sound power level Disposal Packaging Never allow children to play with packaging material due to the danger of injury or suffocation.

  • Page 20: Index

    Index Accessories ............17 Safety precautions After-running time..........12 Appliance installation ........ 6 Appliance configuration........10 Appliance-specific .......... 5 Appliance description ........8 Before using for the first time....... 6 Appliance disposal .......... 19 Correct use ............ 6 Appliance installation ......... 6 General ............. 4 Instructions for use......... 6 Note on use ............. 6 Saturation indicator..........
  • Page 21 Notes...

  • Page 23: Service & Support

    Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
  • Page 24 Saturation indicator for grease filter Saturation indicator for activated charcoal filter (recirculation air only) 1045245-R02 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
