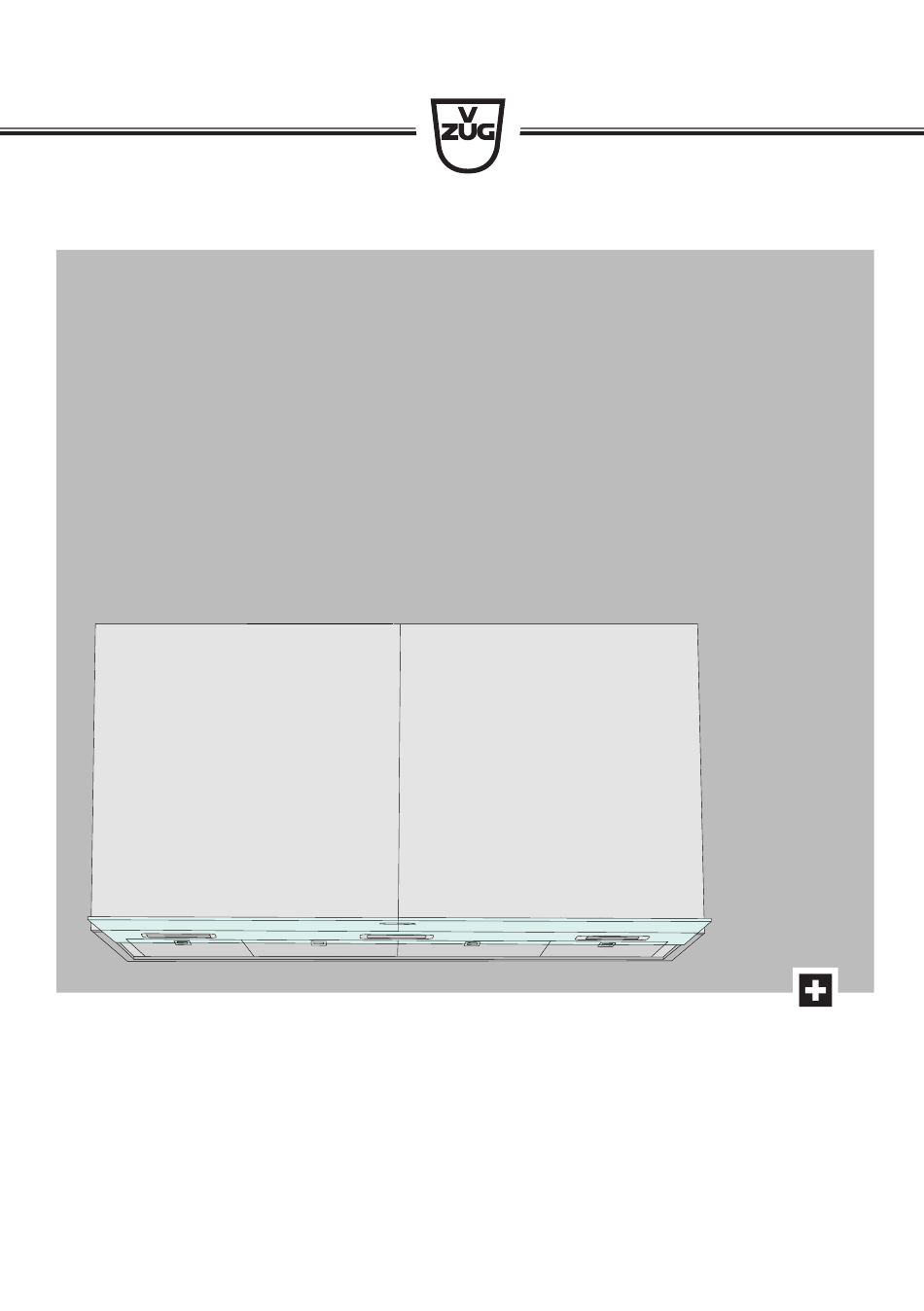

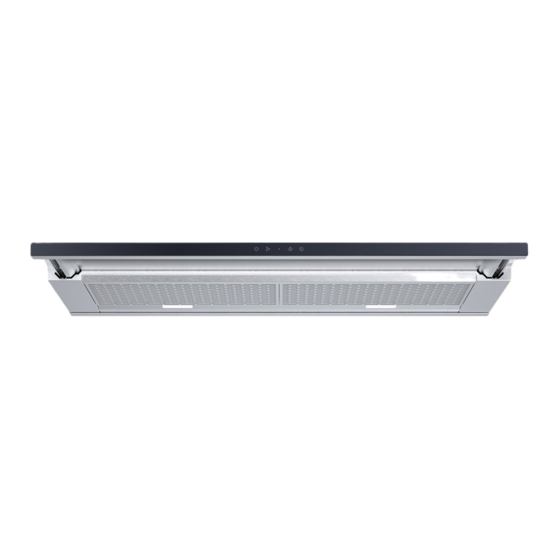

- Page 1 Operating instructions DFPQ Range hood...
- Page 2 These operating instructions apply to: Type Model no. Size system Motor housing no. DFPQ12 61001 H4.2606 (K630000) H4.2607 (K630001) DFPQ9 61002 H4.2608 (K630002) DFPQ6 61003 DFPQ5 61004 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2015...
-
Page 3: Table Of Contents
Contents 1 Safety precautions 4 Symbols used.................... 4 General safety precautions............... 5 Before using for the first time.............. 6 Correct use .................... 6 Children in the home ................. 6 Note on use .................... 7 2 Disposal 9 3 Your appliance 10 Appliance description................ 10 Extraction model.................. 10 Recirculation model................. 10 Equipment.................... 10 Construction .................... 11 Operating and display elements ............ 12... -
Page 4: Safety Precautions
Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in damage to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions ►... -
Page 5: General Safety Precautions
1 Safety precautions General safety precautions • Read the operating instructions before using the appliance for the first time! • This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental cap- abilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved. -
Page 6: Before Using For The First Time
1 Safety precautions Before using for the first time • The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/ electrician carry out the necessary work. • Dispose of the packaging material in accordance with local regulations. Correct use •... -
Page 7: Note On Use
1 Safety precautions Note on use • If the appliance is visibly damaged, do not use it. Contact Customer Ser- vices. • If the appliance is not operating properly, disconnect it from the power sup- ply immediately. • If the mains cable of the appliance is damaged, it must be replaced by Cus- tomer Services in order to avoid hazard. - Page 8 1 Safety precautions • When carrying out maintenance work on the appliance, including replacing the light bulb, cut off the electricity supply to the appliance (remove the screw fuse from the holder or switch the circuit breaker off, or disconnect from the mains supply).
-
Page 9: Disposal
Disposal Packaging • All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection • Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety •... -
Page 10: Your Appliance
Your appliance Appliance description The appliance is designed for use in the home for extracting cooking odours from above a cooking area. This particular model can be used to extract or recirculate air. Extraction model The integrated fan extracts cooking fumes and smells from above the cooking surface. -
Page 11: Construction
3 Your appliance • The intensive level is used for short bursts of intensive extraction of cooking fumes and smells, e.g. when searing meat. The intensive level runs for 5 minutes. Construction 1 Operating elements 2 Grease filter 3 Illumination... -
Page 12: Operating And Display Elements
3 Your appliance Operating and display elements Buttons ON/OFF button Illumination ON/OFF Power level selection Timer Displays Power level 1 Power level 2 Power level 3 • Flashing: Intensive level Wipe protection • Illuminated: Wipe protection activated Timer • Illuminated: Timer activated Saturation indicator for grease filters •... -
Page 13: Operating The Appliance
Operating the appliance Using for the first time Configuring the appliance The model can be used to extract or recirculate air. The appliance is set up as a recirculation hood with 5 kg of activated charcoal ex-factory. With this set- ting, the service life of the activated charcoal filter is 1,200 operating hours. - Page 14 4 Operating the appliance Settings options for the saturation indicator Amount of activ- Cooking intensity Operating Power level ated charcoal hours display 5 kg Standard, for not overly fre- 1,200 h quent and/or pungent cooking 5 kg For more frequent and/or more 700 h pungent cooking 2.5 kg...
-
Page 15: Operation
4 Operating the appliance Operation Switching the appliance on ► Pull the deflector plate out. The appliance is most effective when the deflector plate is fully pulled out. ► Pressing the button switches the appliance on at power level 1. ►... -
Page 16: After-Running Time
4 Operating the appliance After-running time ► Switch the appliance on. ► Press the button to select the desired power level. ► Press the button to activate the after-running time function. With the after-running time function, the appliance keeps running according to the following table and then switches off automatically. -
Page 17: Wipe Protection
4 Operating the appliance Saturation indicator for grease filters display flashes after 20 operating hours. The saturation level has been reached and the grease filters must be cleaned. Saturation indicator for the activated charcoal filters display illuminates after 1,200, 700 or 400 operating hours, depending on the setting selected. -
Page 18: Care And Maintenance
Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If wa- ter gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as the surface could otherwise be damaged. - Page 19 5 Care and maintenance Removing the grease filters ► Pull the deflector plate completely out and switch the appli- ance off. ► Fold the grip 2 on the grease filter 1 forward. ► Carefully pull the grease filter down and out of the fix- ture.
-
Page 20: Replacing The Activated Charcoal Filters
Spent activated charcoal filters can be disposed of in the household waste. The activated charcoal filters have been developed especially for this appli- ance and can only be ordered from V-ZUG Ltd's Customer Services. The activated charcoal filter consists of:... - Page 21 5 Care and maintenance Activated charcoal filter A Activated charcoal filter B Removing the activated charcoal filters ► Disconnect the appliance from the mains power supply. ► Cover over the hob to protect it from getting damaged. ► Remove and clean the grease filters. ►...
- Page 22 5 Care and maintenance ► Detach the activated charcoal filter A from the metal holder E. ► Clean (see page 19) the metal holder E in a dishwasher or by hand. Inserting the activated charcoal filters ► Insert the activated charcoal filter B from the front and lay straight in the fil- ter holder.
-
Page 23: Replacing The Leds
5 Care and maintenance ► With the appliance switched off, depress the button for 5 seconds to re- set the saturation indicator. – The flashing button goes out. Replacing the LEDs For safety reasons, the LEDs must be replaced by our Customer Services. -
Page 24: Trouble-Shooting
Trouble-shooting What to do if ... … the illumination is not working Possible cause Solution • Fuse or automatic circuit ► Change the fuse. breaker for electrical in- ► Reset the automatic circuit breaker. stallations in the home is defective. •... -
Page 25: Accessories And Spare Parts
Accessories and spare parts Please give model number of the appliance and exact description of the ac- cessory or spare part when ordering parts. * Grease filter Activated char- coal filter * When ordering the activated charcoal filter give the length of the motor hous- ing (see page 13). -
Page 26: Technical Data
Technical data Electrical connection ► See identification plate. ► Remove the grease filters. – The identification plate is located on the inside of the appliance. -
Page 27: Index
Index Accessories ..........25 Activated charcoal........13 Replacing .......... 23 Activated charcoal filter......10 Replacing .......... 21 Saturation indicator ..... 13, 14, 17 Model no............2 After-running time ........16 Amount of activated charcoal used ............... 13 Appliance description ......10 Notes............29 Care ............ - Page 28 Technical data........... 26 Type ............... 2 Validity............2 Wipe protection......... 17...
- Page 29 Notes...
-
Page 31: Service & Support
– The identification plate is located on the inside of the appliance. Requesting repairs You can contact your nearest V-ZUG service centre directly and free of charge on our ser- vice hotline – 0800 850 850. When requesting repairs over the phone, we will agree on an appointment for us to visit your site at your earliest convenience. - Page 32 Clean grease filters Saturation indicator for activated charcoal filters • Flashing: Replace activated charcoal filters J61001013-R01 V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
