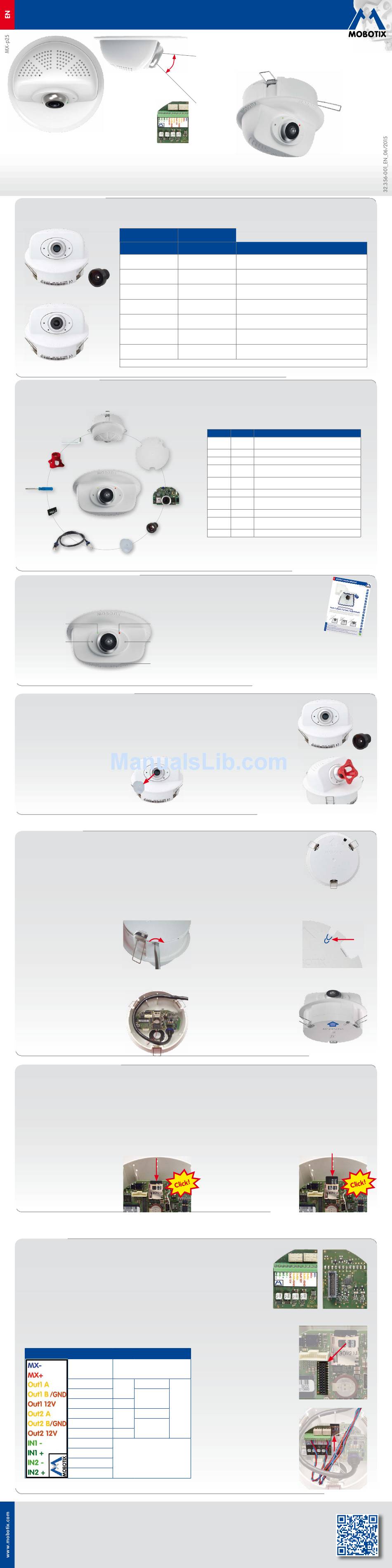

Mobotix P25 Quick Install

Quick Install

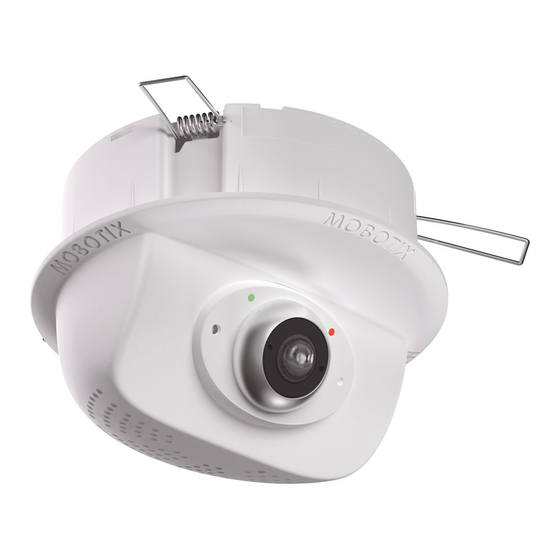

MOBOTIX p25 (Day) with lens MX-B036
MX-p25-D036
• Includes MxAnalytics video analysis tools out-of-the-box
• Recording on internal MicroSD card (SDXC)
• Signal Input/Output and MxBus via optional MX-Bus-IO-Module
• Optional audio version with microphone and speaker
• Sensors for temperature, illumination, shock detection integrated
• Installation is as simple as installing a ceiling spotlight
+
MX-p25-BOD1* + lens
MX-p25-D/N...
1.10
1.9
1.8
1.7
1.6
Power/Status
Microphone
The steps listed below are only required if the p25 has been ordered with separate lens for self-mounting (see «Variants
of the p25» ).
1. Remove the blind cover
Remove the blind cover that protects the
image sensor during shipping from the
lens mount.
The steps listed below are only required if you need to access the inside of the camera housing.
supply to the camera is disconnected before opening the housing!
Caution:
In order to avoid damage from electrostatic discharge, you should touch a grounded device before opening
the housing of the camera (e.g., the blank metal at the back of a computer). This will remove any static electricity that
may have built up.
1. Remove the cover
Remove the back cover of the p25 by insert-
ing a flat-head screwdriver into one of the
slots at the side as shown in the figure and
turning it slightly. Repeat the process for
the two other slots and lift the back cover
from the housing.
2. Follow the procedures
Follow the procedures for the work inside
the housing as described in the sections
listed below:
• ➔ Inserting/Exchanging the SD Card
• ➔ Installing the MX-Bus-IO-Module
All camera models can use the integrated microSD card (SDXC) to record video data. In order to exchange the microSD card, please proceed as outlined
in the following instruction. For information on reliable SD cards, please see the MOBOTIX website www.mobotix.com > Support > MX Media Library >
Planning in the document MicroSD Card Whitelist for MOBOTIX Cameras .
When replacing the SD card, make sure that recording has been deactivated in the browser ( Admin Menu > Storage > Storage on External File Server /
Flash Device ; activate recording again in the same dialog). Follow the instructions in section «Removing/Installing the Back Cover» to access the inside
of the camera and to close it again after inserting the SD card.
1. Remove the SD card
If a microSD card has been installed, gently
press with your finger as indicated by the
arrow until you hear a click . Then release
the SD card. The card is protruding slightly
and can be easily removed.
For the p25, you can use the optionally available MX-Bus-IO-Module to attach MxBus devices (e.g., an
MX-GPS-Box), to attach external sensors using the signal inputs and to switch other devices via the signal
outputs. To facilitate the installation of the module, you should attach the connection wires before inserting
the module.
Follow the instructions in section «Removing/Installing the Back Cover» to access the inside of the camera
and to close it again after inserting the module.
1. Attach the connection cables
Attach the connection cables as shown in the terminal connector overview.
Terminal Connectors
MxBus
connections
Output 1 A
Output 1 B/GND
Output 1 12 V
Output 2 A
Output 2 B/GND
Output 2 12 V
Output 1 –
Output 1 +
Output 2 –
Output 2 +
Innovations – Made in Germany
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made
high-resolution video systems cost-efficient.
MOBOTIX AG • D-67722 Langmeil • Phone: +49 6302 9816-103 • Fax: +49 6302 9816-190 • sales@mobotix.com
Can be tilted vertically
from –5° to –45°.
MX-Bus-IO-Module
for MxBus modules and
signal inputs/outputs
(accessory)
Variants of the p25
MX-p25-Day
6MP (3072x2048)
Color
MX-p25-BOD1*
MX-p25-D016
MX-p25-D036
MX-p25-D061
MX-p25-D079
MX-p25-D119
MX-p25-D237
*Requires focusing after self-mounting the lens (see «Initial Operation of the p25» )

p25 Standard Delivery

1.1
1.2
1.3
1.4
1.5

Connecting the p25

Recording
Receptacle for
adjusting the
camera tilt
Screw for
locking the
camera tilt

Installing the Lens (Only MX-p25-BOD1 Variant)

Removing/Installing the Back Cover

Inserting/Exchanging the SD Card

Installing the MX-Bus-IO-Module

MxBus
–
Relay
pot.-
free
Output 1
12 V self-
powered
–
Out-
puts
Relay –
pot.-
free
Output 2
12 V self-
powered
–
Inputs
Indoor Camera p25
Compact and Flexible Indoor Camera
MOBOTIX 6MP camera for flexible use in indoor applications,
install as complete Indoor Camera p25 (Day or Night) with selected lenses
or as camera module p25 (Day or Night) with separate lens (MX-B036 to
MX-B237).
www.mobotix.com > Products > p25
MX-p25-Night
6MP (3072x2048)
Variant
Black&White
p25 camera module, for lenses MX-B036 to MX-B237
MX-p25-BOD1-N*
(f/1.8, 103° to 15°, self-mounted*)
p25 Hemispheric with Fisheye lens MX-B016
MX-p25-N016
(f/2.0, 180° horiz. angle of view)
p25 with ultra-wide-angle lens MX-B036
MX-p25-N036
(f/1.8, 103° horiz. angle of view)
Self-mounted* with p25 with wide-angle lens MX-B061
MX-p25-BOD1-N
(f/1.8, 60° horiz. angle of view)
p25 with standard lens MX-B079
Self-mounted* with
MX-p25-BOD1-N
(f/1.8, 45° horiz. angle of view)
p25 with tele lens MX-B119
Self-mounted* with
MX-p25-BOD1-N
(f/1.8, 31° horiz. angle of view)
Self-mounted* with p25 with distance tele lens MX-B237
MX-p25-BOD1-N
(f/1.8, 15° horiz. angle of view)
Item Count Part Name
1.1 1 Housing with spring clips and tiltable camera
receptacle (installed)
1.2 1 Back cover (installed)
1.3 1 Main board with lens mount (installed)
1.4 1 Lens (only installed in camera models listed in
«Variants of the p25» )
1.5 1 Blind cover (only when self-mounting the lens with
MX-p25-BOD1)
1.6 1 Ethernet patch cable, 50 cm/19.7 in, black (installed)
1.7 1 MicroSD card pre-installed (SDHC montiert, SDXC
supported)
1.8 1 Flat-head screwdriver, blue
1.9 1 Lens wrench red (only with MX-p25-BOD1 and
lenses
1.10 1 Allen wrench 1.5 mm
For information on connecting the p25, please see
the M25 Camera Manual , section «Network and
Power Connection, Additional Cables» .
Regarding the initial operation of the p25, please
see the M25 Camera Manual in Chapter 3, «Initial
Operation» .
2. Install the lens
Screw the lens into the lens mount. Depend-
ing on the physical length of the lens, you
can use your hand and then the red lens
wrench (item 1.9). After initial operation of
the camera, remember to adjust the focus of
the lens (see «Initial Operation of the p25» ).
Make sure the power
3. If required, enlarge the cable guide
If the cable guide is not large enough for
additional cables, enlarge the guide accord-
ingly. Depending on the size required, break
out either one or two elements of the cable
guide using pliers (see blue markings in
the figure).
4. Attach back cover
Insert the back cover, so that the large arrow
(highlighted blue in the figure) is positioned
in the viewing direction of the camera. Make
sure the cables and wires are guided prop-
erly thought the cable guide, then carefully
press the back cover into the housing until
it clicks into place.
2. Insert the SD card
Insert the microSD card and gently press
with your finger as indicated by the arrow
until you hear another click .
Make sure that the SD card is fully inserted.
2. Insert the MX-Bus-IO-Module
Hold the MX-Bus-IO-Module with attached
connection wires over the receptacle on the
main board (red arrow in figure).
Use one finger to carefully press the board
of the module onto the receptacle. Make
sure that the green terminal connector block
is pointing upward (towards the SD card,
see red arrow in figure below).
Make sure that the MX-Bus-IO-Module is
fully inserted.
Please also make sure that the connection
wires are guided through the housing without
tension and in a loop so that the cables
do not lift the module out of its receptacle
when adjusting the camera tilt (see figure).
