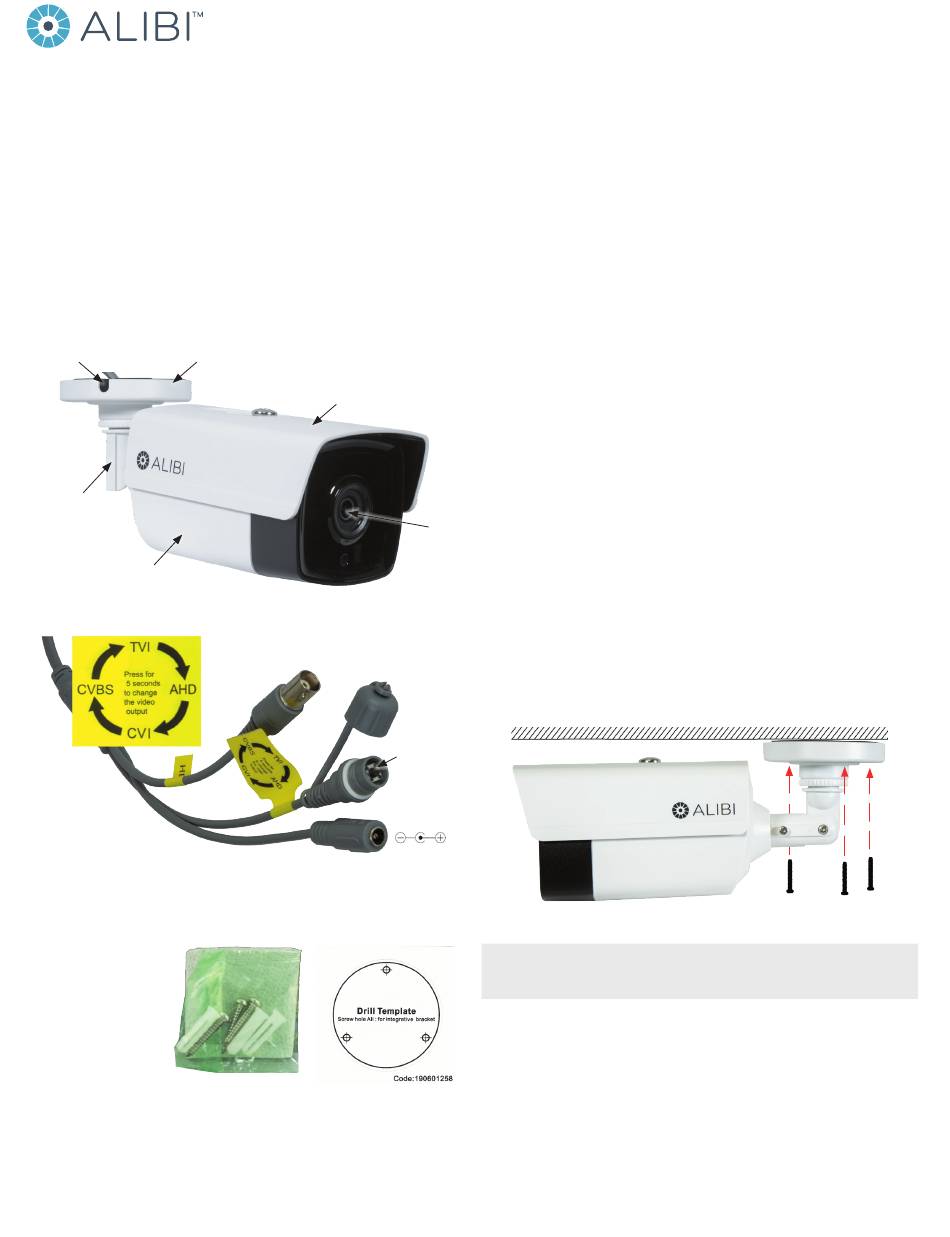

ALIBI ALI-TS3122R Quick Installation Manual

ALI-TS3122R 2MP 260 ft IR 4 in 1
Bullet Camera Quick Installation Guide

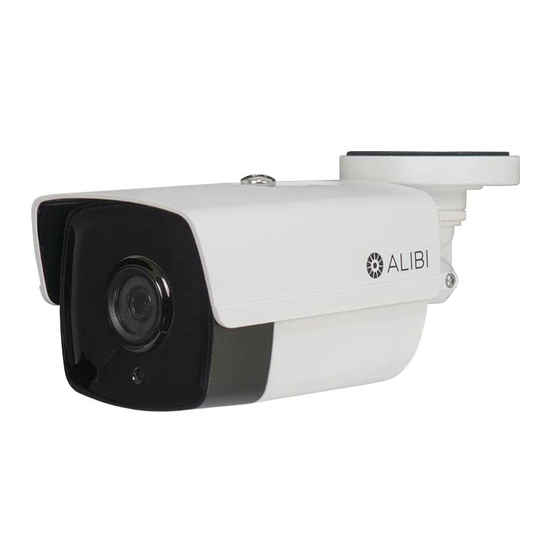

The ALIBI ALI-TS3122R indoor/outdoor HD4-in-1 bullet cameras include a high sensitivity sensor with the
ability to send HD video across standard coaxial cable. It features a button switch drop cable for changing
the video format to either TVI, AHD, CVI or CVBS. This camera features:
2 MP Megapixel High Performance CMOS
•
Supports TVI, AHD, CVI and CVBS video standards (4-in-1)
•
260' Smart Full Frame IR
•
3.6 mm wide angle lens with an 82.2˚ field of view covers a large area
•
-40° to 140°F temperature range
•
IP66 weather rated housing
•
Compatible with an Alibi HD-TVI recorder (HD-TVI DVR)
•
Can be installed with optional ALI-AJ6 junction box.
•
Cable channel Mounting base
Adjustable
mounting
bracket
Camera body
ALI-TS3122R camera
* Press and hold switch button for 5 seconds to change the video format. See cable tag.
Camera drop cable connectors
What's in the box
Camera assembly
•
Mounting hardware
•
Drill template
•
Quick installation guide
•
www.observint.com
1
Sunshield
HD video BNC connector
Cap for
switch
button
Switch*
button
12 Vdc power in

What you need

To install the camera, you will need:
12 Vdc power source. See Specifications for power requirements.
•
Tools and additional fasteners (may be required) for mounting the camera
•
Phillips #2 screwdriver
•
Video and power extension cable
•
Compatible Alibi HD-TVI recorder
•
HD-TVI video setup monitor (optional)
•

Installation

Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
•
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
•
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
•
Button Switch: Use the switch on this cable to change the video standard.
—
Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension
—
cable to an HD-TVI DVR.
Lens
Power connector: When applying power, observe the power polarity. See the picture to the
—
left for the connector polarity configuration.

Mounting the camera

An ALI-TS3122R camera can be mounted directly to a wall or ceiling, or with a junction box. The surface
should support at least three times the weight of the camera and junction box (if used). The video/power
drop cable from the camera can be routed either through mounting surface or through a cable channel in
the mounting base.
Mounting the camera directly to a wall or ceiling
•
If mounting the camera on a wall, ensure that the cable channel in the mounting base is down.
NOTE
If mounting the camera on a ceiling, orient the mounting base so that the cable channel is pointing
away from any source of water, dust, and other contaminates.
1. Using the drill template provided, mark the location of the screws that anchor the mounting base
to the mounting surface. See the note above. If you are routing the drop cable through mounting
surface, also mark the position of the hole for the drop cable.
2. Drill holes for the screws that anchor the base to the mounting surface. The mounting hardware
provided is appropriate for most surfaces. However, depending on the surface materials, more
appropriate fasteners may be required.
3. If routing the drop cable through the mounting surface, drill a 5/8" hole in the middle of the drill
template.
Cleaning
Typical ceiling mounting
section.
ALI-TS3122R_CQ
200617
