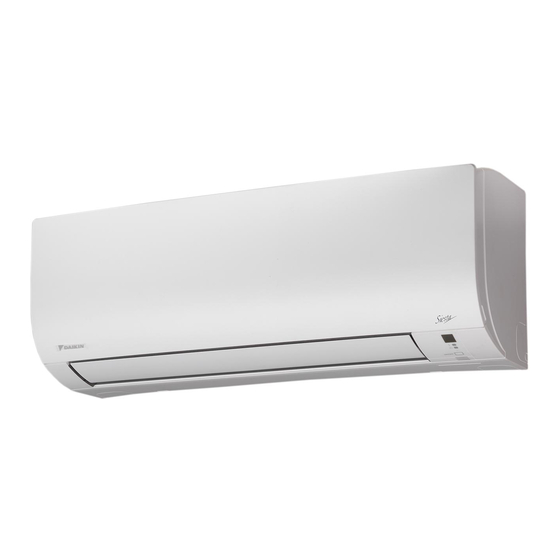

Daikin ATXP20L2V1B User Reference Manual
Room air conditioner
Hide thumbs
Also See for ATXP20L2V1B:
- Installer's reference manual (24 pages) ,
- Installation manual (20 pages)
Related Manuals for Daikin ATXP20L2V1B
Summary of Contents for Daikin ATXP20L2V1B
- Page 1 User reference guide Daikin room air conditioner ATXP20L2V1B User reference guide ATXP25L2V1B English Daikin room air conditioner ATXP35L2V1B...
-
Page 2: Table Of Contents
Children shall 10 Glossary NOT play with the appliance. Cleaning and user maintenance shall NOT be made by children without supervision. User reference guide ATXP20~35L2V1B Daikin room air conditioner 4P513685-2 – 2017.11... -
Page 3: About The Documentation
Latest revisions of the supplied documentation may be available on ▪ Do NOT sit, climb or stand on the unit. the regional Daikin website or via your installer. The original documentation is written in English. All other languages ▪ Units are marked with the following symbol: are translations. -
Page 4: About The User Interface
▪ Do NOT let the user interface get wet. Econo operation is active The indoor unit receives a signal from the user interface Current temperature setting Airflow rate = Automatic User reference guide ATXP20~35L2V1B Daikin room air conditioner 4P513685-2 – 2017.11... -
Page 5: To Operate The User Interface
Operation mode Operation range (a)(b) Cooling ▪ Outdoor temperature: –10~46°C ▪ Indoor temperature: 18~32°C ▪ Indoor humidity: ≤80% Heating ▪ Outdoor temperature: –15~24°C ▪ Indoor temperature: 10~30°C ATXP20~35L2V1B User reference guide Daikin room air conditioner 4P513685-2 – 2017.11... -
Page 6: When To Use Which Feature
Drying room without changing the temperature. The system heats up a room to the 5 airflow rate levels, from " " to " " Heating temperature setpoint. Automatic operation User reference guide ATXP20~35L2V1B Daikin room air conditioner 4P513685-2 – 2017.11... -
Page 7: Airflow Direction
To adjust the louvers (vertical blades) Drying ▪ The temperature setting is 1 Hold 1 or both knobs and move the louvers. lowered by 2.5°C. ▪ The airflow rate is slightly increased. ATXP20~35L2V1B Daikin User reference guide room air conditioner 4P513685-2 – 2017.11... -
Page 8: Econo Operation
You can also use OFF later. timer and ON timer in combination. To start/stop ON timer operation 1 Press to start. User reference guide ATXP20~35L2V1B Daikin room air conditioner 4P513685-2 – 2017.11... -
Page 9: Energy Saving And Optimum Operation
Otherwise, an electric shock and injury may result. ▪ Avoid direct air flow to room inhabitants. ATXP20~35L2V1B User reference guide Daikin room air conditioner 4P513685-2 – 2017.11... -
Page 10: To Clean The Indoor Unit And User Interface
To order titanium apatite deodorizing filters, contact your dealer. to their original position. 9 Close the front panel by pushing the claws of the filter into the slots at 3 locations (left, right, middle). User reference guide ATXP20~35L2V1B Daikin room air conditioner 4P513685-2 – 2017.11... -
Page 11: To Clean The Titanium Apatite Deodorizing Filter
2 After operation stops, turn the breaker off. 3 Clean the air filters and replace them in their original position. 4 Remove the batteries from the user interface. ATXP20~35L2V1B User reference guide Daikin room air conditioner 4P513685-2 – 2017.11... -
Page 12: Symptoms That Are Not System Malfunctions
▪ This sound is caused by the refrigerant flowing in the unit. ▪ This sound may be generated when water is flowing away from the unit during cooling or drying operation. User reference guide ATXP20~35L2V1B Daikin room air conditioner 4P513685-2 – 2017.11... -
Page 13: Disposal
Compressor system sensor abnormality Position sensor abnormality Field supply Equipment NOT made by Daikin that can be combined with DC voltage / current sensor abnormality product according instructions Outdoor temperature thermistor abnormality accompanying documentation. - Page 16 4P513685-2 2017.11...
