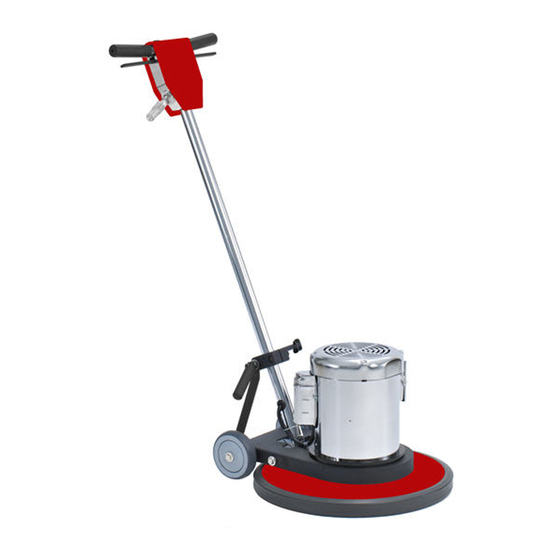

- Page 1 T H E B R U T E ‘ OWNER’S MANUAL OPERATION • CARE • SERVICE COMMERICAL/INDUSTRIAL DUTY STONE RESTORATION MACHINE 17” OR 20” 165 RPM 1.5 HP 180 FRAME TOTALLY ENCLOSED MOTOR UNIT SHOWN WITH OPTIONAL THREE (3) WEIGHTS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Machine Specifications ................1 Service Information ..................2 Important Safety Instructions...............2 Grounding Instructions ................3 Operation/Accessories .................3 Brush And Drive Block Installation............4 Adjustments....................4 Controls....................5 Guidelines For Operation.................5 Cord Storage ....................5 Clean Up And Storage .................6 Floor Machine Assembly 17” 1.5 HP 165 RPM ..........6 Floor Machine Parts List................7 Optional Accessories..................8 Features ......................8... -
Page 3: Service Information
To obtain consistent performance over the life of your equipment, read through these instructions and save them for future reference. If you require service, contact the dealer from which the machine was purchased or an authorized service station. Always refer to your Limited Warranty for complete service information. -
Page 4: Grounding Instructions
WARNING: DO NOT USE GROUND- I N G A D A P T E R S O N F L O O R MACHINES IN CANADA. CHECK WITH CANADIAN CODES FOR PROPER EQUIPMENT USAGE. IMPROPER USE OF GROUND ADAPTORS CAN CAUSE SERIOUS INJURY, FIRE, OR BE FATAL. -
Page 5: Brush And Drive Block Installation
BRUSH PAD DRIVER HANDLE ADJUSTMENT INSTALLATION The handle can be adjusted to any desired work position by simply pushing up on the handle lock NOTE: Disconnect the power cord form the (fig 5). Move the handle to the desired position, electrical outlet before installing a brush or pad then firmly push down on the handle lock which driver. -
Page 6: Controls
CONTROLS • Always adjust the operating handle to a comfortable height at which the brush or pad surface is balanced before starting the machine. ON/OFF POWER SWITCH TRIGGERS (see “Handle Adjustment” Pg 4 ). • Your floor machine will operate differently on The ON/OFF switch is conveniently located in the various surfaces. -
Page 8: Floor Machine Parts List
FLOOR MACHINE PARTS LIST REF. PART DESCRIPTION ........................17” Fl Mach, 165 RPM, 1 1/2 HP ........1.........H0040.............Screw, Fan Cover...............3 2........................Label ..................1 3.........E0030HDM ...........Fan Cover ................1 4.........E0030HDM............Fan ..................1 5.........H0100.............Lynch Pin 1/4” ..............2 6.........A0032WPIN ..........Weight Retaining Pin............2 7.........E0030HDM............Motor, 115V/230V/60Hz, 180 Frame, Chrome, 1 1/2HP..1 8.........G0002XHD ............Gear Unit, 11-1, 3-Idler-Black...........1 9.........H0005.............Lockwasher, 5/16”... -
Page 9: Optional Accessories
OPTIONAL ACCESSORIES PART DESCRIPTION A0002 ..................17” Polypropylene Brush A0003………………………………………………………….. 20” Polypropylene Brush A0004 ..................17” Polish Brush A0005………………………………………………………….. 20”Polish Brush A0006 ..................17” Nylon Brush A0007………………………………………………………….. 20” Nylon Brush A0008 ..................17” Grit Brush A0009………………………………………………………….. 20” Grit Brush A0010 ..................16” Pad Driver A0011………………………………………………………….. -
Page 10: Limited Warranty
(2) Any authorized service station. If you are unable to locate any of the foregoing, you may write or otherwise communicate with HAWK ENTERPRISES before repair service is performed by anyone else. In such event, HAWK ENTERPRISES will provide either the location or a closely available authorized distributor service department, or authorized service station or other factory instructions.
