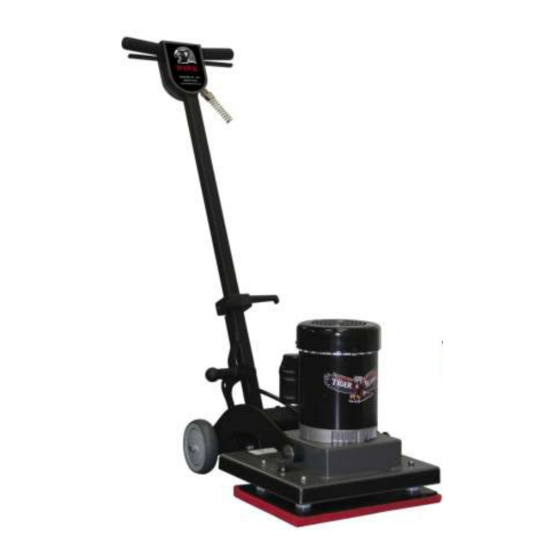

- Page 1 TigerHawk 1410 HAWK Small Area Orbital Floor Machine ENTERPRISES Dry Stripping, Scrubbing, Stripping Operation Care Service HAWK ENTERPRISES 2902 Park Six Court, Elkhart, IN 46514 (574) 294-1910 (888) 289-4295 www.hawkenterprises.com...
-
Page 2: Table Of Contents
Service Information ....................2 Machine Specifications ....................3 Features ........................3 Important Safety Instructions ...................4 Grounding Instructions ..................5-6 Operations .......................7 Guidelines For Operations ..................7 Controls .......................7 Adjustments......................8 Cord Storage .......................8 Clean Up And Storage .....................8 TigerHawk Assemblies ..................9-14 Optional Accessories ....................15 Limited Warranty ..................Back Cover SERVICE INFORMATION To obtain consistent performance over the life of your equipment, read though these... -
Page 3: Machine Specifications
Revolutionary Design that Utilizes . . . • Primary vibration isolators • Secondary vibration isolators • Floating head to ensure 100% pad contact at all times Features • Start/Run capacitor 1/2 HP TEFC • One-piece industrial powder coated (totally enclosed fan cooled) heavy duty steel handle for optimum motor keeps out dirt and dust for durability... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: WARNING: ELECTRIC SHOCK CAN CAUSE SERIOUS INJURY OR BE FATAL. PLEASE READ THE FOLLOWING INSTRUCTIONS ON THE USE AND OPERATIONS OF FLOOR FINISHING MACHINES. - Page 5 WARNING: RISK OF EXPLOSION. FLOOR SANDING MACHINE CAN RESULT IN AN EXPLOSIVE MIXTURE OF FINE DUST AND AIR. USE FLOOR SANDING MACHINE ONLY IN A WELL-VENTILATED AREA, FREE FROM ANY FLAME OR MATCH GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.
-
Page 6: Grounding Instructions
WARNING: DO NOT USE GROUNDING ADAPTERS ON TIGERHAWKS IN CANADA. CHECK WITH CANADIAN CODE FOR PROPER EQUIPMENT USAGE. IMPROPER USE OF GROUND ADAPTORS CAN CAUSE SERIOUS INJURY, FIRE, OR BE FATAL. Grounding Instructions (Continued) -
Page 7: Operations
CONTROLS TO TURN THE MACHINE ON The operating handle must be lowered and locked to the proper operating position before switching the machine ON. Place both hands firmly on the handle grips with your fingers around the power triggers. Do NOT apply pressure on the triggers before the safety switch lock is disengaged. Disengage the safety switch lock by pushing it forward with one thumb. -
Page 8: Adjustments
ADJUSTMENTS HANDLE ADJUSTMENT The handle can be adjusted to any desired work position by simply pulling on the pull pin and move the handle to the desired position. Firmly push the pull pin back into the adjustment holes. This will lock the handle in position. Pull Knob Figure 5 CORD STORAGE... - Page 13 DETAL PART NUMBER NUMBER DESCRIPTION QTY. E0002 MOTOR .5 HP W0015P MAIN FRAME H0004 WASHER 3/8 SPLIT RING LOCK ZN H0042 BOLT 3/8-16 X 7/8 ZN H0075-7 BUTTON BLUG H0057 NUT NYLOCK 3/8-16 W0015-BWT-P BOTTOM WEIGHT H0043 BOLT 3/8-16 X 1-1/2 SHCS ZN SM50708 NUT NYLOCK 5/16-18 H0155...
- Page 14 DETAL PART NUMBER NUMBER DESCRIPTION QTY. BOTTOM PLATE SHIELD RTV ULTRA GASKET MAKER SCREW 1/4-20 X 1 1/8 W/PATCH W0003-3P-COLOR SWITCH BOX COVER L0005-1 SAFETY LABEL L0002 SWITCH BOX COVER ID LABEL H0002-1 SCREW PHIL 10-24 X 3/4 THREAD FORM ZN H0020 LOCK WASHER #10 INT/EXT H0028...
-
Page 15: Optional Accessories
If you are unable to locate any of the foregoing, you may write or otherwise communicate with HAWK ENTERPRISES before repair service is performed by anyone else. In such event, HAWK ENTERPRISES will provide either the location or a closely available HAWK distributor service department, or HAWK authorized service station or other factory instructions.
