Altronix SMP1012X Series Installation Manual page 3

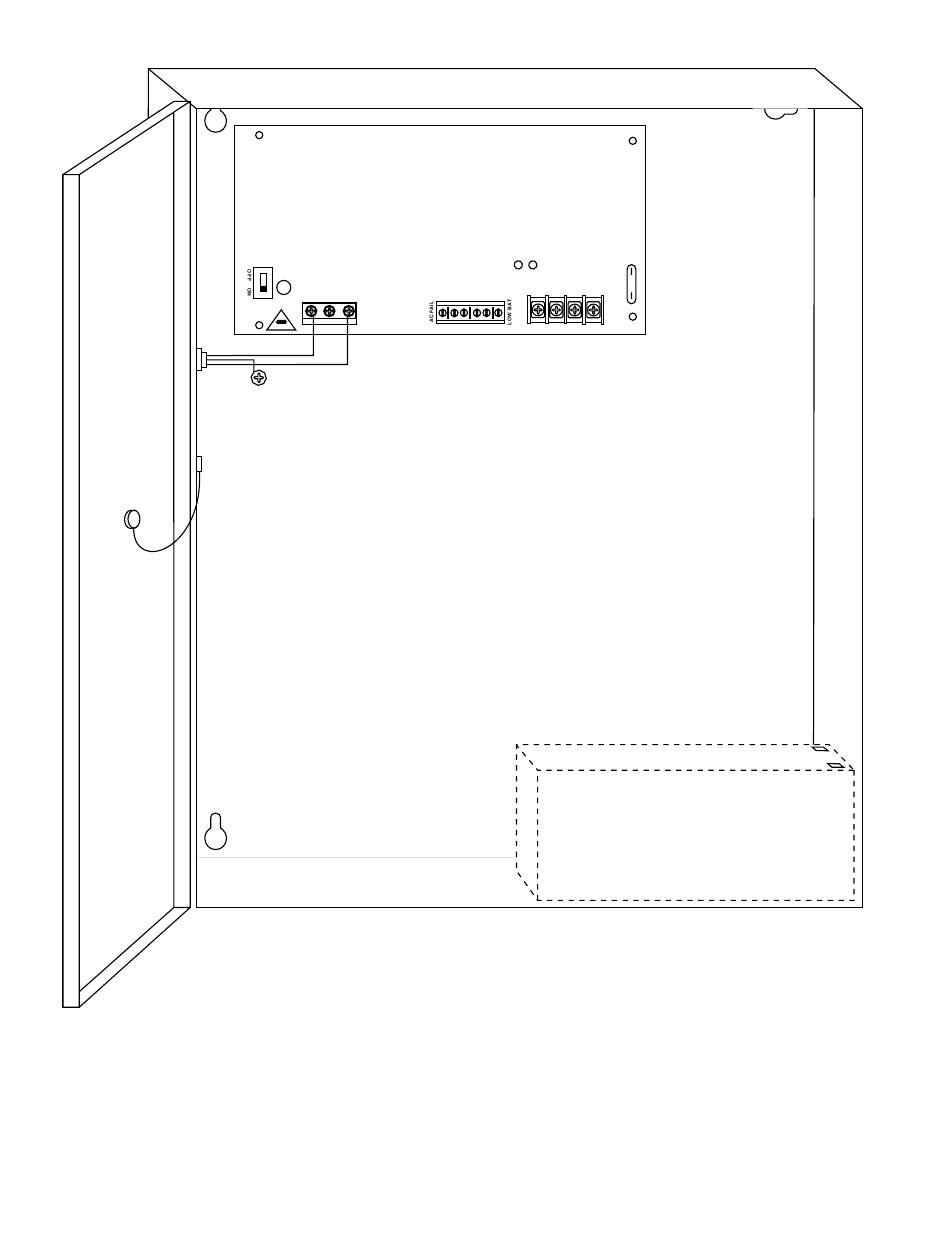

Fig. 2
Wire Strap
(from
Enclosure
to Door)
SMP1012Xseries
CAUTION: De-energize unit prior to servicing. For continued protection
against fire hazard replace fuse with the same type and rating, 15A, 32V.
Power Supply
5A 250V L G N
115 power mains
Earth Ground
CAUTION: Optional rechargeable stand-by batteries must match the power supply
output voltage setting.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
Board
AC DC
NC C NO NC C NO
--- BAT + --- DC +
15A
12VDC Rechargeable Battery
(optional)
- 3 -
