Brakes

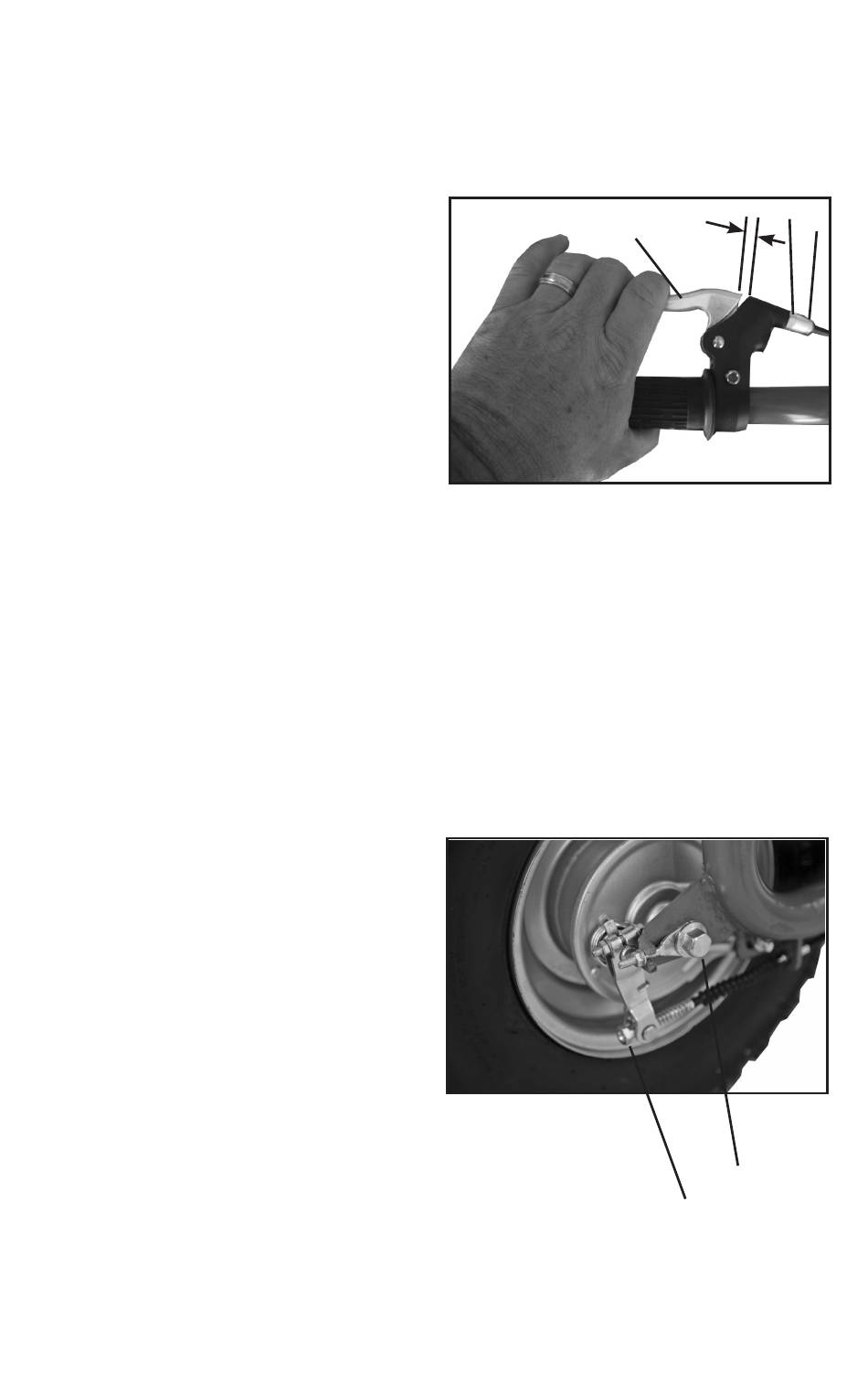

Brake Lever Adjustment
The front left brake lever (1) should
have 2.0 - 4.0mm (0.08 - 0.16) of
free play.
To adjust brake lever free play:
1. Loosen the jam nut (2) on the
brake cable.
2. Turn the adjuster nut (3) until the
correct amount of free-play is
achieved.
3. Re tighten jam nut (2)
Brake Adjustment
To adjust brakes, loosen the rear
axle bolt (4)
Locate the adjustment nut (5)
located on the rear brake drum
assembly.
To adjust brakes, turn the
adjusting nut (5) clockwise to
increase braking, counter clockwise
to decrease braking.
BRAKE ADJUSTMENT
8
2.0 - 4.0mm
(0.08 - 0.16 in)
1
4
5
2
3
