Front

Printer parts

Printer parts
Front ............................................................................................................................................................................................. 474
Side ............................................................................................................................................................................................... 476
Top Cover (Inside) .................................................................................................................................................................. 477
Roll Cover (Inside) .................................................................................................................................................................. 478
Carriage ...................................................................................................................................................................................... 478
Ink Tank Cover (Inside) ......................................................................................................................................................... 479
Stand ............................................................................................................................................................................................ 481
Control Panel ............................................................................................................................................................................ 436

Front

Front

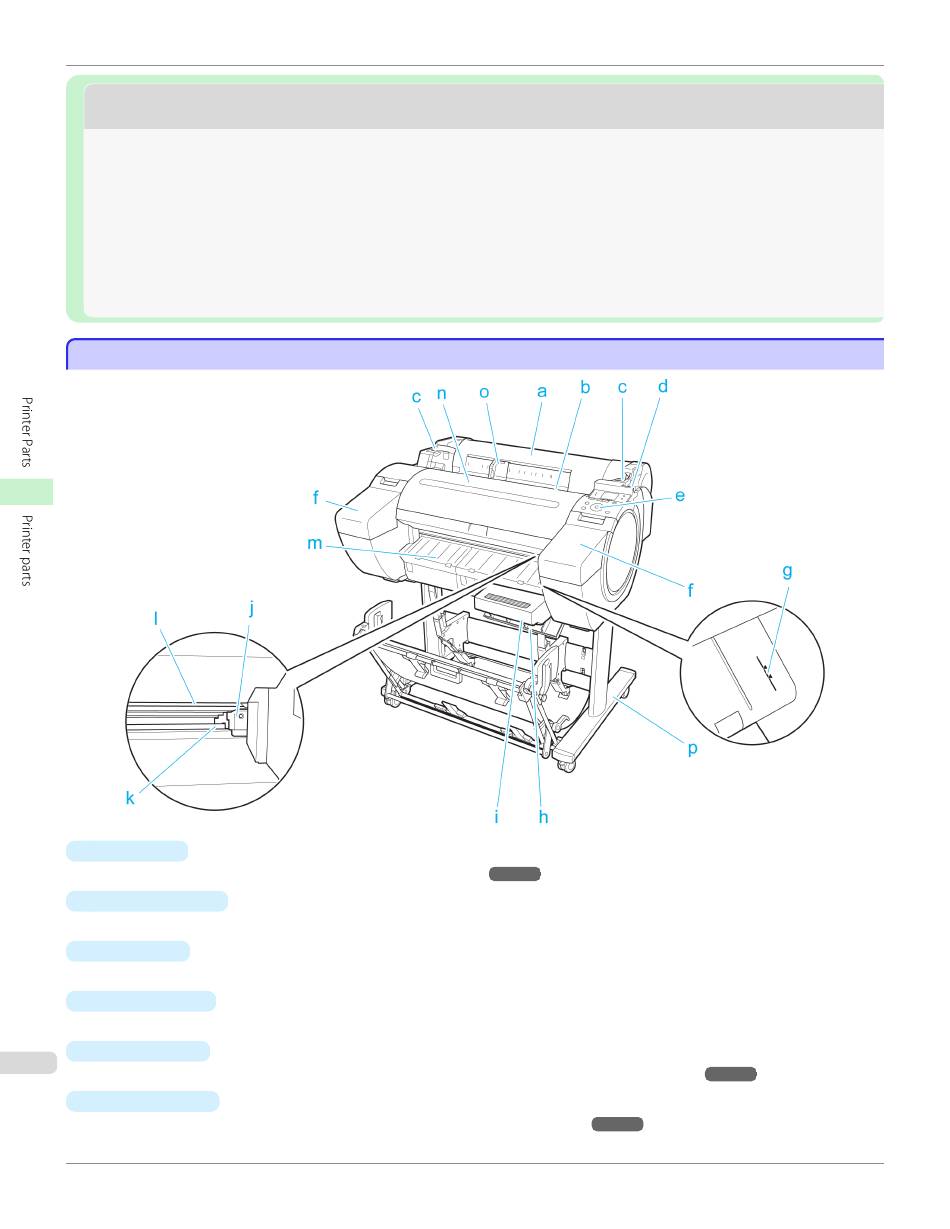

a Roll Cover
Open this cover to load rolls. (See "Roll Cover (Inside).")
b Paper Feed Slot
When loading paper, insert it here.
c Roll Ledge
When loading rolls, rest the Roll Holder here before loading it in the Roll Holder Slot.
d Release Lever
When releasing the Paper Retainer, push this lever back.
e Control Panel
474
Use this panel to operate the printer and check the printer status. (See "Control Panel.")
f Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).")
P.478
➔
P.479
➔
iPF680
P.436
➔
User's Guide
