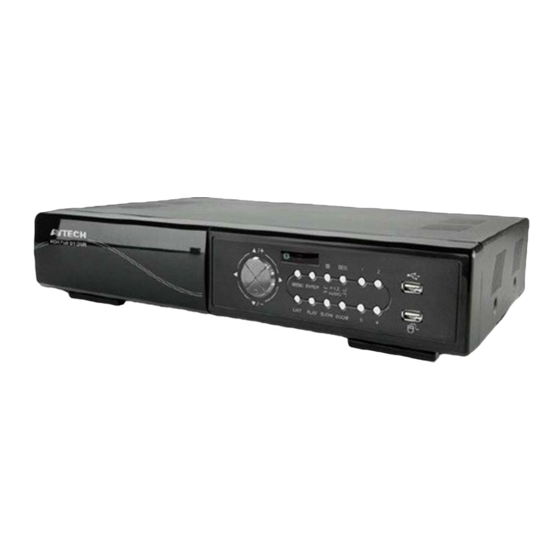

- Page 1 H.264 Network DVR Quick Start GUI Display with USB Mouse Control Please read instructions thoroughly before operation and retain it for future reference. For the actual display & operation, please refer to your DVR in hand. 792c_m752c_Quick_V0.9...
-
Page 2: Gui Display With Usb Mouse Control
1. GUI DISPLAY WITH USB MOUSE CONTROL 1.1 Connect USB Mouse Connect your USB mouse to one of the USB ports on the DVR front panel, and check if there’s a mouse icon ( on the screen, indicating the USB mouse is detected properly. Move your mouse to enter the DVR password with the password keypad. -
Page 3: Main Menu Structure
Main Menu Structure QUICK START GENERAL CHANNEL TITLE EVENT STATUS DATE DISPLAY MOUSE SENSITIVITY PRIORITY RECORD CONFIG TIME SETUP DATE TIME DATE SETUP DATE INFO DISPLAY DATE OF MODE FORMAT DAYLIGHT DAYLIGHT SAVING SYSTEM TOOLS LANGUAGE ADMIN PASSWORD OPERATOR PASSWORD UPGRADE BACKUP CONFIG RESTORE CONFIG... -
Page 4: Front And Rear Panels
2. FRONT AND REAR PANELS 2.1 Front Panel LED Indicators HDD is reading or recording. DVR is powered on. (▲) / (▼) / (◄) / (►) Press ▲ / ▼ / ◄ / ► to move up / down / left / right. In the playback mode: Press “... -
Page 5: Rear Panel
13) P.T.Z. ( + SEQ) Press “ ” + “SEQ” at the same time to enter / exit the PTZ control mode. 14) USB port There are two USB ports on the front panel, one for connecting your USB mouse for mouse control, and the other one for connecting your USB flash drive for video backup. -
Page 6: Basic Operation
3. BASIC OPERATION 3.1 Live Page Icon Function Icon Function Icon Function Live audio channel (1~4) Playback audio channel (1~4) Audio channel off Digital zoom on Digital zoom off Timer recording Network disconnected Internet connected LAN connected USB mouse connected USB flash drive / device connected No USB device connected Key lock... -
Page 7: Playback Control
Note: During playback, the image size of the recording (FRAME, FIELD or CIF) will be shown on the screen. Playback Control Fast Forward Increase the speed for fast forward. Click once to get 4X speed forward and click twice to get 8X speed, etc., and the maximum speed is 32X. Fast Rewind Increase the speed for fast rewind. -
Page 8: Vga Output Resolution Support
3.5 VGA Output Resolution Support Users are allowed to change the resolution depending on their display monitor. Right-click to display the main menu, and select “ADVANCED CONFIG” “DISPLAY”. ADVANCED CONFIG CAMERA FULL SCREEN DURATION DETECTION DISPLAY COVERT ALERT HDD DISPLAY MODE HDD SIZE NETWORK VGA OUTPUT...
