RECORDER'S CONFIGURATION
Selecting Recording status displays an additional symbol on the screen, referring to the current status
of the DVR channel. Blue rectangle indicates continuous recording, yellow indicates motion detection
-triggered recording,
input-triggered recording.
Please select APPLY to apply settings or EXIT to leave without applying changes. To restore settings
please press the DEFAULT button

5.1.2.2. Main monitor

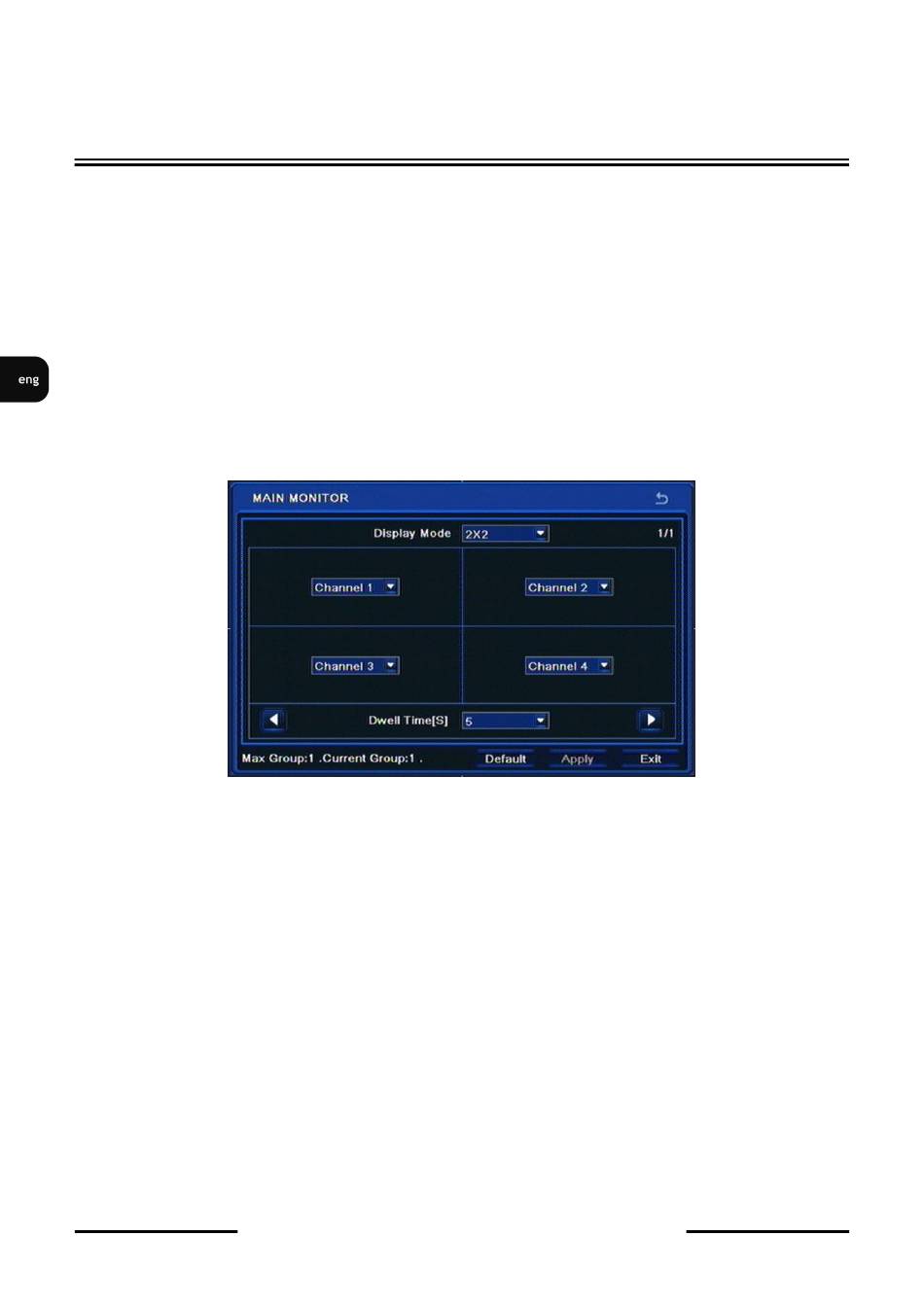

Selecting MAIN MONITOR from the LIVE menu displays the following screen.
This tab allows to modify camera display modes during split-screen.
Any camera may be assigned to any position on the display, so there are no restrictions in assigning
device channel 2 to video channel 1 for example.
In order to perform changes, please select any position from the Channel drop-down box and select
camera number that should be displayed at the selected position.
Dwell Time [S] defines the time of automatic switching between the pictures (both in split-screen and
full-screen modes).
Note:
Cameras may appear on the selection screen only once.
Please select APPLY to apply settings or EXIT to leave without applying changes. To restore settings
please press the DEFAULT button.
NDR-BA6104,NDR-BA6208,NDR-BA6416
User's manual ver.1.2
green indicates manual
All rights reserved © AAT Holding sp. z o.o.
recording, while
42
red indicates alarm
