SC-1022-20

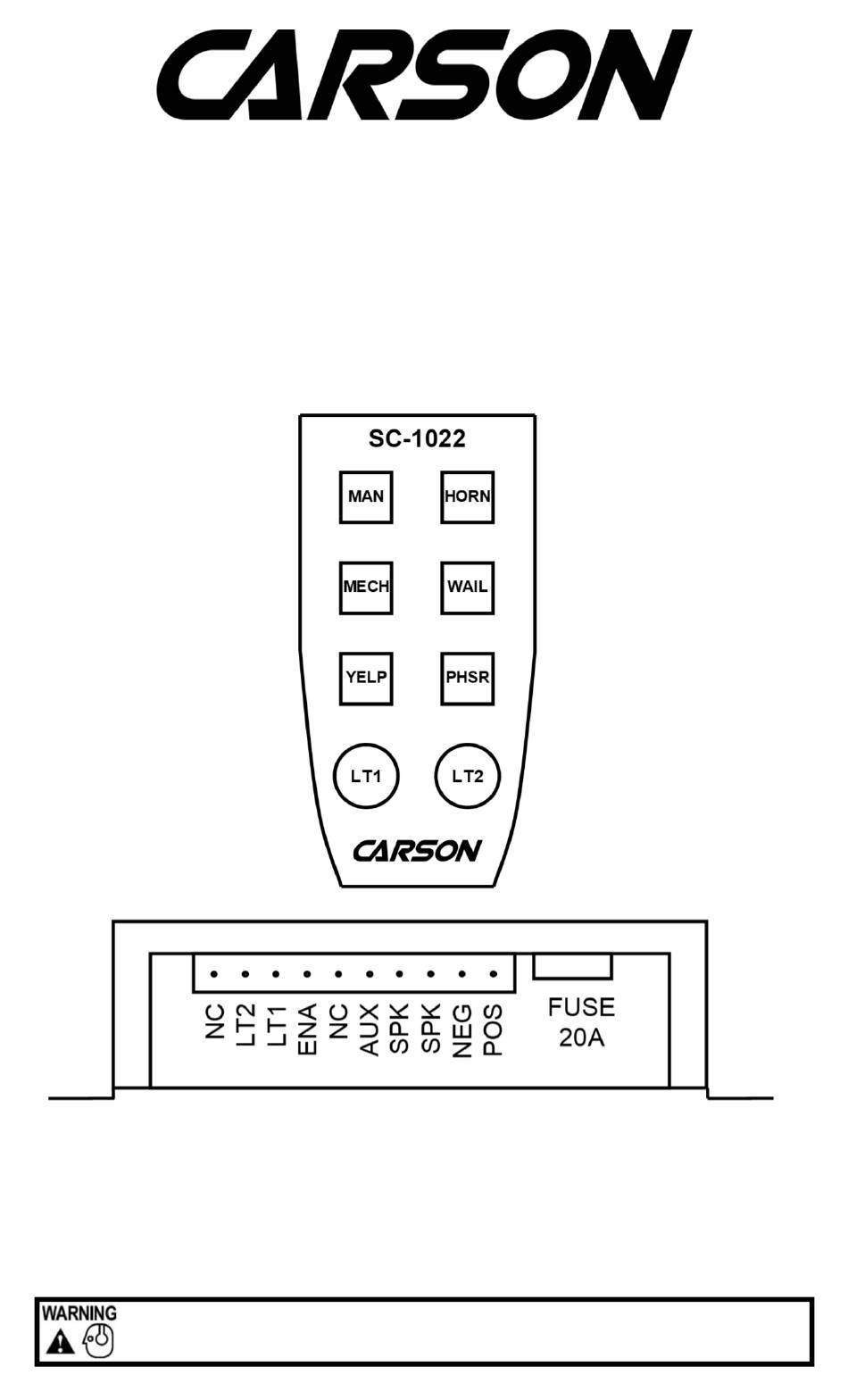

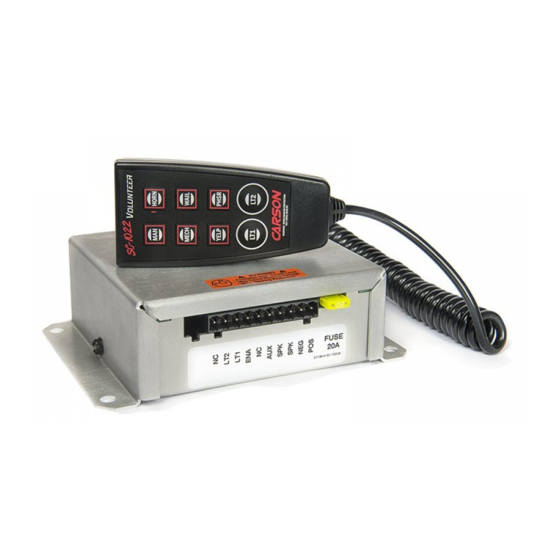

SIREN AMPLIFIER W/ LIGHT CONTROL
INSTALLATION AND OPERATING
INSTRUCTIONS
Carson is a trademark of Carson Manufacturing Company, Inc.
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carson SC-1022-20
Summary of Contents for Carson SC-1022-20
- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Carson is a trademark of Carson Manufacturing Company, Inc. Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
- Page 2 Carson Manufacturing Co., Inc. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 SC-1022-20 Installation Instructions Page 3 of 8 SPECIFICATIONS Siren Section Input Voltage 10 - 16 VDC (negative ground) Input Current 8 AMPS (@14 VDC - single 100W speaker) Standby Current Less than 50mA @ 14 VDC enabled, less than 5mA standby Output Power 105 WATTS RMS MAX.
- Page 4 Page 4 of 8 SC-1022-20 Installation Instructions Hand Control: Choose a mounting location convenient to the operator and away from any air bag deployment areas. Consider cable routing to amplifier. Mount the hand control with supplied Hook and Loop tape (VELCRO). If the tape method is not preferred, the hand control may be mounted several ways.
- Page 5 SC-1022-20 Installation Instructions Page 5 of 8 Enable Input Connection (ORG lead on wiring diagram) - This is NOT the same as the main power connection. The enable input is like a power switch for the unit. When there is positive power at this connection, the unit is powered up and ready to function.
- Page 6 Page 6 of 8 SC-1022-20 Installation Instructions OPERATION POWER ON/OFF The unit is normally turned on with ignition switch on the vehicle. See INSTALLATION section. The hand control will also be backlit. SIREN CONTROLS MECH, WAIL, YELP, AND PHSR PUSHBUTTON SWITCHES Four pushbutton switches control the primary operating mode of the siren.
- Page 7 Do the Light Control switch indicators light? working Rear panel fuse blown Is the corresponding fuse blown? PARTS and ACCESSORIES The following parts and accessories are available from Carson Manufacturing Company, Inc.: Accessory Description * - standard accessory supplied with unit CP4688-10 *...
- Page 8 If a product must be returned for any reason, please contact our Technical Service Department to obtain a Returned Merchandise Authorization num- ber (RMA#) before you ship the product to Carson. Please write the RMA# clearly on the package near the mailing label. Be sure to provide a return address, contact and phone number, along with a brief description of the problem.
