12.3 Cleaning Heat Exchanger
Place a sheet of paper or similar in the combustion chamber, to
act as a collector for deposits removed.
Brush the heat exchanger with a suitable brush, remove paper
together with any debris.
Take care not to damage the insulation.
Do not use a brush with metallic bristles.
12.4 Cleaning Main Burner
Use a vacuum cleaner or suitable brush to clean the burner
thoroughly, making sure that all burner ports are clear and
unobstructed.
SENSING
ELECTRODE
EARTH
ELECTRODE
SECURING
BURNER
SCREW (3)
ELECTRICAL CONNECTIONS
SECURING SCREW
FAN
FLUE
COLLECTOR
221894A

12 Servicing

IGNITION
ELECTRODE
SILICONE
LEADS (3)
SLEEVE (3)

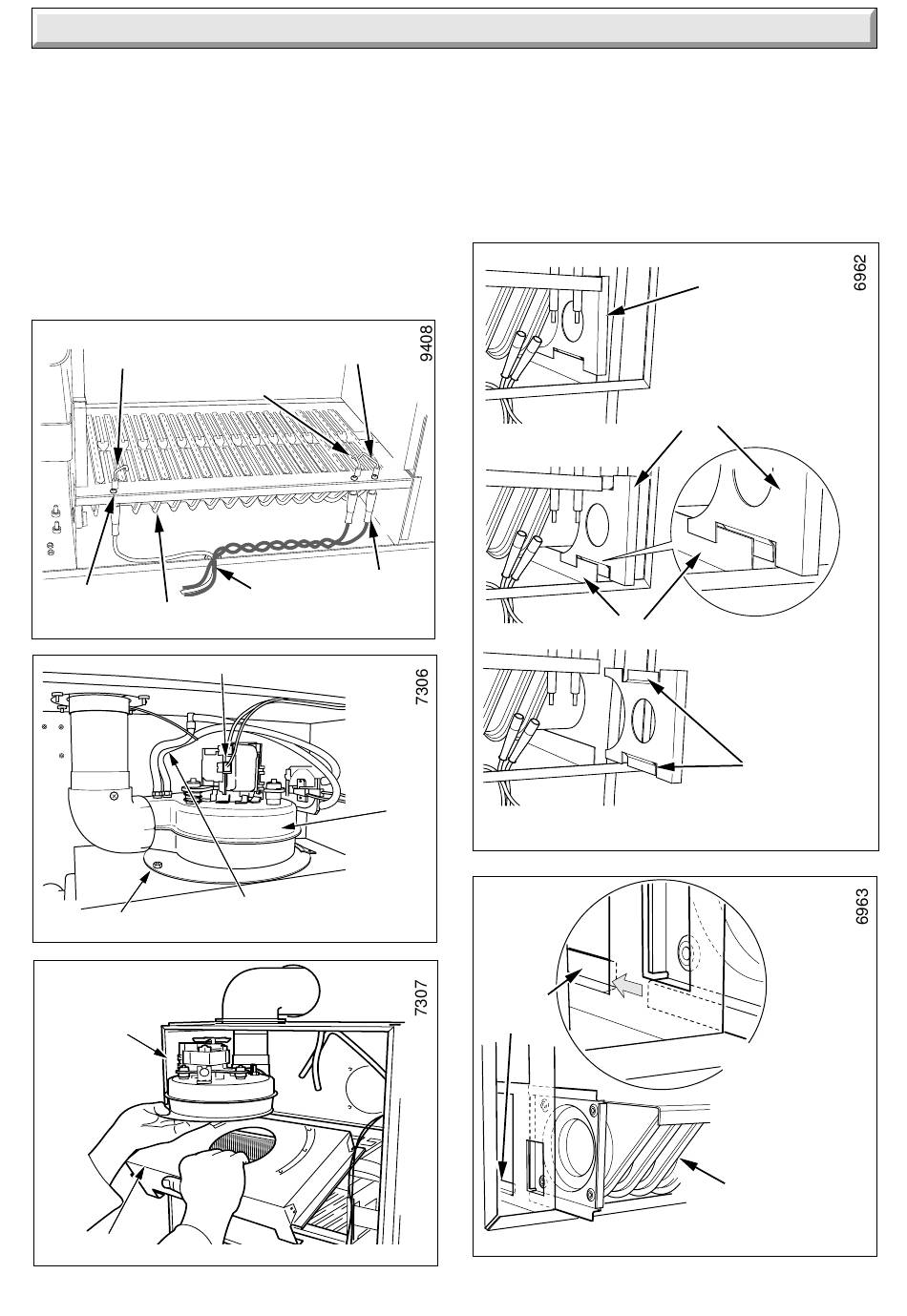

Diagram 12.1
FAN
AIR PRESSURE
TUBE (2)
Diagram 12.2
Diagram 12.3
Do not use a brush with metallic bristles.
12.5 Service Checks
Inspect the spark and sensing electrodes, Clean or renew if
necessary, refer to Sections 14.4 and 14.5.
Check the main injector, cleaning or renewing as necessary,
refer to Section 14.3.
GUIDE
RIGHT HAND SIDE OF BURNER
BURNER
GUIDE
LEFT HAND SIDE OF BURNER
26
BURNER
RETAINING
BRACKET
Pull bracket
forward to
remove
When refitting
make sure the
bracket is located
in the guide
and fitted properly.
SECURING
LIP
Diagram 12.4
When refitting
make sure the
burner is located
in the burner guide
and fitted properly.
Pull burner
forward to
remove
Diagram 12.5
