Glow-worm COMPACT 100e Instructions For Use Installation And Servicing page 40

COMBUSTION
CHAMBER
FRONT PANEL
SIDE
INSULATION
FRONT
INSULATION

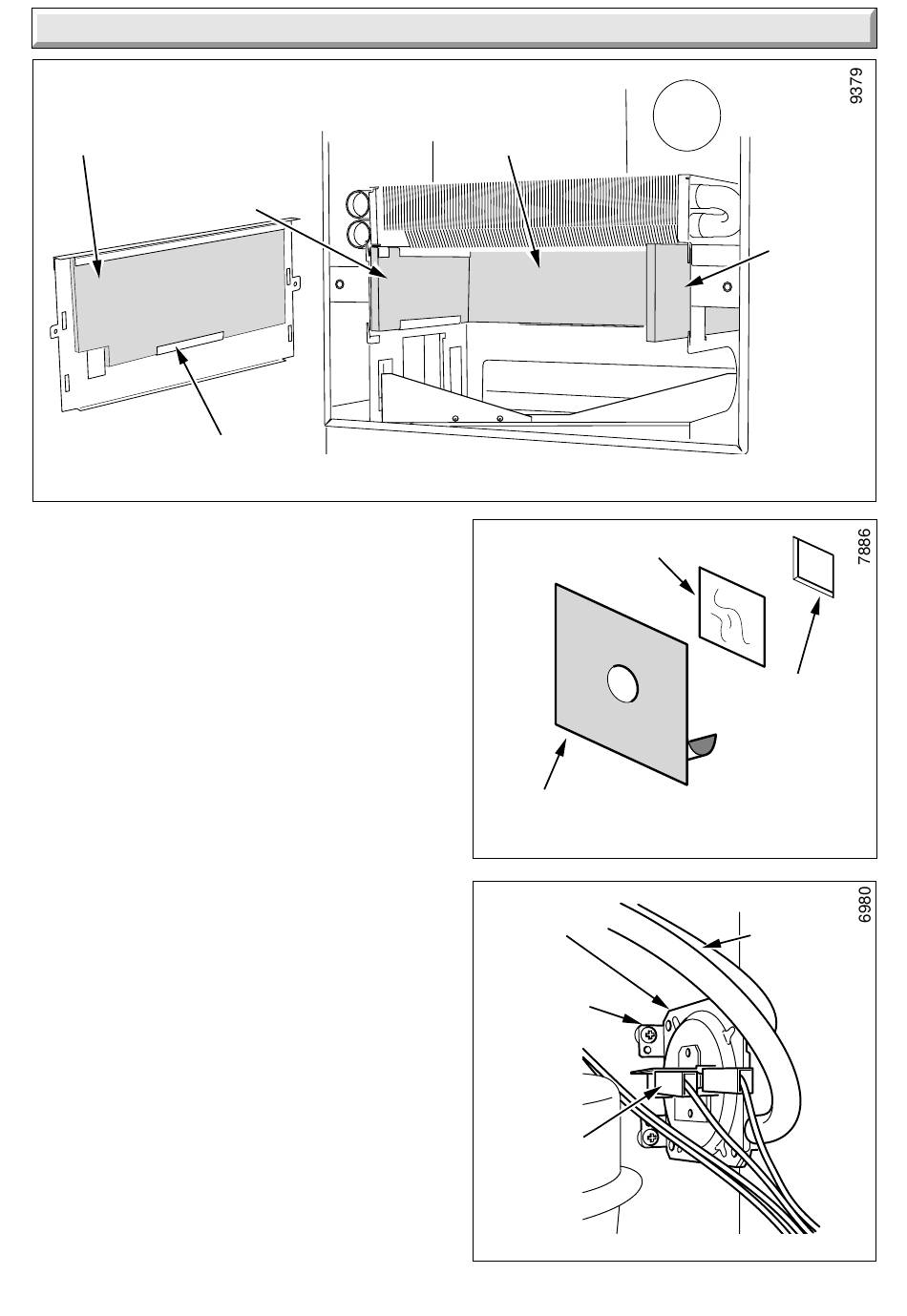

14.27 Combustion Chamber Insulation
Remove outer case front as section 11.4.
Remove the inner case front as Section 11.5.
Unhook the combustion chamber front, see diagram 8.2.
Remove the burner see section 14.2.
Remove the front insulation piece, see diagram 14.25.
Slide out both side insulation pieces
Pull the lower rear insulation forwards, then slide the upper rear
insulation down from behind the heat exchanger.
14.28 Viewing Window
Before starting refer to Section 11.
Remove the old self adhesive aluminium foil gasket and the old
mica window. Replace with a new mica window, see diagram
14.26. Peel off the backing paper and secure with new self
adhesive aluminium foil gasket. Ensure no air bubbles are
trapped underneath the foil.
Important
Make sure that the mica window fully covers the opening and
that the hole in the aluminium foil gasket is centred over
opening.
14.29 Inner Casing Seal
Before starting refer to Section 11.
Remove the old seal, clean out the old adhesive.
Glue the new seal into place, making sure that there are no
breaks in it.
221894A
14 Replacement of Parts
REAR
INSULATION
SELF ADHESIVE
ALUMINIUM FOIL
GASKET
ELECTRICAL
CONNECTION (2)
40
MICA WINDOW
AIR PRESSURE
SWITCH
SECURING
SCREW (2)
SIDE
INSULATION
Diagram 14.25
OPENING
(BOILER INNER
CASE FRONT)
PEEL OFF
BACKING
PAPER
Diagram 14.26
AIR
PRESSURE
SWITCH
TUBE (2)
RED
CLEAR
Diagram 14.27
