Chimney fanned flue boiler

Advertisement

Quick Links

0020003579A.08.04

Instructions for Use

Installation and Servicing

To b e l e f t w i t h t h e u s e r
Hideaway
100C FF
G.C. No. 41-047-42
Hideaway
115C FF
G.C. No. 41-047-43
Chimney
Fanned Flue Boiler
Glow-worm, Nottingham Road, Belper, Derbyshire. DE56 1JT
www.glow-worm.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hideaway 100C FF and is the answer not in the manual?

Questions and answers

Summary of Contents for Glow-worm Hideaway 100C FF

  • Page 1: Instructions For Use

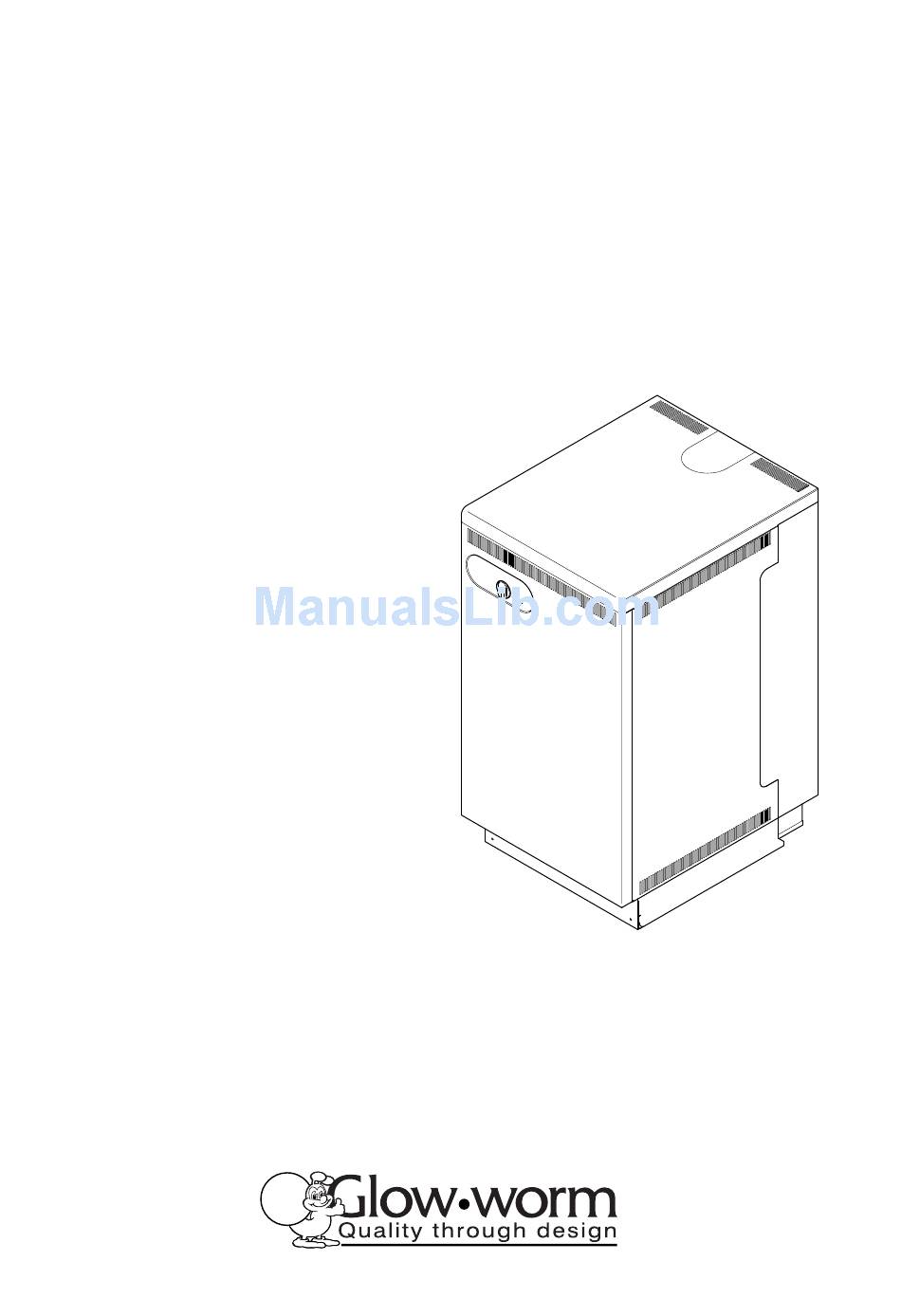

    To b e l e f t w i t h t h e u s e r Hideaway 100C FF G.C. No. 41-047-42 Hideaway 115C FF G.C. No. 41-047-43 Chimney Fanned Flue Boiler Glow-worm, Nottingham Road, Belper, Derbyshire. DE56 1JT www.glow-worm.co.uk...
