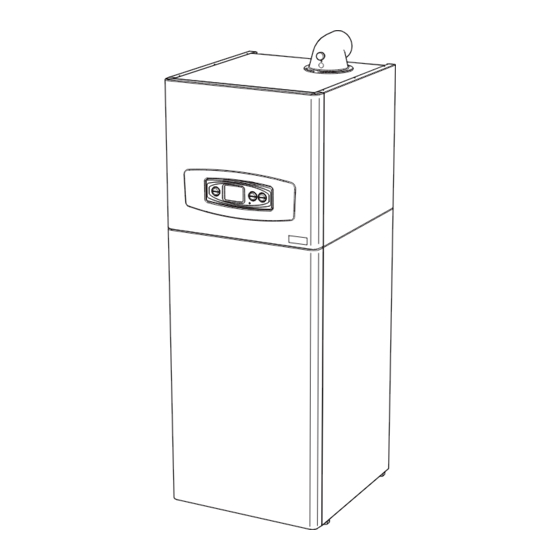

Ultrapower sxi

Installation and Servicing

100sxi
G.C. No. 41-019-09
170sxi
G.C. No. 41-019-10
High Efficiency
System Store
Supplied By www.heating spares.co Tel. 0161 620 6677
www.glow-worm.co.uk
