Refit the restrictor plate that was supplied fitted & marked as
Restrictor Table below.
Fit the flue connecting sleeve onto the fan, see diagram 8.11.
Fit the fan to the flue ducting, see diagram 8.11.
Fit the fan and flue collector the electrical connections and air
pressure tubes to the fan.
Refit the combustion chamber panel.
Make the outer wall weatherproof. A Flue Collar Kit Part No.
443286 is available.
8.6 Top Outlet Side or Rear Flue Fixing
Position the restrictor plate supplied in the loose items pack,
between the flue elbow and boiler , (gasket facing upwards). Fit
the flue elbow to the restrictor plate and top of the boiler using
the four screws supplied, see diagram 8.7.

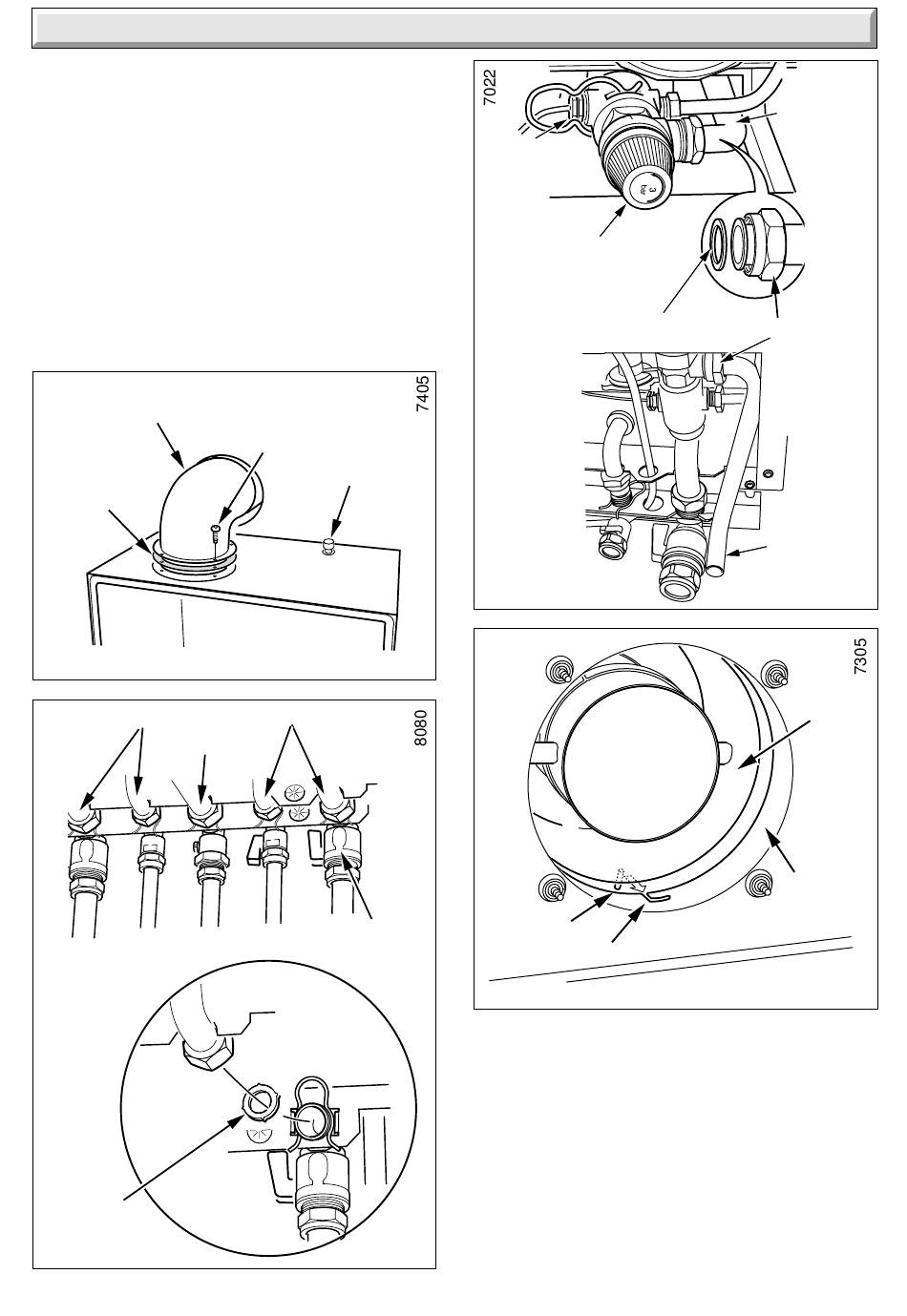

FLUE ELBOW
(REAR FLUE
SHOWN)
RESTRICTOR
/ GASKET
FITTED TO HYDRO BLOCK
GAS SUPPLY
SEALING
WASHER (4)
(INSERT INTO
TUBING NUT)
221894A
8 Mounting the boiler
SECURING
SCREW (4)
PRODUCTS
PROBE
Diagram 8.7
SERVICE
COCKS (4)
Diagram 8.8
PRESSURE
GAUGE
CONNECTION
SAFETY
VALVE
DISCHARGE
TAB (2)
CUTOUT (2)
Tighten the four screws of the flue elbow evenly to ensure a
good seal at the gasket.
Note: It is important the correct restrictor plate is fitted or omitted
where instructed.
For top flue outlet be sure to use the correct restrictor plate, all
restrictors are supplied with the appliance, see restrictor table.
Make sure that the ductings do not slope down towards the
boiler.
Remove the fan from the flue collector, secured with a screw
and retaining lip.
18
DISCHARGE
PIPE
SEAL
UNION CONNECTION
DISCHARGE
PIPE
Diagram 8.9
FLUE
SPIGOT
Diagram 8.10
AIR
DUCT
