Glow-worm COMPACT 100e Instructions For Use Installation And Servicing page 17

8.2 Water and Gas Connections
Locate the boiler water pipes and gas supply pipe making sure
the washers are retained in the tubing nuts onto the isolation
valves, fully push the boiler back, see diagram 8.8.
Ensure the bottom boiler bracket is sitting on top of the service
cock bracket, see diagram 8.6.
Secure all the tubing nuts finger tight, plus
Connect the gas pipe to the isolation valve ensuring that the
sealing washer (supplied fitted) is in position.
8.3 Boiler Securing
Secure the boiler to the service cock bracket with the screws
provided in the fittings pack, see diagram 8.6.
An anti theft kit is available, Kit No. 457110.
8.4 Discharge Pipe
Fit the short discharge pipe to the safety valve using the nut and
sealing washer supplied in the fittings pack, see diagram 8.9.
Extend the discharge pipe, using only a compression type fitting
to join the discharge extension, refer also to Section 6.4 "Safety
Valve Discharge".
8.5 Rear Outlet Flue Fixing
Make sure that the ductings do not slope down towards the
boiler.
Fit the air duct into the flue spigot by pulling the air duct into the
flue, locating cutouts. Turn the air duct anti-clockwise to lock the
tabs into the cutouts, see diagram 8.10.

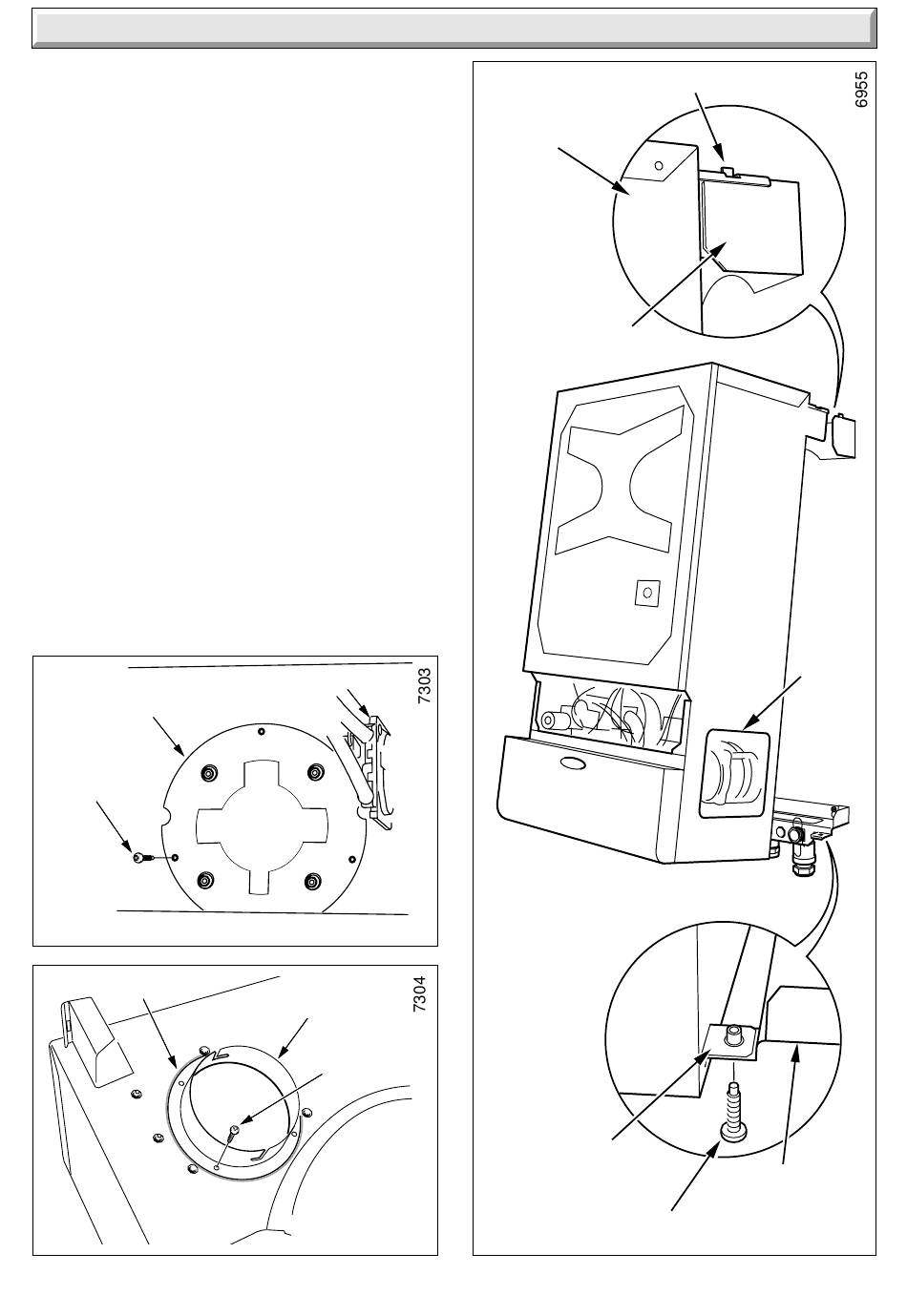

RESTRICTOR
PLATE
SECURING
SCREW (3)
GASKET
8 Mounting the boiler
3
/ turn maximum.
4
AIR PRESSURE
SWITCH
Diagram 8.4
FLUE
SPIGOT
SECURING
SCREW (3)
Diagram 8.5
BOILER
TOP MOUNTING
BRACKET
BOILER BRACKET
(On Top)
SECURING SCREW
17
RETAINING LUG
SERVICE COCK
BRACKET
Diagram 8.6
HAND
HOLES
221894A
