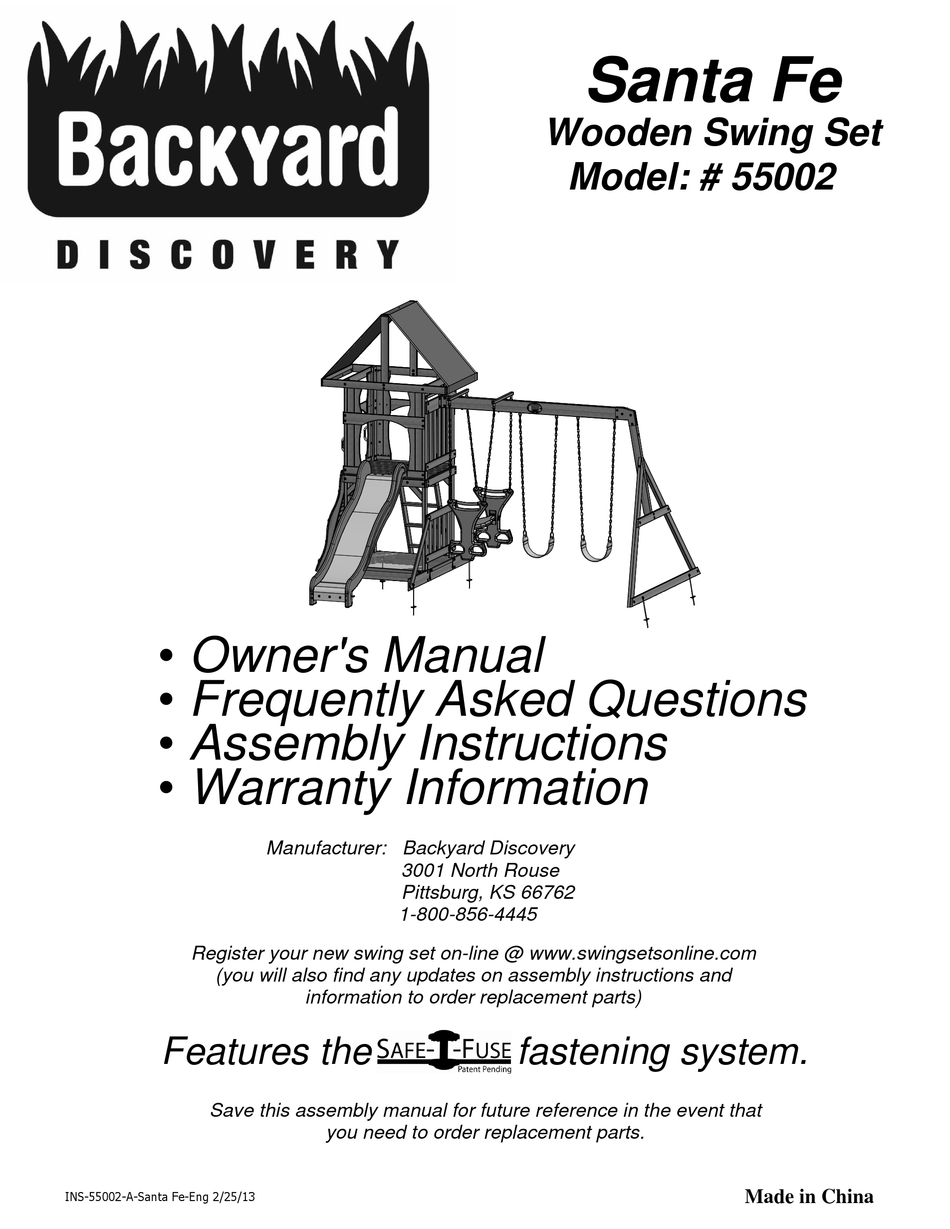

Backyard Discovery Santa Fe Owner's Manual

Backyard Discovery Santa Fe Owner's Manual

Wooden swing set
Hide thumbs

Advertisement

Quick Links

Download this manual
•
• Owner's Manual
•
• Frequently Asked Questions
•
• Assembly Instructions
•
• Warranty Information
Register your new swing set on-line @ www.swingsetsonline.com
(you will also find any updates on assembly instructions and
Features the
Save this assembly manual for future reference in the event that
INS-55002-A-Santa Fe-Eng 2/25/13
Manufacturer: Backyard Discovery
3001 North Rouse
Pittsburg, KS 66762
1-800-856-4445
information to order replacement parts)
you need to order replacement parts.
Santa Fe
Wooden Swing Set
Model: # 55002
fastening system.
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the Santa Fe and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery Santa Fe

Summary of Contents for Backyard Discovery Santa Fe

  • Page 1 (you will also find any updates on assembly instructions and information to order replacement parts) Features the fastening system. Save this assembly manual for future reference in the event that you need to order replacement parts. Made in China INS-55002-A-Santa Fe-Eng 2/25/13...
  • Page 2 STOP PARE Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.swingsetsonline.com ¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA! La tienda donde realizó...
  • Page 3 Owner’s Manual Play Set Dear Customer: Please read entire booklet completely before beginning the assembly process. Equipment is recommended for use by children 3 to 10 years of age. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application.
  • Page 4 Owner’s Manual Play Set Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height. Positioning Your Playcenter 1. The Playcenter is designed to be installed on a level surface by an Adult with an Adult helper. Place in a flat area of your yard to minimize ground preparation. 2.
  • Page 5 Owner’s Manual Play Set The following chart explains the fall height in feet from which a life threatening head injury would not be expected Critical Heights in feet (m) of Tested Materials Material Uncompressed Depth Compressed Depth 6" (152mm) 9" (228mm) 12"...
  • Page 6 Owner’s Manual Play Set 18. Verify that any suspended climbing ropes, chain, or cable are secured at both ends and that they cannot be looped back on it. 19. Instruct children not to attach items to the playground equipment that are not specifically designed for use with the equipment, such as, but not limited to, jump ropes, clothesline, pet leashes, cables and chain as they may cause a strangulation hazard.
  • Page 7 Third Party Assembly: Customer may, in their sole discretion, elect to use a third party person or service to assemble this product. Backyard Discovery assumes no responsibility or liability for any charge incurred by the Customer for any assembly services’.
  • Page 8 Owner’s Manual Play Set APPENDIX A Information on Playground Surfacing Materials: The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material; also see the following website for additional information: www.cpsc.gov/cpscpub/pubs/323.html. X3. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK X3.1 Select Protective Surfacing—One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-absorbing protective surfacing under and around your play equipment.
  • Page 9 Owner’s Manual Play Set The American Society for Testing and Materials takes no position respecting the validity of any parent right asserted in connection with any item mentioned in this standard. Users of this standard are expressly advised that determination of the validity of any such parent rights, and the risk of infringement of such rights, are entirely their own responsibility.
  • Page 10 The stakes provided should be used to secure it firmly to the ground. 2. What size area is recommended for the playset? Backyard Discovery recommends at least a 6’ (six foot) perimeter around and above the playset for maximum safety. 3. What age range is appropriate for the playsets? Backyard Discovery playsets are recommended for children ages 3 –...
  • Page 11 11. The end beam is not straight up and down. Why not? This is normal. Backyard Discovery designs playsets this way to ensure the strongest structure possible. The slight angle adds strength and reduces rocking and twisting.
  • Page 12 Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Square) (Level 24") (Phillips Screw Driver) (Tape Measure) (Open End Wrenches 1/2") (Drill Attachments: Phillips Head) (7/16"...
  • Page 13 Basic Setup Dimensions Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. [1.8] 11'-1 9/16" [3.4] 13'-8" [1.8] [4.2] Safe Play Zone General Information:...
  • Page 14 Parts Identification Wood Components (NOT TO SCALE) E1 - UPRIGHT - W103830 1 3/8"x3 3/8"x89 1/2" (36x86x2274) E2 - UPRIGHT - W103831 1 3/8"x3 3/8"x89 1/2" (36x86x2274) E3 - UPRIGHT - W103833 1 3/8"x3 3/8"x89 1/2" (36x86x2274) E4 - UPRIGHT - W103832 1 3/8"x3 3/8"x89 1/2"...
  • Page 15 Parts Identification Wood Components (NOT TO SCALE) H7 - FLOOR SUPPORT BLOCK - W103909 1"x3 3/8"x3 3/8" (24x86x86) H74 - LEFT UPRIGHT - W100608 1"x3 3/8"x50 3/4" (24x86x1290) H75 - RIGHT UPRIGHT - W100609 1"x3 3/8"x50 3/4" (24x86x1290) H79 - END SUPPORT - W100992 1"x3 1/2"x42"...
  • Page 16 Parts Identification Wood Components (NOT TO SCALE) M3 - WALL BOARD - W103904 5/8"x3 3/8"x18 1/8" (16x86x460) M4 - WALL BOARD - W103903 5/8"x3 3/8"x25 3/4" (16x86x654) M5 - WALL RAIL - W103843 5/8"x3 3/8"x37 1/2" (16x86x952) M7 - TOP TARP SUPPORT - W103902 5/8"x3 3/8"x37 1/2"...
  • Page 17 Parts Identification Wood Components (NOT TO SCALE) M77 - SLIDE BRACE - W100544 5/8"x3 3/8"x17 1/4" (16x86x438) M78 - CENTER SLIDE BRACE - W100545 5/8"x3 3/8"x17 1/4" (16x86x438) M102 - ATTACHMENT BOARD - W102970 5/8"x3 3/8"x18 1/4" (16x86x462) M103 - REAR SUPPORT - W102996 5/8"x3 3/8"x18 1/4"...
  • Page 18 Parts Identification Hardware BN - SCREW PFH 8x1 - H100085 (122) BR - SCREW PFH 8x1-1/8 - H100088 (173) BP - SCREW PFH 8x1-1/2 - H100086 - T-40 Torx Bit - A100042 (52) CK - SCREW PFH 8x2 - H100111 (26) BW - SCREW PFH 8x3 - H100092 (60)
  • Page 19 Parts Identification Hardware (11) B - NUT BARREL WH 5/16x5/8 - H100004 CM - BOLT WH 5/16x1/2 - H100115 F - BOLT WH 5/16x1 - H100008 (52) D - NUT BARREL WH 5/16x7/8 - H100005 (32) H - BOLT WH 5/16x1-1/2 - H100010 C - NUT BARREL WH 5/16x1-1/2 - H100006 J - BOLT WH 5/16x1-3/4 - H100011 (36)
  • Page 20 Parts Identification Hardware AN - BOLT HEX 5/16x2-3/4 - H100047 AJ - BOLT HEX 5/16x1-1/4 - H100042 (13) A - BOLT FA 3/8x1-1/2 - H100001 (18) CY - SCREW PWH 8x5/8 - H100128 BE - T-NUT 1/4 - H100072 (13) BG - T-NUT 5/16 - H100074 (13) BF - T-NUT 3/8 - H100073...
  • Page 21 Parts Identification Accessories (NOT TO SCALE) FB - SWING SEAT YELLOW - A100070 DK - GLIDER ARM BYD GREEN - A100022 DL - GLIDER SEAT YELLOW - A100023 TC - SWING BEAM EXTENSION BRACKET-RIGHT - A100326 TB - SWING BEAM EXTENSION BRACKET-LEFT - A100325 EM - SLIDE BED 8' YELLOW - A100056 KC - METAL GROUND STAKE BROWN - A100178 EK - SLIDE RAIL 8' GREEN RIGHT - A100054...
  • Page 22 Parts Identification Accessories (NOT TO SCALE) EY - TUBING CAP GLIDER SUPPORT -A100067 EW - GLIDER SUPPORT BYD GREEN - A100065 FA - QUICK LINK - A100069 EX - GLIDER BUSHING BYD GREEN -A100066 GD - L BRACKET 66x66x127 - A100140 HC - BYD ID TAG (LARGE) 2011 WITH AGES - A100164 EA - HAND GRIP YELLOW PLASTIC - A100043 DG - CHAIN GREEN 38.5"...
  • Page 23 Parts Identification Accessories (NOT TO SCALE) (12) ER - CLIMBING ROCK GREEN SMALL - A100060 SQ - "A" REVISION TAG - A100314 WT - TARP .4x936x2493 - A100402 WZ - BUNGEE CORD BUTTON -A100404 XA - SANDBOX BUNGEE - A100405 WY - MESH SANDBOX COVER - A100403...
  • Page 24 SB74 - SWING BEAM EXTENDED - W102419 2"x5 1/4"x89 1/2" (50x134x2274) GD - L BRACKET 66x66x127 - A100140 TC - SWING BEAM EXTENSION BRACKET-RIGHT - A100326 TB - SWING BEAM EXTENSION BRACKET-LEFT - A100325 4 FT GREEN EXTENDED SWING BEAM WITH GLIDER BOLT WH 5/16x1-3/4 BOLT HEX...
  • Page 25 E77 - ANGLE BRACE - W100991 W71 - SWING BEAM SUPPORT - W102420 1 3/8"x3 3/8"x74 3/8" (36x86x1890) 2"x3 3/8"x49 5/8" (50x86x1260) H79 - END SUPPORT - W100992 H80 - GROUND BOARD - W100990 1"x3 1/2"x42" (24x86x1072) 1"x3 3/8"x87 3/8" (24x86x2218) STEP 2 ATTACH H80 GROUND BOARD TO (2) E77 ANGLED SUPPORT BOARDS USING (2) 2"...
  • Page 26 STEP 3 INSERT W71 BOARD INTO TB AND TC BRACKET OPENING AND SECURE USING (2) 1-3/4" BOLTS AND 7/8" BARREL NUTS, AS SHOWN. BOLT WH INSERT (2) 2-1/2" BOLTS, LOCK WASHERS AND 1-1/2" BARREL NUTS INTO THE EDGE OF 5/16x1-3/4 BOLT WH W71 BOARD, AS SHOWN.
  • Page 27 EY - TUBING CAP GLIDER SUPPORT - A100067 EX - GLIDER BUSHING BYD GREEN - A100066 EW - GLIDER SUPPORT BYD GREEN - A100065 STEP 4 ATTACH (2) EW GLIDER SUPPORT BARS TO SB74 SWING BEAM USING (2) 5-3/4" BOLTS, FLAT WASHERS AND 5/16"...
  • Page 28 STEP 5 INSERT (4) SWING HANGER QUICK LINK INTO SB74 SWING BEAM USING (4) SAFETY NUT LOCK 5/16 WASHERS, FLAT WASHERS AND 5/16" LOCK NUTS, AS SHOWN. WASHER FLAT 8x27 SB74 WASHER SAFETY 17x30 SWING HANGER QUICK LINK...
  • Page 29 H74 - LEFT UPRIGHT - W100608 M104 - LADDER RUNG - W102997 1"x3 3/8"x50 3/4" (24x86x1290) 1"x3 3/8"x17 1/8" (24x86x434) 4 FT LADDER WITH ATTACHMENT BOARD STEP 1 SCREW PFH SCREW PFH 8x2 (8 PLCS) M104...
  • Page 30 H75 - RIGHT UPRIGHT - W100609 1"x3 3/8"x50 3/4" (24x86x1290) STEP 2 SCREW PFH SCREW PFH 8x2 (8 PLCS)
  • Page 31 M103 - REAR SUPPORT - W102996 5/8"x3 3/8"x18 1/4" (16x86x462) STEP 3 SCREW PFH 8x1-1/2 SCREW PFH 8x1-1/2 (4 PLCS) M103...
  • Page 32 M102 - ATTACHMENT BOARD - W102970 5/8"x3 3/8"x18 1/4" (16x86x462) STEP 4 SCREW PFH 8x1-1/2 SCREW PFH 8x1-1/2 (4 PLCS) M102...
  • Page 33 N88 - ROCK WALL SLAT - W103916 M126 - ATTACHMENT BOARD - W103919 5/8"x2 3/8"x20 1/4" (16x60x514) 5/8"x3 3/8"x20 1/4" (16x86x514) H97 - ROCK WALL RAIL - W103915 1"x3 3/8"x48 3/4" (24x86x1238) N90 - ROCK WALL SLAT - W103918 N89 - ROCK WALL SLAT - W103917 5/8"x2 3/8"x20 1/4"...
  • Page 34 (12) ER - CLIMBING ROCK GREEN SMALL - A100060 STEP 2 SCREW PFH (12) 8x1 1/8 BOLT FA (12) 3/8x1 1/2 BOLT FA 3/8x1 1/2 SCREW PFH 8x1 1/8 (80 PLCS) (80 PLCS)
  • Page 35 8 FOOT SLIDE ASSEMBLY PHASE 1 STEP 1 PLACE SLIDE BRACE CENTERED ON THE BOTTOM 1/4" FROM THE EDGE. TRANSFER HOLES ON THE BOARD THROUGH THE SLIDE BED AS SHOWN BELOW. USE A 3/8" DRILL BIT. ATTACH SLIDE BRACE TO SLIDE USING HARDWARE SHOWN. DESCRIPTION SLIDE BRACE BOLT WH 5/16x1/2...
  • Page 36 8 FOOT SLIDE ASSEMBLY PHASE 2 STEP 2 PLACE 1 SLIDE RAIL ON A FLAT SURFACE AND BEGIN INSERTING SLIDE BED AT THE BOTTOM OF THE SLIDE RAIL (FIG. 1). PUT SLIDE SUPPORT BOTTOM INTO THE SUPPORT POCKET AT THE BOTTOM OF THE RAIL AND HAVE A HELPER BEND THE SLIDE BED TOWARDS THE TOP OF THE SLIDE AND INSERT THE BED INTO THE SLIDE CAVITY.
  • Page 37 STEP 1 LAY FORT UPRIGHTS FLAT ON GROUND. INSERT T-NUTS USING A HAMMER, AS SHOWN. NOTE EDGE BORED HOLES IN UPRIGHTS TO HELP DETERMINE T-NUT PLACEMENT. T-NUT 5/16 (2 PLCS) T-NUT 5/16 EDGE BORED HOLES T-NUT 5/16 (2 PLCS) EDGE BORED T-NUT 5/16 HOLES (2 PLCS)
  • Page 38 E1 - UPRIGHT - W103830 H1 - FLOOR RAIL - W103837 M5 - WALL RAIL - W103843 1 3/8"x3 3/8"x89 1/2" (36x86x2274) 1"x3 3/8"x37 1/2" (24x86x952) 5/8"x3 3/8"x37 1/2" (16x86x952) E3 - UPRIGHT - W103833 K2 - ARCH BOARD - W103841 K1 - GROUND BOARD - W103834 1 3/8"x3 3/8"x89 1/2"...
  • Page 39 H2 - FLOOR RAIL - W103920 E2 - UPRIGHT - W103831 1"x3 3/8"x37 1/2" (24x86x952) 1 3/8"x3 3/8"x89 1/2" (36x86x2274) O1 - SPACER BOARD - W103912 5/8"x1 3/8"x37 1/2" (16x34x952) M5 - WALL RAIL - W103843 E4 - UPRIGHT - W103832 5/8"x3 3/8"x37 1/2"...
  • Page 40 K3 - GROUND BOARD - W103836 5/8"x5 1/4"x38 5/8" (16x134x980) STEP 4 LAG SCREW WH 5/16x2 WASHER LOCK EXT 8x19 LAG SCREW WH 5/16x2 (4 PLCS) WASHER LOCK EXT 8x19 (4 PLCS) WASHER LOCK EXT 8x19 (4 PLCS) LAG SCREW WH 5/16x2 (4 PLCS)
  • Page 41 H6 - HORIZONTAL TARP SUPPORT - W103848 M9 - FLOOR RAIL - W103838 1"x3 3/8"x58 3/4" (24x86x1492) 5/8"x3 3/8"x38 5/8" (16x86x980) K4 - ARCH BOARD - W103842 5/8"x5 1/4"x38 5/8" (16x134x980) STEP 5 LAG SCREW WH 5/16x2 (2 PLCS) LAG SCREW WASHER LOCK EXT 8x19 WH 5/16x2 (2 PLCS)
  • Page 42 H6 - HORIZONTAL TARP SUPPORT - W103848 1"x3 3/8"x58 3/4" (24x86x1492) M10 - FLOOR RAIL - W103839 K4 - ARCH BOARD - W103842 5/8"x3 3/8"x38 5/8" (16x86x980) 5/8"x5 1/4"x38 5/8" (16x134x980) STEP 6 LAG SCREW WH 5/16x2 WASHER LOCK EXT LAG SCREW WH 5/16x2 8x19 (2 PLCS)
  • Page 43 H7 - FLOOR SUPPORT BLOCK - W103909 1"x3 3/8"x3 3/8" (24x86x86) STEP 7 SCREW PFH SCREW PFH 8x2 (8 PLCS)
  • Page 44 F71 - STANDARD ANGLE BRACE - W100689 1 3/8"x2 3/8"x13" (36x60x330) STEP 8 NUT BARREL WH 5/16x7/8 (2 PLCS) WASHER LOCK EXT 12x19 (2 PLCS) WASHER LOCK EXT 8x19 BOLT WH (2 PLCS) 5/16x1-1/2 BOLT WH 5/16x1-1/2 LAG SCREW (2 PLCS) WH 5/16x2 WASHER LOCK EXT...
  • Page 45 F71 - STANDARD ANGLE BRACE - W100689 1 3/8"x2 3/8"x13" (36x60x330) STEP 9 BOLT WH 5/16x1-1/2 (2 PLCS) WASHER LOCK EXT 8x19 (2 PLCS) BOLT WH 5/16x1-1/2 LAG SCREW WH 5/16x2 WASHER NUT BARREL WH 5/16x7/8 LOCK EXT (2 PLCS) 12x19 WASHER LOCK EXT 12x19 WASHER...
  • Page 46 H4 - FLOOR SUPPORT - W103900 1"x3 3/8"x37 1/2" (24x86x952) STEP 10 SCREW PFH SCREW PFH 8x2 (4 PLCS)
  • Page 47 M15 - FLOOR BOARD - W103846 5/8"x3 3/8"x40 1/2" (16x86x1028) (2) FP1 - FLOOR PANEL - W103845 STEP 11 SCREW PFH (53) 8x1-1/2 SCREW PFH 8x1-1/2 (53 PLCS)
  • Page 48 M8 - ANGLE BRACE - W103847 M5 - WALL RAIL - W103843 5/8"x3 3/8"x37 5/8" (16x86x957) 5/8"x3 3/8"x37 1/2" (16x86x952) STEP 12 BOLT WH 5/16x1 BOLT WH 5/16x2-1/4 NUT BARREL WH 5/16x5/8 WASHER LOCK EXT WASHER 12x19 LOCK EXT 8x19 NUT BARREL WH 5/16x7/8 NUT BARREL WH 5/16x7/8...
  • Page 49 M3 - WALL BOARD - W103904 5/8"x3 3/8"x18 1/8" (16x86x460) STEP 13 SCREW PFH (20) 8x1-1/8 SCREW PFH 8x1-1/8 (20 PLCS) 2 5/16" (6 SPCS) REFERENCE VIEW...
  • Page 50 M1 - WALL RAIL - W103908 5/8"x3 3/8"x8 1/4" (16x86x208) STEP 14 LAG SCREW WH 5/16x2 WASHER LOCK EXT 8x19 WASHER LOCK EXT 8x19 (2 PLCS) LAG SCREW WH 5/16x2 (2 PLCS)
  • Page 51 M2 - WALL RAIL - W103907 5/8"x3 3/8"x9 1/8" (16x86x232) STEP 15 BOLT WH 5/16x1-1/2 WASHER LOCK EXT 8x19 WASHER LOCK EXT 12x19 NUT BARREL WH 5/16x7/8 (2 PLCS) WASHER LOCK EXT 12x19 (2 PLCS) NUT BARREL WH 5/16x7/8 BOLT WH 5/16x1-1/2 (2 PLCS) WASHER LOCK EXT 8x19 (2 PLCS)
  • Page 52 M1 - WALL RAIL - W103908 5/8"x3 3/8"x8 1/4" (16x86x208) STEP 16 LAG SCREW WH 5/16x2 WASHER LOCK EXT 8x19 WASHER LOCK EXT 8x19 (2 PLCS) LAG SCREW WH 5/16x2 (2 PLCS)
  • Page 53 M13 - WALL BOARD - W103911 M12 - DOUBLE ARCHED WALL BOARD - W103910 5/8"x3 3/8"x38 7/8" (16x86x986) 5/8"x3 3/8"x38 7/8" (16x86x986) STEP 17 M13 M12 SCREW PFH 8x1-1/8 SCREW PFH 8x1-1/8 SCREW PFH (10 PLCS) (20) (10 PLCS) 8x1-1/8 1 13/16"...
  • Page 54 N1 - WALL BOARD - W103906 M12 - DOUBLE ARCHED WALL BOARD - W103910 5/8"x2 3/8"x38 7/8" (16x60x986) 5/8"x3 3/8"x38 7/8" (16x86x986) STEP 18 SCREW PFH SCREW PFH 8x1-1/8 (20) SCREW PFH 8x1-1/8 8x1-1/8 (10 PLCS) (10 PLCS) T-NUT 1/4 1 13/16"...
  • Page 55 M11 - WALL BOARD - W103905 M12 - DOUBLE ARCHED WALL BOARD - W103910 5/8"x3 3/8"x38 7/8" (16x86x986) 5/8"x3 3/8"x38 7/8" (16x86x986) STEP 19 M11 M12 SCREW PFH (20) 8x1-1/8 SCREW PFH 8x1-1/8 SCREW PFH 8x1-1/8 (10 PLCS) (10 PLCS) T-NUT 1/4 1 13/16"...

  • Page 56: Table Of Contents

    M5 - WALL RAIL - W103843 5/8"x3 3/8"x37 1/2" (16x86x952) STEP 20 BOLT WH 5/16x1-1/2 WASHER LOCK EXT 12x19 WASHER LOCK EXT 8x19 NUT BARREL WH 5/16x7/8 NUT BARREL WH 5/16x7/8 (2 PLCS) WASHER LOCK EXT 12x19 (2 PLCS) BOLT WH 5/16x1-1/2 (2 PLCS) WASHER LOCK EXT 8x19 (2 PLCS)
  • Page 57 M4 - WALL BOARD - W103903 5/8"x3 3/8"x25 3/4" (16x86x654) STEP 21 SCREW PFH 8x1-1/8 (20 PLCS) SCREW PFH (20) 8x1-1/8 1 13/16" 2 5/16" (6 SPCS) REFERENCE VIEW...
  • Page 58 M14 - END TARP SUPPORT - W103849 5/8"x3 3/8"x39 3/8" (16x86x1000) STEP 22 SCREW PFH 8x2 (8 PLCS) SCREW PFH...

  • Page 59: Washer (2) Lock Ext

    H3 - VERTICAL TARP SUPPORT - W103901 1"x3 3/8"x33 1/2" (24x86x850) STEP 23 WASHER LOCK EXT 12x19 BOLT WH 5/16x1-1/2 NUT BARREL WASHER LOCK EXT 12x19 WH 5/16x7/8 WASHER (2 PLCS) LOCK EXT 8x19 NUT BARREL WH 5/16x7/8 (2 PLCS) BOLT WH 5/16x1-1/2 (2 PLCS) WASHER LOCK EXT 8x19...

  • Page 60: Washer Lock Ext 8X19 (2 Plcs)

    H3 - VERTICAL TARP SUPPORT - W103901 1"x3 3/8"x33 1/2" (24x86x850) STEP 24 WASHER LOCK EXT 12x19 BOLT WH 5/16x1-1/2 NUT BARREL WH 5/16x7/8 WASHER WASHER LOCK EXT 12x19 LOCK EXT (2 PLCS) 8x19 WASHER LOCK EXT 8x19 NUT BARREL WH 5/16x7/8 (2 PLCS) (2 PLCS) BOLT WH 5/16x1-1/2...
  • Page 61 M7 - TOP TARP SUPPORT - W103902 5/8"x3 3/8"x37 1/2" (16x86x952) STEP 25 SCREW PFH 8x2 (4 PLCS) SCREW PFH...
  • Page 62 WT - TARP .4x936x2493 - A100402 1/64"x36 7/8"x98 1/8" (.4x936x2493) STEP 26 SCREW PWH (11) 8x5/8 SCREW PWH 8x5/8 (3 PLCS) SCREW PWH 8x5/8 (4 PLCS) SCREW PWH 8x5/8 (4 PLCS)
  • Page 63 EA - HAND GRIP YELLOW PLASTIC - A100043 STEP 27 BOLT WH 1/4x1 WASHER LOCK EXT 6x15 WASHER LOCK EXT 6x15 (4 PLCS) BOLT WH 1/4x1 (4 PLCS)
  • Page 64 EA - HAND GRIP YELLOW PLASTIC - A100043 STEP 28 BOLT WH 1/4x1 WASHER LOCK EXT 6x15 WASHER LOCK EXT 6x15 (4 PLCS) BOLT WH 1/4x1 (4 PLCS)
  • Page 65 H5 - SANDBOX SEAT SUPPORT - W103913 1"x3 3/8"x5 3/8" (24x86x136) STEP 29 SCREW PFH 8x1-1/2 REFERENCE VIEW SCREW PFH 8x1-1/2 (4 PLCS) 15/16" 3 5/8"...
  • Page 66 H5 - SANDBOX SEAT SUPPORT - W103913 1"x3 3/8"x5 3/8" (24x86x136) STEP 30 SCREW PFH 8x1-1/2 REFERENCE VIEW SCREW PFH 8x1-1/2 (4 PLCS) 1 5/8" 15/16"...
  • Page 67 H5 - SANDBOX SEAT SUPPORT - W103913 1"x3 3/8"x5 3/8" (24x86x136) STEP 31 SCREW PFH 8x1-1/2 REFERENCE VIEW SCREW PFH 8x1-1/2 (4 PLCS) 1 5/8" 15/16"...
  • Page 68 H5 - SANDBOX SEAT SUPPORT - W103913 1"x3 3/8"x5 3/8" (24x86x136) STEP 32 SCREW PFH 8x1-1/2 REFERENCE VIEW SCREW PFH 8x1-1/2 (4 PLCS) 3 5/8" 15/16"...
  • Page 69 G2 - SANDBOX SEAT - W103914 1"x5 1/4"x15" (24x134x380) STEP 33 SCREW PFH SCREW PFH 8x2 (4 PLCS)
  • Page 70 G2 - SANDBOX SEAT - W103914 1"x5 1/4"x15" (24x134x380) STEP 34 SCREW PFH SCREW PFH 8x2 (4 PLCS)
  • Page 71 WZ - BUNGEE CORD BUTTON - A100404 STEP 35 SCREW PFH 1 5/16" 1 5/16" 4 1/4" 4 1/4" SCREW PFH 8x1 (2 PLCS) 1 5/16" 1 5/16" 2 1/2" 2 1/2" 2 1/2" 2 1/2" SCREW PFH 8x1 1 5/16" (2 PLCS) 1 5/16"...
  • Page 72 WY - MESH SANDBOX COVER - A100403 XA - SANDBOX BUNGEE - A100405 STEP 36...
  • Page 73 (1) 4 FT LADDER ASSEMBLY STEP 37 BOLT WH 5/16x1 WASHER WASHER LOCK EXT 12x19 LOCK EXT (2 PLCS) 12x19 WASHER NUT BARREL WH 5/16x5/8 LOCK EXT (2 PLCS) 8x19 NUT BARREL WH 5/16x5/8 BOLT WH 5/16x1 (2 PLCS) WASHER LOCK EXT 8x19 (2 PLCS)
  • Page 74 (1) 4 FT WAVY ROCKWALL ASSEMBLY STEP 38 WASHER LOCK EXT 12x19 BOLT WH (2 PLCS) 5/16x1 NUT BARREL WH 5/16x7/8 WASHER (2 PLCS) LOCK EXT 12x19 WASHER LOCK EXT 8x19 NUT BARREL WH 5/16x7/8 BOLT WH 5/16x1 (2 PLCS) WASHER LOCK EXT 8x19 (2 PLCS) TOP ROCK WALL BOARD...
  • Page 75 (1) 8 FT SLIDE ASSEMBLY STEP 39 3 3/4" BOLT WH 6 1/4" 5/16x1/2 2 5/8" WASHER LOCK EXT 12x19 1 9/16" NUT BARREL 1 3/4" WH 5/16x5/8 DRILLING PATTERN USE A 7/16" DRILL BIT BOLT WH 5/16x1/2 (3 PLCS) WASHER LOCK EXT 12x19 (3 PLCS) NUT BARREL WH 5/16x5/8...
  • Page 76 (1) 4 FT EXTENDED SWING BEAM ASSEMBLY HC - BYD ID TAG (LARGE) 2011 WITH AGES - A100164 STEP 40 WASHER SPLIT 5/16 BOLT HEX 5/16x1-1/4 WASHER FLAT 8x27 BOLT HEX 5/16x1-1/4 SCREW PWH (4 PLCS) 8x5/8 WASHER SPLIT 5/16 (4 PLCS) WASHER FLAT 8x27 (4 PLCS)
  • Page 77 STEP 41 WASHER FLAT 8x27 (2 PLCS) DG - CHAIN GREEN 38.5" NUT LOCK 5/16 (4 PLCS) (2 PLCS) WASHER BOLT WH 5/16x5 3/4 FLAT 8x27 (2 PLCS) DK - GLIDER ARM BYD GREEN (2 PLCS) NUT LOCK 5/16 DL - GLIDER SEAT YELLOW BOLT WH (1 PLC) 5/16x5 3/4...
  • Page 78 KC - METAL GROUND STAKE BROWN - A100178 Anchoring Instructions STEP 42 NOTE: BOLT WH 1/4x1/2" FAILURE TO USE GROUND STAKES CAN VOID WARRANTY & CAUSE INJURY! BOLT WH 1/4x1 STAKE A NUT BARREL WH 1/4x5/8 GLIDER WASHER STAKE A FLAT 9x18 STAKE B SWING...
  • Page 79 Limited Warranty. In addition, Backyard Discovery will replace any parts within the first 30 days from date of purchase found to be missing from or damaged in the original packaging.
