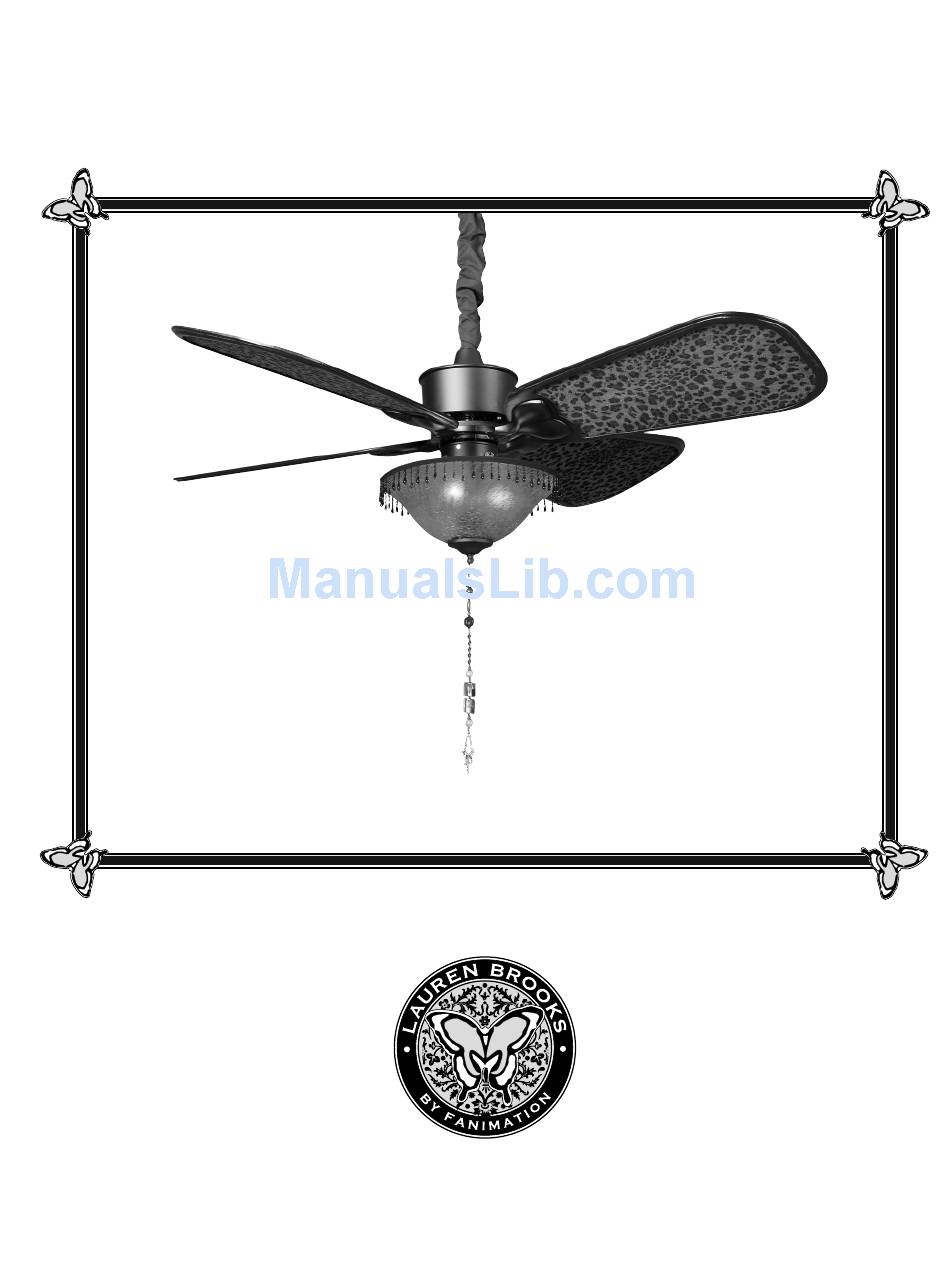

Page 1: Ceiling Fan
Seaney’s Voyage ™ Ceiling Fan Net Weight of Fan Ass’y with Light Kit Ass’y: 25 lbs (11.35 kg) Model No. LB320BL OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS... -
Page 2: Table Of Contents
Fanimation. 7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty. 8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must ac- company authorized returns and must be sent freight prepaid to Fanimation. -
Page 3: Tools Needed For Assembly
Fanimation. Substitution of parts or accessories not designated for use with this product by Fanimation could result in personal injury or property damage. Contact your retail store for missing or damaged parts. -
Page 4: Electrical And Structural Requirements
Electrical and Structural Requirements Your new ceiling fan will require a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit. The outlet box must be securely anchored and capable of withstanding a load of at least 50 lbs. Figure 1 depicts different structural configurations that may be used for mounting the outlet box. - Page 5 How to Assemble Your Ceiling Fan (cont’d) 6. Route wires through opening in Motor Coupling Cover. Position Motor Coupling Cover on fan shown with open side facing down. (Figure 2) 7. Route wires through opening in Canopy. Canopy on fan shown with open side facing up. (Figure 3) 8.
-
Page 6: How To Hang Your Ceiling Fan
▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before hanging. NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation. -
Page 7: How To Wire Your Ceiling Fan - Pull Chain
How to Wire Your Ceiling Fan - Pull Chain If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. ▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. -
Page 8: Installing The Canopy Housing & Downrod Fabric Sleeve
Installing the Canopy Housing & Downrod Fabric Sleeve NOTE: This step is applicable after the neccessary wiring is completed. (see pages 7) ▲WARNING To avoid possible fire or shock, make sure that the electrical wires are completely inside the canopy housing and not pinched between the housing and the ceiling. -
Page 9: Installing Light Kit Assembly
▲WARNING Turning off wall switch is not sufficent. possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. All wiring must be in accordance with National and Local codes and the ceiling fan must be properly grounded as a precaution against possible electrical shock. - Page 10 Installing Light Kit Assembly (cont’d) 4. Install three 60 watt candelabra (not Included). (Figure 4) 5. Route the fan pull chain thru the hole on the fitter flange as shown. (Figure 5) 6. Install and secure the glass bowl with bowl cap and finial nut, do not over tighten.
-
Page 11: Maintenance
Periodic cleaning of your new ceiling fan is the only maintenance that is needed. When cleaning, use only a soft brush or lint free cloth to avoid scratching the fi nish. Abrasive cleaning agents are not required and should be avoided to prevent damage to fi... -
Page 12: Parts List
Before discarding packaging materials, be certain all parts have been removed When ordering repair parts, always give the following information: Contact your retail store for repair parts. Parts List Model #LB320BL Description How To Order Parts • Part Number • Part Description •... -
Page 13: Exploded-View Drawing
Seaney’s Voyage ™ LB320BL Exploded-View Figure 1 NOTE: The illustration shown is not to scale or its actual confi guration may vary... -
Page 14: Trouble Shooting
For your own safety turn off power at fuse box or circuit breaker before trouble shooting your fan. Trouble 1. FAN WILL NOT START 1. Fuse or circuit breaker blown. 2. Loose power line connections to the fan, or loose switch wire connections in the switch housing. - Page 16 10983 Bennett Parkway Zionsville, IN 46077 Toll Free (888) 567-2055 FAX (866) 482-5215 Outside U.S. call (317) 733-4113 Visit Our Website @ www.fanimation.com Copyright 2007 Fanimation 2007/05 Lauren Brooks™ & Lauren Brooks Collection™ are trademarks of Lauren Brooks, Inc.
