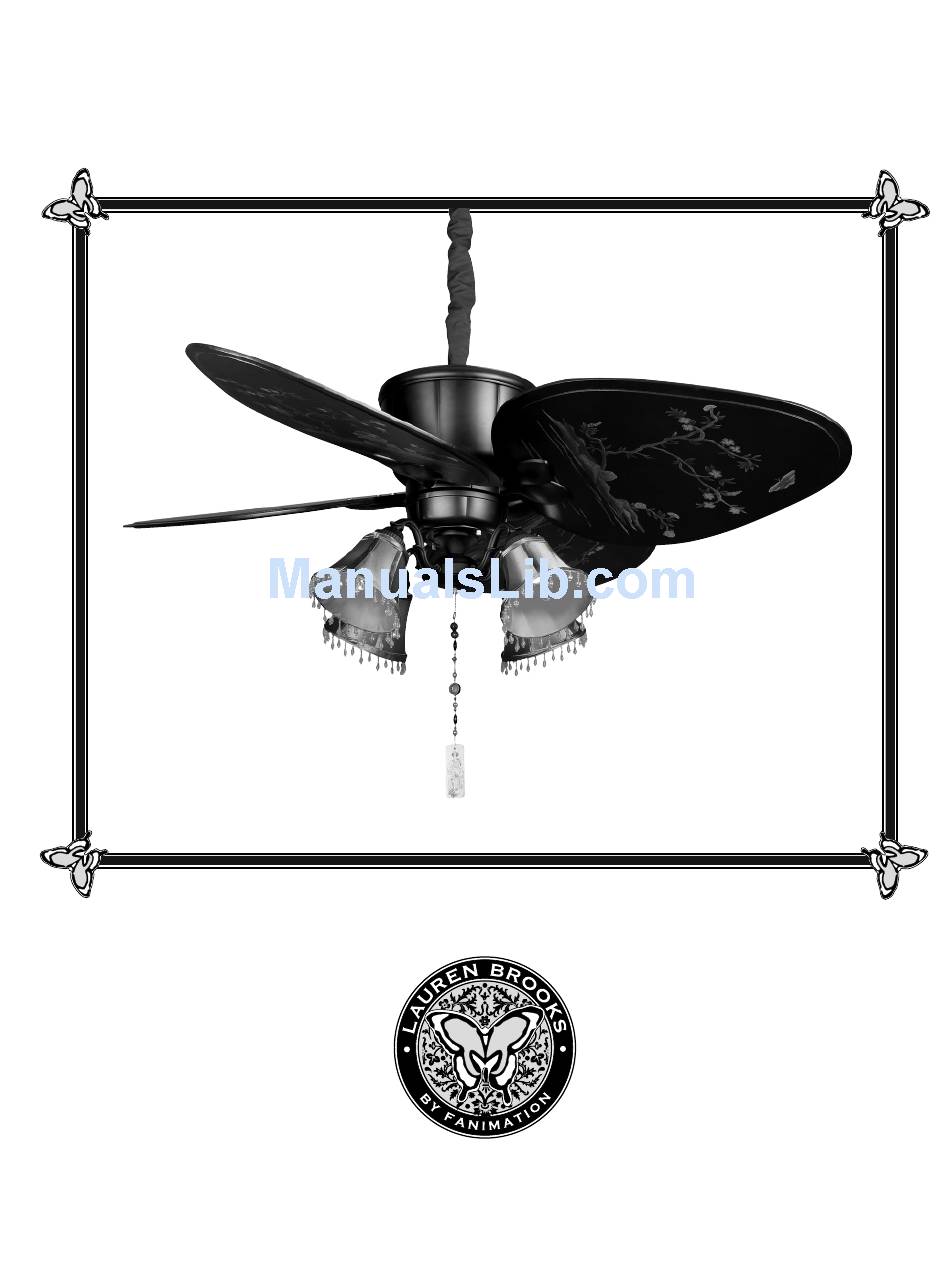

Page 1: Ceiling Fan
Michael David’s Adventure ™ Ceiling Fan Net Weight of Fan Ass’y with Light Kit Ass’y: 34 lbs (15.42 kg) Model No. LB1820BL OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS... -
Page 2: Table Of Contents
Fanimation. 7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty. 8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must accompany authorized returns and must be sent freight prepaid to Fanimation. -
Page 3: Unpacking Instructions
Fanimation. Substitution of parts or accessories not designated for use with this product by Fanimation could result in personal injury or property damage. Contact your retail store for missing or damaged parts. -
Page 4: Electrical And Structural Requirements
Electrical and Structural Requirements Your new ceiling fan will require a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit. The outlet box must be securely anchored and capable of withstanding a load of at least 50 lbs. Figure 1 depicts different structural configurations that may be used for mounting the outlet box. - Page 5 How to Assemble Your Ceiling Fan (cont'd) The Clevis Pin must go through the holes in the Downrod Support and the holes in the Downrod. Be sure to push the straight leg of the Hairpin Clip through the hole near the end of the Clevis Pin until the curved portion of the Hairpin Clip snaps around the Clevis pin.
-
Page 6: How To Hang Your Ceiling Fan
How to Hang Your Ceiling Fan ▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before hanging. NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation. -
Page 7: How To Wire And Operate Your C22 Remote Control
How to Wire and Operate Your C22 Remote Control If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. NOTE: If fan or supply wires are different colors than indicated, have this unit installed by a qualifi... -
Page 8: How To Wire And Operate Your C23 Wall Control
How to Wire and Operate Your C23 Wall Control If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. NOTE: If fan or supply wires are different colors than indicated, have this unit installed by a qualifi... -
Page 9: Installing The Canopy Housing & Downrod Fabric Sleeve
Installing the Canopy Housing & Downrod Fabric Sleeve NOTE: This step is applicable after the neccessary wiring is completed. (see page 7 or 8) ▲WARNING To avoid possible fire or shock, make sure that the electrical wires are completely inside the canopy housing and not pinched between the housing and the ceiling. -
Page 10: Installing Light Kit Assembly
▲WARNING Turning off wall switch is not sufficent. possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. All wiring must be in accordance with National and Local codes and the ceiling fan must be properly grounded as a precaution against possible electrical shock. -
Page 11: Maintenance
Installing Light Kit Assembly (cont’d) 5. Carefully push all wires back into cover switch housing of fan. Then fasten assembled cover switch housing/fi tter with two screws provided. (Figure 4) 6. Install and secure four fitter shades as shown. (Figure 5) 7. -
Page 12: Parts List
Before discarding packaging materials, be certain all parts have been removed When ordering repair parts, always give the following information: Contact your retail store for repair parts. Parts List Model #LB1820BL Description How To Order Parts • Part Number • Part Description •... -
Page 13: Exploded-View Drawing
NOTE: The illustration shown is not to scale or its actual confi guration may vary. Wires partially removed for clarity. Michael David’s Adventure Figure 1 ™ LB1820BL Exploded-View... -
Page 14: Trouble Shooting
For your own safety turn off power at fuse box or circuit breaker before trouble shooting your fan. Trouble 1. FAN WILL NOT START 1. Fuse or circuit breaker blown. 2. Loose power line connections to the fan, or loose switch wire connections in the switch housing. - Page 16 10983 Bennett Parkway Zionsville, IN 46077 Toll Free (888) 567-2055 FAX (866) 482-5215 Outside U.S. call (317) 733-4113 Visit Our Website @ www.fanimation.com Copyright 2007 Fanimation 2007/05 Lauren Brooks™ & Lauren Brooks Collection™ are trademarks of Lauren Brooks, Inc.
