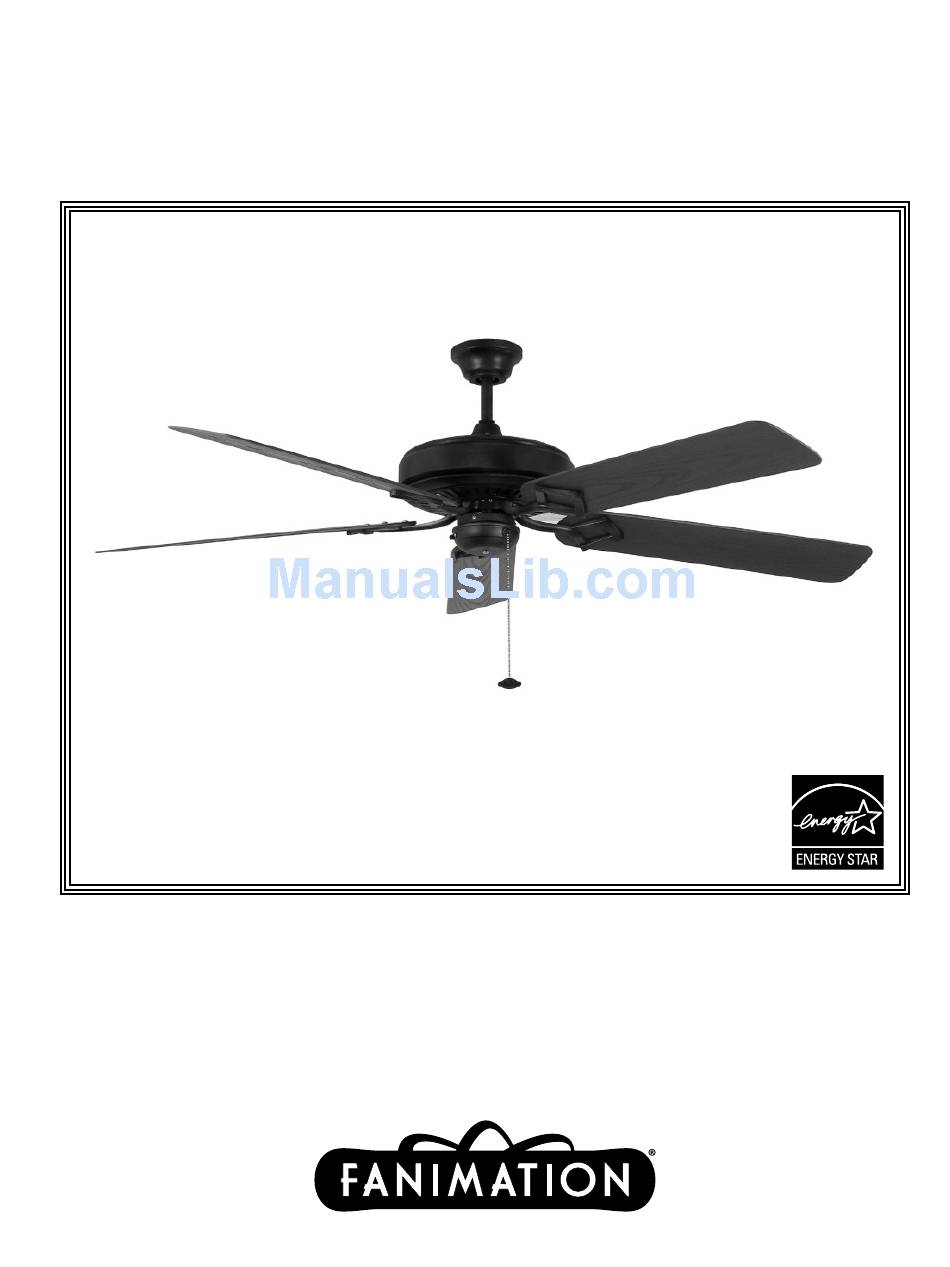

- Page 1 The Edgewood ™ Wet Location Ceiling Fan Net Weight 14.56 kg (32.1 lbs) Model No. TF970TS OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Fanimation. 7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty. 8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must ac- company authorized returns and must be sent freight prepaid to Fanimation. -
Page 3: Tools Needed For Assembly
Fanimation. Substitution of parts or accessories not designated for use with this product by Fanimation could result in personal injury or property damage. Contact your retail store for missing or damaged parts. -
Page 4: Energy Effi Cient Use Of Ceiling Fans
If ceiling height allows, install the fan 8 - 9 feet above the floor for optimal airflow. Consult your Fanimation Retailer for optional mounting accessories. Turn Off When Not in the Room Ceiling fans cool people, not rooms. If the room is unoccupied, turn off the ceiling fan to save energy. - Page 5 How to Assemble Your Ceiling Fan (cont’d) 1. Prior to assembly, set aside and save the hardware bags packed in the packing. 2. Remove the Hanger Ball by loosening the setscrew in the Hanger Ball until the ball falls freely down the Downrod.
-
Page 6: How To Hang Your Ceiling Fan
▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before hanging. NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation. -
Page 7: How To Wire Your Ceiling Fan
If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. ▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation. -
Page 8: Assembling And Mounting The Fan Blades
Assembling and Mounting the Fan Blades Assembling and Mounting the Fan Blades INSTALLATION NOTE Do not connect fan blades until the fan is completely installed. Installing the fan with blades assembled may result in damage to the fan blades. Remove and discard the (rubber) motor “stops” by removing the five screws. -
Page 9: Operating Instructions - Pull Chain
Installing the Switch Cup Assembly (cont’d) 2. Assemble the Switch Cup Assembly onto the Housing Adapter with three screws. (Figure 2) 3. Restore power and your fan is now wired to be turned on and off with the pull chain. Operating Instructions - Pull Chain 1. -
Page 10: Parts List
Ref. # Hanger Bracket Assembly Downrod/Hanger Ball Assembly Containing: Hanger Ball Downrod Clevis Pin Bridge Pin Ceiling Canopy Canopy Screw Cover Motor Coupling Cover Fan Motor Assembly Switch Cup with Wire Harness (AP097045SS) Blade Holders (Set of 5) Blades (Set of 5) Hardware Bag Containing: Balance Kit (BALKT) Wire Connectors (4) -
Page 11: Exploded-View Illustration
TF970TS Wet Location Fan Exploded-View NOTE: The illustration shown is not to scale or its actual parts confi guration may vary Figure 1... -
Page 12: Trouble Shooting
For your own safety turn off power at fuse box or circuit breaker before trouble shooting your fan. Trouble 1. FAN WILL NOT START 1. Fuse or circuit breaker blown. 2. Loose power line connections to the fan, or loose switch wire connections in the switch housing. - Page 14 10983 Bennett Parkway Zionsville, IN 46077 (888) 567-2055 FAX (866) 482-5215 Outside U.S. call (317) 733-4113 Visit Our Website @ www.fanimation.com Copyright 2007 Fanimation 2007/11...
