Summary of Contents for Fanimation Edgewood TF600 Series
Page 1

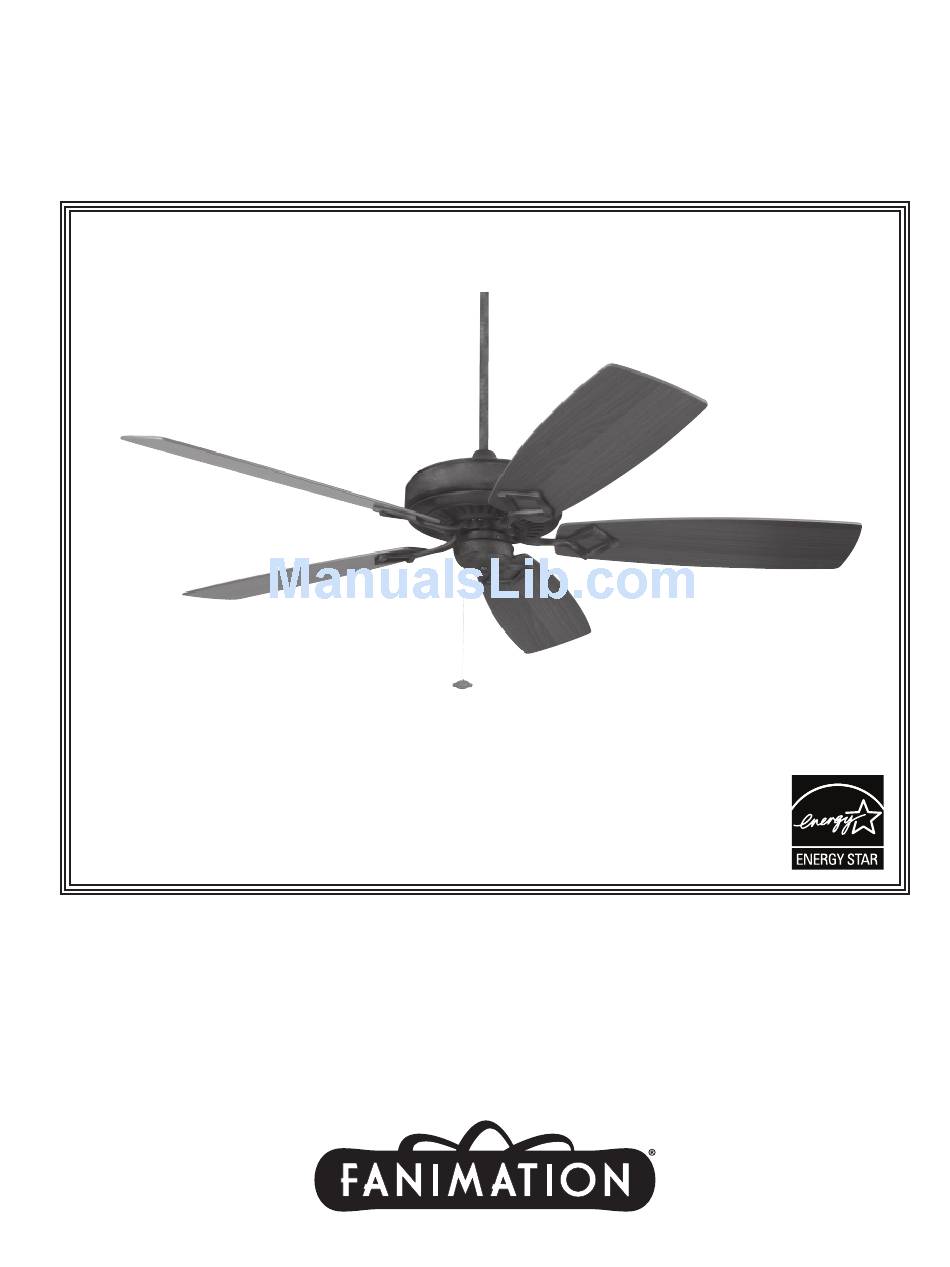

The Edgewood ™ Decorative / Deluxe Ceiling Fan Model TF600; Net Weight 9.53 kg (21 lbs) Model TF700; Net Weight 13.15 kg (29 lbs) Model No. TF600**, TF700** OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS...
Fanimation. 7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty. 8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must ac- company authorized returns and must be sent freight prepaid to Fanimation.
Fanimation. Substitution of parts or accessories not designated for use with this product by Fanimation could result in personal injury or property damage. Contact your retail store for missing or damaged parts.
If ceiling height allows, install the fan 8 - 9 feet above the floor for optimal airflow. Consult your Fanimation Retailer for optional mounting accessories. Turn Off When Not in the Room Ceiling fans cool people, not rooms. If the room is unoccupied, turn off the ceiling fan to save energy.
How to Assemble Your Ceiling Fan 1. Prior to assembly, set aside and save the hardware bags packed in the packing. 2. Remove the Hanger Ball by loosening the setscrew in the Hanger Ball until the ball falls freely down the Downrod.
▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before hanging. NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation.
If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. ▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation.
Assembling and Mounting the Fan Blades INSTALLATION NOTE Do not connect fan blades until the fan is completely installed. Installing the fan with blades assembled may result in damage to the fan blades. 1. Lay flat side of blade holder arm on a flat surface with the inside of the blade holder arm facing up.
Installing the Switch Cup Assembly (cont’d) 2. Assemble the Switch Cup Assembly onto the Housing Adapter with three screws. (Figure 2) 3. Restore power and your fan is now wired to be turned on and off with the pull chain. Operating Instructions - Pull Chain 1.
Before discarding packaging materials, be certain all parts have been removed When ordering repair parts, always give the following information: Contact your retail store for repair parts. Parts List Models #TF600** / 700** TF600 Part # APGAC110BL ADRAC45 P10040** AP10005...
For your own safety turn off power at fuse box or circuit breaker before trouble shooting your fan. Trouble 1. FAN WILL NOT START 1. Fuse or circuit breaker blown. 2. Loose power line connections to the fan, or loose switch wire connections in the switch housing.
