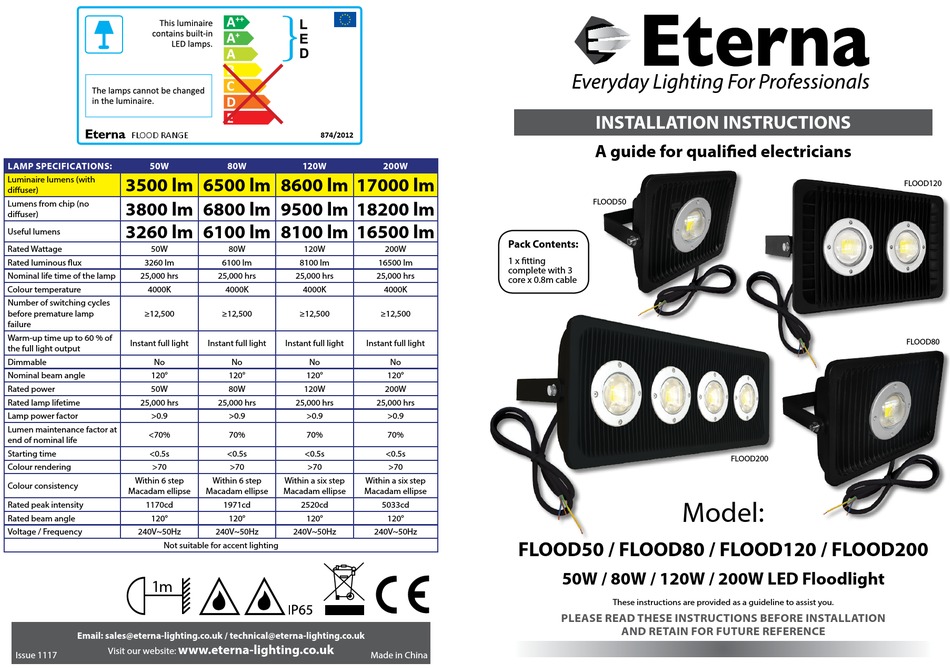

Eterna FLOOD50 Installation Instructions

MODELNO.
FLOOD RANGE
LAMP SPECIFICATIONS: 50W
3500 lm 6500 lm 8600 lm 17000 lm
Luminaire lumens (with
diffuser)
3800 lm 6800 lm 9500 lm 18200 lm
Lumens from chip (no
diffuser)
3260 lm 6100 lm 8100 lm 16500 lm
Useful lumens
Rated Wattage 50W
Rated luminous flux 3260 lm
Nominal life time of the lamp 25,000 hrs
Colour temperature 4000K
Number of switching cycles
before premature lamp ≥12,500
failure
Warm-up time up to 60 % of
Instant full light
the full light output
Dimmable No
Nominal beam angle 120°
Rated power 50W
Rated lamp lifetime 25,000 hrs
Lamp power factor >0.9
Lumen maintenance factor at
<70%
end of nominal life
Starting time <0.5s
Colour rendering >70
Within 6 step
Colour consistency
Macadam ellipse
Rated peak intensity 1170cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Not suitable for accent lighting
1m
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
www.eterna-lighting.co.uk
Visit our website:
Issue 1117
874/2012
80W 120W 200W
80W 120W 200W
6100 lm 8100 lm 16500 lm
25,000 hrs 25,000 hrs 25,000 hrs
4000K 4000K 4000K
≥12,500 ≥12,500 ≥12,500
Instant full light Instant full light Instant full light
No No
120° 120°
80W 120W 200W
25,000 hrs 25,000 hrs 25,000 hrs
>0.9 >0.9
70% 70%
<0.5s <0.5s <0.5s
>70 >70
Within 6 step Within a six step Within a six step
Macadam ellipse Macadam ellipse Macadam ellipse
1971cd 2520cd 5033cd
120° 120°
240V~50Hz 240V~50Hz 240V~50Hz
Made in China
Pack Contents:
1 x fitting
complete with 3
core x 0.8m cable
No
120°
>0.9
70%
>70
120°
FLOOD50 / FLOOD80 / FLOOD120 / FLOOD200

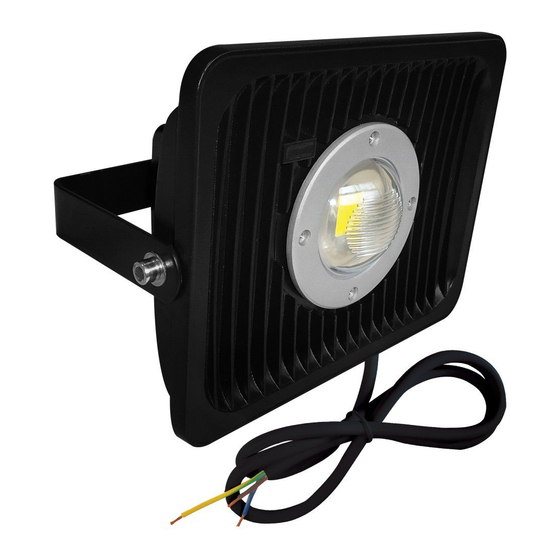

50W / 80W / 120W / 200W LED Floodlight
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
FLOOD50
FLOOD200
Model:
These instructions are provided as a guideline to assist you.
AND RETAIN FOR FUTURE REFERENCE
FLOOD120
FLOOD80
