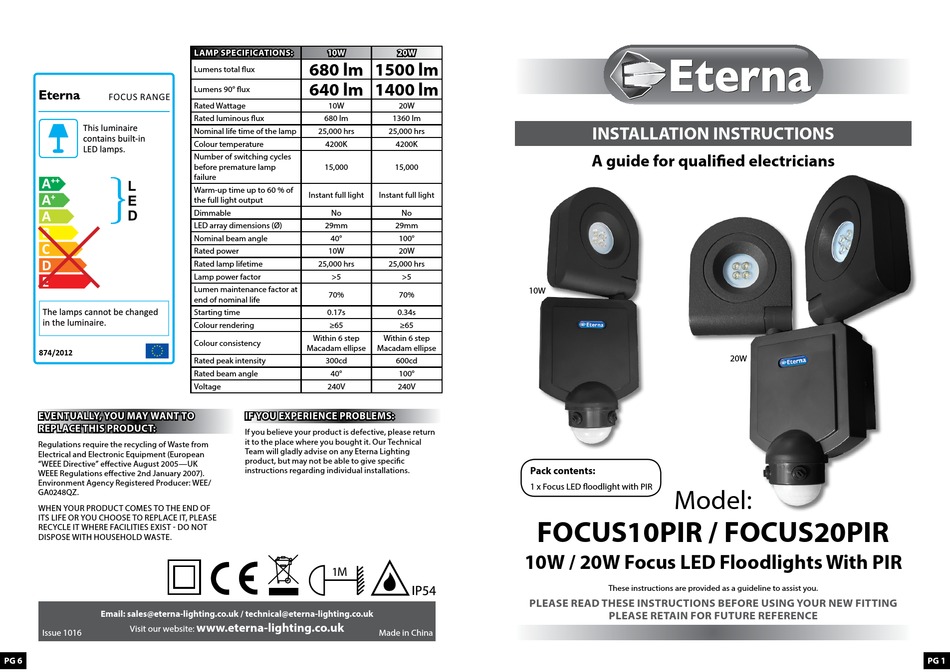

Eterna FOCUS10PIR Installation Instructions

MODELNO.
FOCUS RANGE
874/2012
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
Visit our website:
Issue 1016
PG 6
LAMP SPECIFICATIONS: 10W
680 lm 1500 lm
Lumens total flux
640 lm 1400 lm
Lumens 90° flux
Rated Wattage 10W
Rated luminous flux 680 lm
Nominal life time of the lamp 25,000 hrs
Colour temperature 4200K
Number of switching cycles
before premature lamp 15,000
failure
Warm-up time up to 60 % of
Instant full light
the full light output
Dimmable No
LED array dimensions (Ø) 29mm
Nominal beam angle 40°
Rated power 10W
Rated lamp lifetime 25,000 hrs
Lamp power factor >5
Lumen maintenance factor at
70%
end of nominal life
Starting time 0.17s
Colour rendering ≥65
Within 6 step
Colour consistency
Macadam ellipse
Rated peak intensity 300cd
Rated beam angle 40°
Voltage 240V
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
1M
www.eterna-lighting.co.uk
20W
20W
1360 lm
25,000 hrs
4200K
15,000
Instant full light
No
29mm
100°
20W
25,000 hrs
>5
10W
70%
0.34s
≥65
Within 6 step
Macadam ellipse
600cd
100°
240V
Pack contents:
1 x Focus LED floodlight with PIR
FOCUS10PIR / FOCUS20PIR
10W / 20W Focus LED Floodlights With PIR
PLEASE READ THESE INSTRUCTIONS BEFORE USING YOUR NEW FITTING
Made in China
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
20W
Model:
These instructions are provided as a guideline to assist you.
PLEASE RETAIN FOR FUTURE REFERENCE
PG 1
