Eterna FL124BPIR Safety And Installation Instructions

SPECIFICATION:
• Detection range: max. 12 metres at approx. 180° scan
• Duration time adjustment: (2±0.5) minutes to (4±1) minutes
• Detection circuitry: Passive Infra-Red (PIR)
• Weatherproof: IP44
• Power required: 220-230V ~ 50Hz
• Maximum load: 24W E27 CFLi lamp
• Recommended power supply cable: H05RN-F 3G 1.0mm
• Protection: class I
CLEANING:
• To avoid dust build-up and ensure proper functioning of the floodlight, please wipe the sensor lens
lightly with a damp cloth every 3 months.
• Disconnect the power and clean the exterior only of this fitting with a moist (not wet) cloth.
• Do not use any chemical or abrasive cleaners.
LAMP REPLACEMENT:
• Switch off the electricity at the mains.
• Release front cover.
• Remove and replace lamp making sure it securely screwed into lampholder.
• Replace front safety glass ensuring gasket is fitted correctly and secure with two screws.
• Restore power.
REPLACEMENT LAMP TYPE:
Wattage: 23W
Supply Voltage: 220-230V
Type: 23W ES Helical CFLi
EVENTUALLY, YOU MAY WANT TO REPLACE THIS PRODUCT:
When your product comes to the end of its life or you choose to update or upgrade it by replacing
it, please do not dispose of it with your normal household waste and please recycle where facilities
exist. When you need to dispose of this fitting you can check with your retailer or local authority
for suitable options. New regulations require the recycling of Waste from Electrical and Electronic
Equipment (European "WEEE Directive" effective August 2005—UK WEEE Regulations effective 2nd
January 2007). Environment Agency Registered Producer: WEE/GA0248QZ
IF YOU EXPERIENCE PROBLEMS:
If your product is defective or develops a fault, please return it to the place where you bought it.
You can call our helpline for advice. The helpline will gladly give advice on any aspect of any Eterna
Lighting product but may not be able to give specific instructions regarding individual installations.
If in doubt, consult a qualified electrician.
110909-BT
HELPLINE:
• T: 01933 673 144
• F: 01933 678 083
• E: sales@eterna-lighting.co.uk
2
215mm 100mm
IP44
Visit our website:
www.eterna-lighting.co.uk
SAFETY AND INSTALLATION INSTRUCTIONS
Model:
FL124BPIR

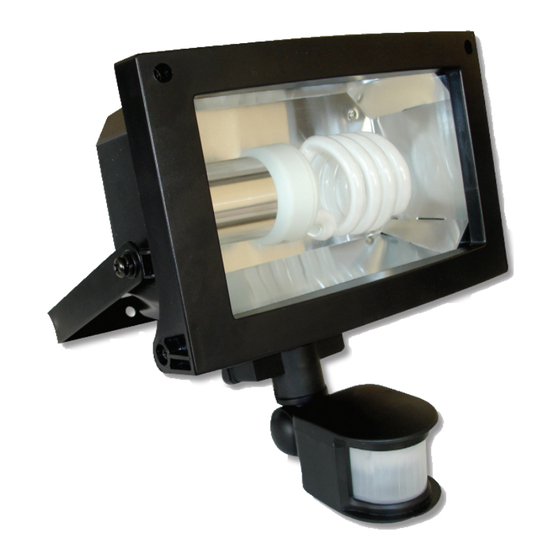

23W Low Energy Floodlight with 180° PIR
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE USING YOUR NEW FITTING
PLEASE RETAIN FOR FUTURE REFERENCE
Pack contents:
PIR Floodlight x 1
23W E27 CFLi Lamp x 1
