TruXedo Lo Pro QT Owner's Manual page 2

clamP
assembly
End
Plug
Rubber
Seal
sTEp 1: Place front of side rails against front of truck box, flush with
box rail and level with each other. Starting at tailgate, evenly
space 3 clamps along each side rail, leaving approximately 8"
on each end.
8"
approx
Note: High Bed Caps: You may need to adjust the height of
the side rails to get a good seal at front and back of cover.
Tighten clamps securely on side
!
WARNINg
rails before driving vehicle.
sTEp 2: For optimum latching performance and cover fit, side rails
must be level. To adjust rails, loosen screws and reposition
male clamps higher or lower. Tighten all clamps.
OUTWARD TILT
LOWER CLAMp
Note: Clamp configurations shown are for reference only and
are not intended to be standard for all pickups.

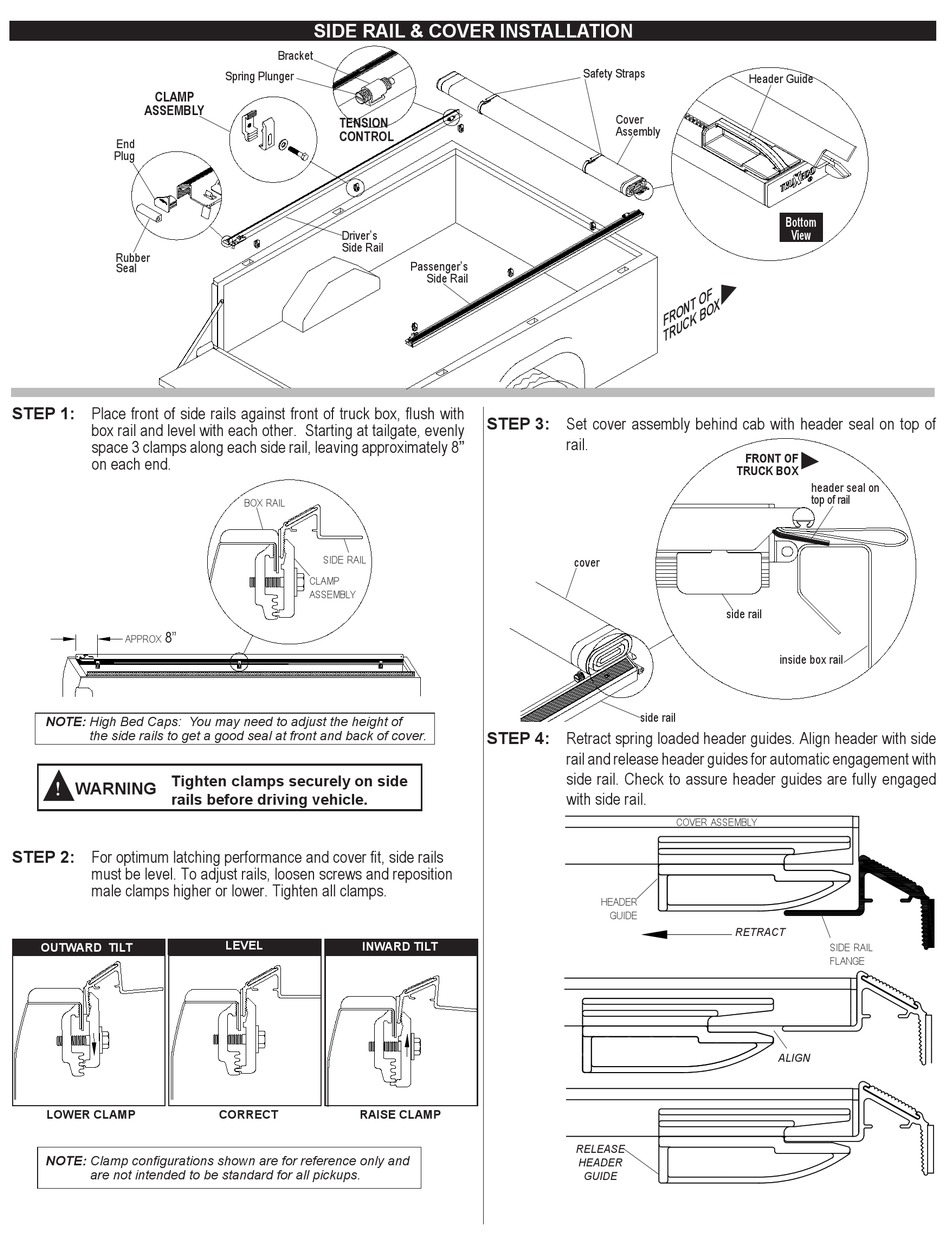

sIDE RAIL & COvER INsTALLATION
Bracket
Spring Plunger
teNsioN
coNtrol
Driver's
Side Rail
box rail
side rail
clamp
assembly
LEvEL INWARD TILT
CORRECT RAIsE CLAMp
Safety Straps
Passenger's
Side Rail
sTEp 3: Set cover assembly behind cab with header seal on top of
rail.
cover
sTEp 4: Retract spring loaded header guides. Align header with side
rail and release header guides for automatic engagement with
side rail. Check to assure header guides are fully engaged
with side rail.
release
header
guide
Header Guide
Cover
Assembly
o f
N t
x
b o
f r o
c k
t r u
froNt of
truck box
side rail
inside box rail
side rail
cover assembly
header
guide
retract
align
bottom
View
header seal on
top of rail
side rail
flange
