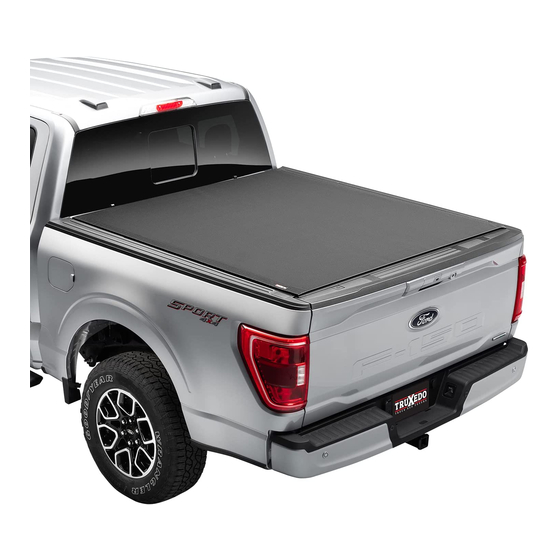

TruXedo TRUXPORT Pro X15 Special Instructions

Ford F150 w/FacTory carg0 raIls sPEcIal INsTrUcTIoNs
1
Install weather seal on cab end corner
plugs:
corner plug
3
Place side rails on pickup bed rails. Assemble clamps. Place rear clamps loosely over
side rails & pickup bed rails. Insert side rail corner plugs into header:
4
Place remaining clamps loosely over side
rails & pickup bed rails:
place three clamps on each
side rail to keep rails in place
TruXedo, Inc.
P.O. Box 1078, 2209 Kellen Gross Dr., Yankton, South Dakota 57078
Call Toll Free: 1-877-TRUXEDO (1-877-878-9336) Fax: (605) 664-9304
Visit Us Online: http://www.truxedo.com
weather seal
clamp shown in place held loosely to the
t X
ru port rail and the ford f
. d
rail o not tighten clamps all the way at
.
this step
rear clamp
truxport
side rail
pickup
bed rail
clamp
assembly
2
Set cover assembly on front bulkhead:
150
cargo
5
Align cover with pickup bed:
front
bulkhead
___ 1 ___
P/N 1117419 Rev A
