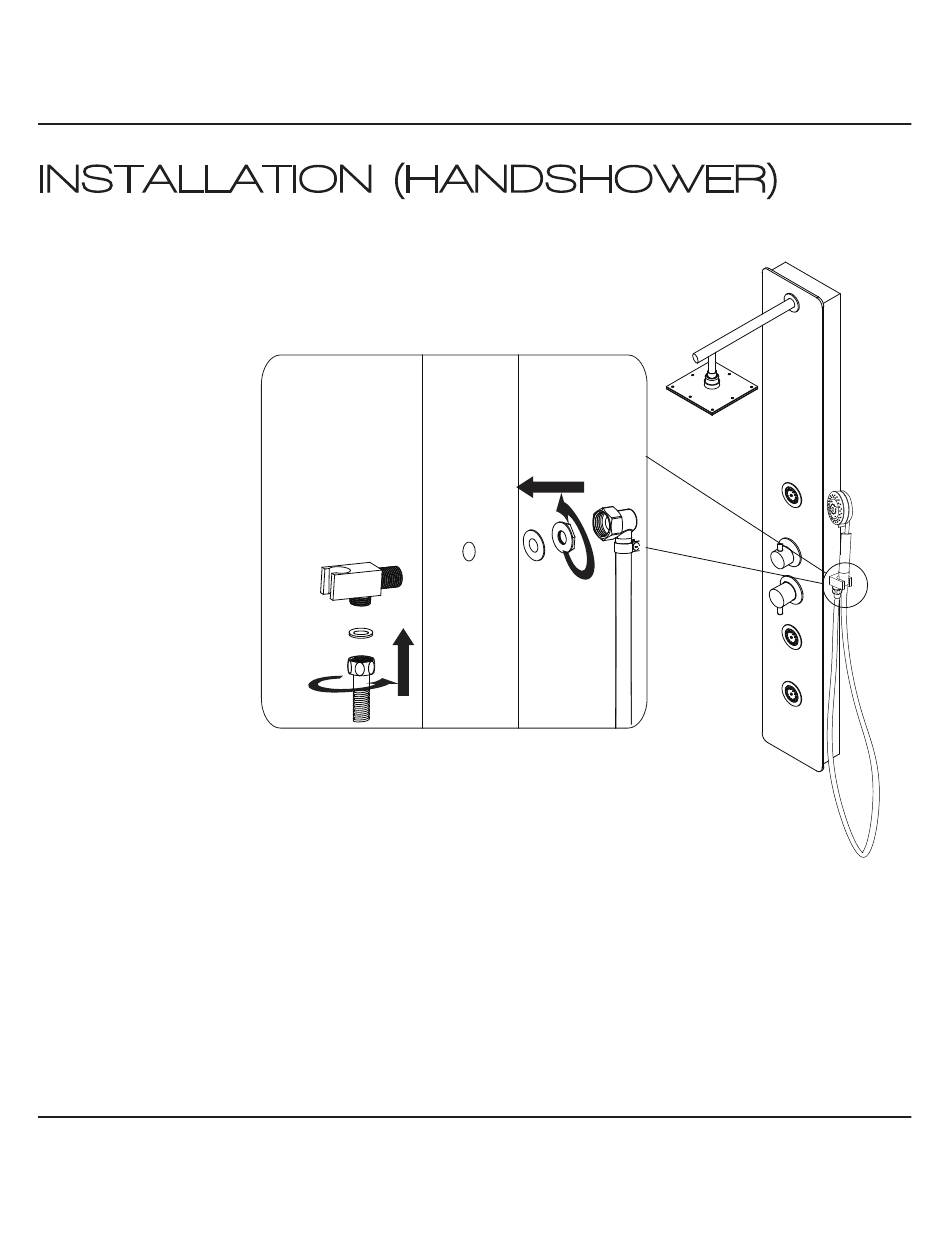

INSTALLATION (HANDSHOWER)
Figure 1
Step 1A
Insert the shower wand holder through the pre-drilled hole on the shower panel.
Step 1B
Install the water supply hose for the shower wand onto the holder, as shown.
Step 1C
Make sure all O-rings are inserted to prevent leakage.
Step 1D
Once the shower panel is fully installed and hung on the bracket, you can install the shower
wand hose to the holder connection.
PERFECTION IS OUR TRADITION™
pg. 6
