Impex NS-908RP Owner's Manual

Magnetic-resistance recumbent bike/hand pulse

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

NS-908RP

Retain This

Manual for

Reference

160601

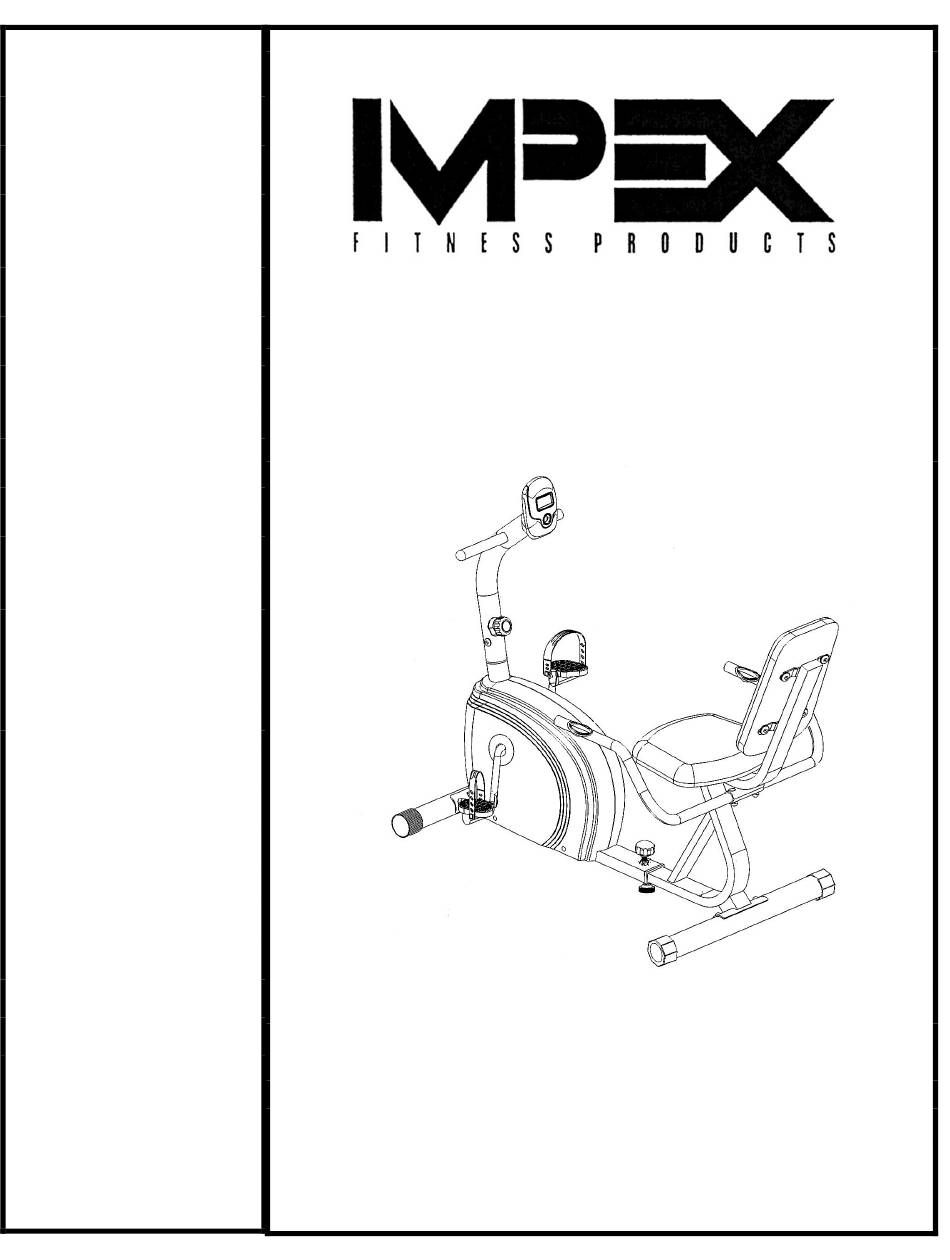

ASSEMBLY &

OWNER'S

MANUAL

Magnetic-Resistance

Recumbent Bike/Hand Pulse

2801 South Towne Ave., Pomona, CA 91766

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

support@impex-fitness.com

NS-908RP

IMPEX

INC.

Table of Contents

Need help?

Do you have a question about the NS-908RP and is the answer not in the manual?

Questions and answers

Summary of Contents for Impex NS-908RP

Page 1 NOTE: Please read all instructions carefully before using this product Table of Contents Safety Notice Magnetic-Resistance Hardware Pack Recumbent Bike/Hand Pulse Assembly Instruction NS-908RP Parts List Warranty Ordering Parts Model NS-908RP Retain This Manual for Reference 160601 ASSEMBLY & ®...
Page 2: Table Of Contents
BEFORE YOU BEGIN Thank you for selecting the MARCY Magnetic-Resistance Recumbent Bike with Hand ® Pulse NS-908RP by IMPEX INC. For your safety and benefit, read this manual carefully before using the bike. As a manufacturer, we are committed to provide you complete customer satisfaction.
Page 3: Important Safety Notices
BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES RESPONSIBILITY PERSONAL INJURY PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
Page 4: Warning Label Placement
NS-908RP WARNING LABEL PLACEMENT The Warning Labels and Caution Label shown here have been placed on the Rear Stabilizer, Main Frame. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown.
Page 5: Hardware Pack, Components For Assembly
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. Description Carriage Bolt M8 x 2 3/8” Curved Washer Ø 5/8” Acorn Nut M8 Carriage Bolt M8 x 1 5/8” Allen Bolt M8 x 5/8” Washer Ø 5/8” Leverage Knob Allen Wrench 6# Box Wrench © IMPEX INC. www.impex-fitness.com...
Page 7: Assembly Instructions
A.) Attach the Front Stabilizer (#5) to the Main Frame (#1). Secure it with two M8 x 2 3/8” Carriage Bolts (#4), two Ø 5/8” Curved Washers (#7), and two Acorn Nuts (#8). NOTE: Ensure to follow Carriage Bolts (#4) insert direction shown in Diagram-1. Securely tighten all Nuts and Bolts. DIAGRAM 1 © IMPEX INC. www.impex-fitness.com...
Page 8 Computer (#10). Connect the Middle Computer Wire (#23) from Front Post to Upper Computer Wire (#31) from Computer. Attach the Computer (#10) to the Front Post (#9). Secure it with two M5 x ⅜” Philips Screws (#37) which are pre-assembled on Computer. © IMPEX INC. www.impex-fitness.com...
Page 10 Carriage Bolts (#4), two Ø 5/8” Curved Washers (#7), and two M8 Acorn Nuts (#8). E.) Place Seat Support (#11) to Sliding Frame. Secure them together with two M8 x 1 5/8” Carriage Bolts (#13), two Ø 5/8” Washers (#25), and two M8 Acorn Nuts (#8). DIAGRAM 3 © IMPEX INC. www.impex-fitness.com...
Page 11 A.) Attach the Backrest Board (#17) to Seat Support (#11). Secure it with four M8 x 5/8” Allen Bolts (#24). B.) Attach the Seat Pad (#18) to Seat Support. Secure it with four M8 x 5/8” Allen Bolts (#24). DIAGRAM 4 © IMPEX INC. www.impex-fitness.com...
Page 12 B.) Connect the Lower Sensor Wire (#36) from the Handle to the Middle Sensor Wire (#35) from the Sliding Frame. C.) Thread the left Pedal (#19) counterclockwise into the left Crank (#27). D.) Thread the Right Pedal (#20) clockwise into the Crank on the other side. DIAGRAM 5 © IMPEX INC. www.impex-fitness.com...
Page 14: Parts List
NS-908RP PARTS LIST PART DESCRIPTION SPEC. QUANTITY Main Frame Rear Stabilizer Rear Stabilizer End Cap M8 x 2 3/8” Carriage Bolt Front Stabilizer Front Stabilizer End Cap Ø 5/8” Curved Washer Acorn Nut Front Post Computer Seat Support Handle M8 x 1 5/8”...
Page 15: Care, Maintenance And Storage
Frame. 4. The seat adjustment is in approximately 1” increment. TRANSPORT The Bike has a pair of Roller Caps on Front Stabilizer. To move, carefully raise the Handle and Rear Stabilizer up from floor, and roll. © IMPEX INC. www.impex-fitness.com...
Page 16: Computer
The maximum signal can be pickup is 99.9 Miles/H FUNCTION TRIP DISTANCE 0.00~99.99 Miles CALORIES 0.1~999 CAL 0~9999 Miles Pulse Rate 40~206 BPM 2pcs of SIZE –AAA or UM –3 BATTERY TYPE OPERATING TEMPERATURE 32°F ~ +102°F STORAGE TEMPERATURE 14°F ~ +140°F © IMPEX INC. www.impex-fitness.com...
Page 17: Exercise Guidelines
Work to your targeted heart rate but it is very important to maintain a steady tempo throughout. The rate of work should be sufficient to raise your heartbeat into the target zone shown on the graph below. © IMPEX INC. www.impex-fitness.com...
Page 18 The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal. © IMPEX INC. www.impex-fitness.com...
Page 19: Warranty
IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
