Wiring Diagram - Swann Advanced Series Quick Start Manual

Outdoor Camera
Electronic
Lock
*Note - The colour indication is only a guide. Make sure that the same coloured wire is attached to the
same terminal on each device, for example - blue wire connects to terminal one on the Doorphone,
also connects to terminal one on the outdoor camera. An additional Doorphone can also be connected
so you can view the video feed from another room. Make sure that the same coloured wire is attached to
the same terminal on the additional Doorphone.
DISTANCE: The recommended distance between the Doorphone and the outdoor
camera is approximately 50ft/15m as per the supplied cable. It is possible to use a
longer cable, however environmental conditions and the quality of the cable used
can affect operation and the maximum reliable distance you can achieve.
CONNECTION: To ensure everything works correctly, we advise you connect
the Doorphone and outdoor camera together before installation to check you
understand the wiring and that everything works as it should.
• Keep the Doorphone device away from water or moisture and dusty areas. Avoid
environments where the Doorphone will be exposed to direct sunlight.
• Keep the Doorphone device away from devices with strong magnetic fields such
as televisions.
• Do not drop the Doorphone as it may cause damage and may void the warranty.
• Do not use solvents or detergents to clean the Doorphone. To clean, lightly
moisten a cloth with water and wipe down the device.
• Do not disassemble the unit for any reason. If the unit fails, please refer to the
back page for contact details.
!
WARNING: When fitting the screws into the wall, make sure you are
not inserting those anywhere near electrical wires, including wires
that may be behind the wall. If you are unsure at all, please get a
professional to check first and install the screws for you.

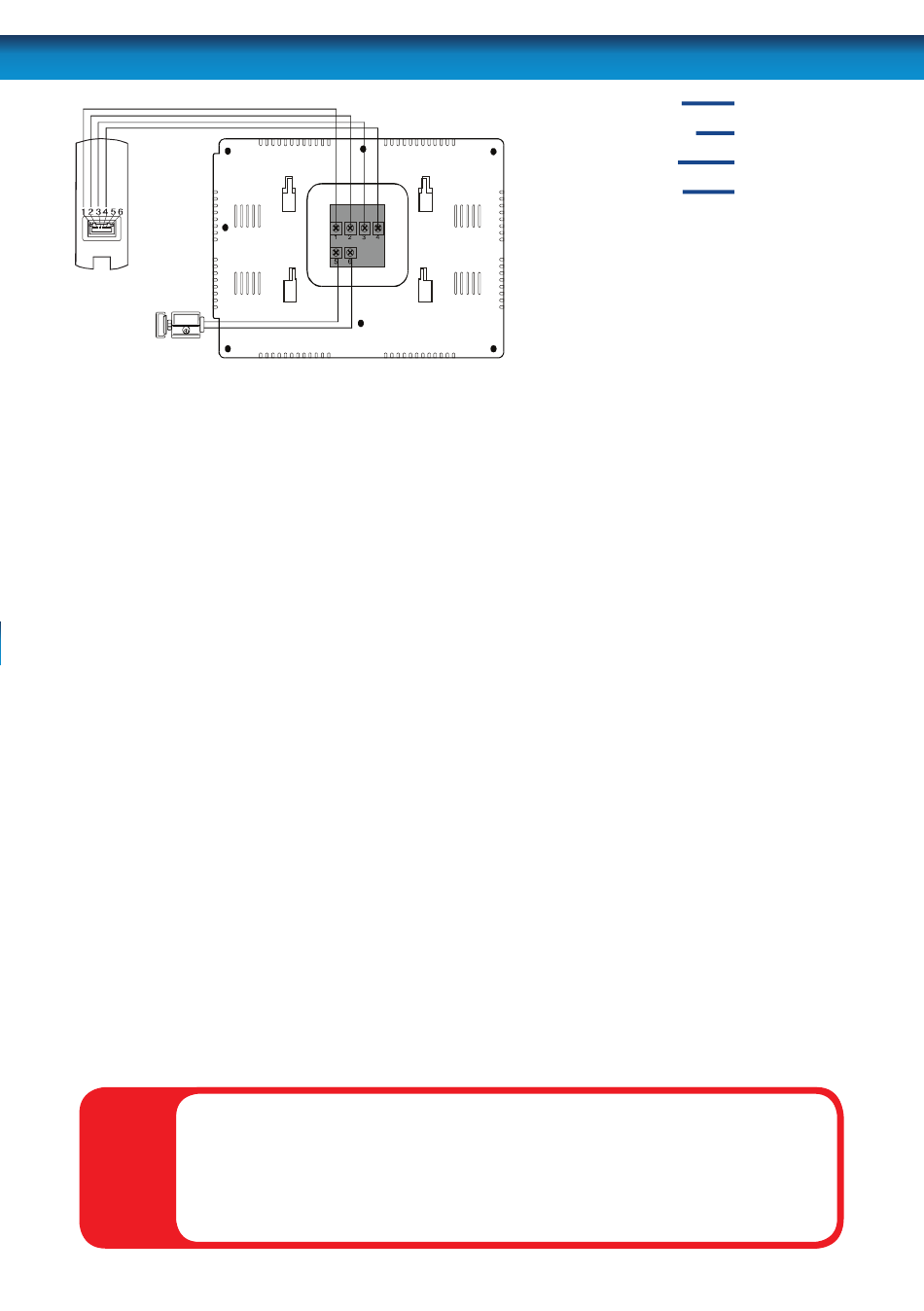

Wiring diagram

Doorphone
Caution
1. Audio wire Blue
2. Ground wire Brown
3. Video wire Green
4. Power wire Black
Attach the cable to the rear of
the Doorphone by sliding the
U-shaped connection under
each screw terminal. Screw
into place and be careful not
to over tighten.
5
