Melody Selection
Brightness Control
Colour Control
Volume Control

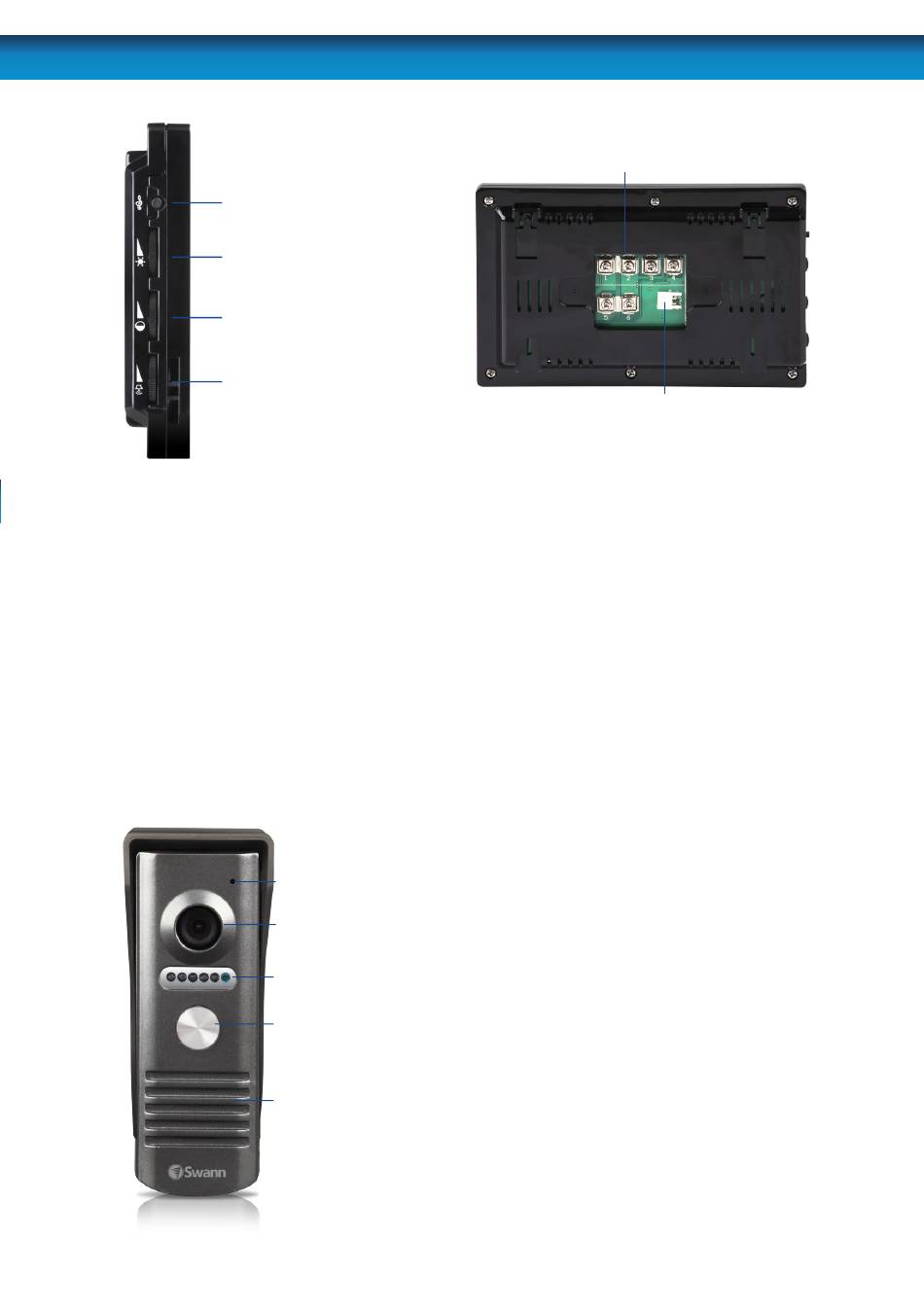

The left side of the Doorphone has extra controls that you can adjust.
MELODY SELECTION: There is a wide variety of different melodies that you can
select from. Press this button to select a different melody.
BRIGHTNESS: This adjusts the brightness of the image seen on the Doorphone.
COLOUR: This adjusts the colour level of the image seen on the Doorphone.
VOLUME: This adjusts the volume level of the speaker.
WIRING TERMINAL: This is where the enclosed cable is connected to.
DC 12V: This is where you plug the power adapter.
Layout
MICROPHONE: This is where the visitors
speak to you.
CAMERA LENS: This is where the image of
Microphone
the visitor is captured.
Camera lens
INFRARED LIGHT: The infrared light is what
allows the camera to see visitors at night.
Infrared light
The image will appear in black and white.
Call button
CALL BUTTON (DOORBELL): When the
(Doorbell)
visitor presses this button, the doorbell will
ring and the Doorphone will display the
Speaker
image from the camera.
SPEAKER: This is where the visitor hears you
speak to them from the Doorphone.
Wiring Terminal
DC12V
