  • Page 1 CS 3800 User and Installation Guide...
  • Page 2 © Carestream Dental LLC, 2021. The information in this document is subject to change. Neither Carestream Dental LLC nor any of its subsidiaries shall be liable for errors contained herein or for incidental damages in conjunction with the furnishing, performance, or use of this material.

  • Page 3: Table Of Contents

    This Guide Chapter 2 CS 3800 Overview ..... . . 3 CS 3800 Overview CS 3800 Scanner General Care ....5 CS 3800 Scanner Storage .

  • Page 5: Conventions In This Guide

    Did you find the information in this document helpful? Were you looking for information that was not in this document? Take our short survey and help us make this document better. To open the questionnaire, click http://guest.cvent.com/d/sdqtll/3B. CS 3800 User and Installation Guide (TA3975)_Ed01...
  • Page 6 Chapter 1 Conventions in This Guide...

  • Page 7: Cs 3800 Overview

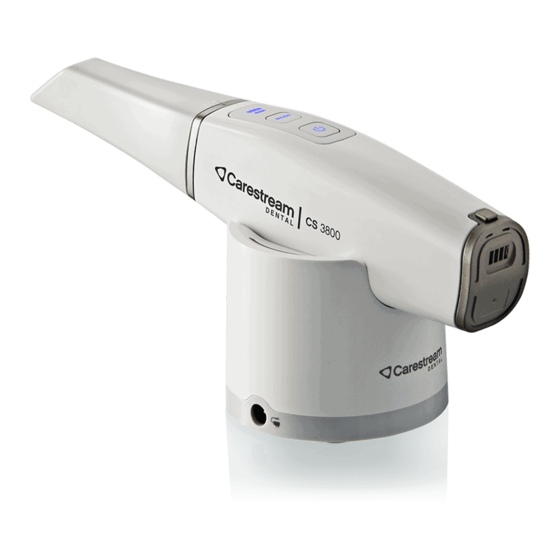

    CS 3800 Overview The CS 3800 is designed to acquire 3D still images in the following modes:  Lower jaw  Upper jaw  Buccal bite registration CS 3800 Overview Figure 1 CS 3800 Components Overview 1 Reusable tips There are three types of tips: Normal, facing downward; Side, facing left;...
  • Page 8 ScanFlow software to increase speed and signal strength. 8 Dock for WiFi Adapter Use the dock as an extension cable when you cannot easily plug the WiFi adapter into the USB 3.0 port due to space limitations. Chapter 2 CS 3800 Overview...

  • Page 9: Cs 3800 Scanner General Care

    CS 3800 Scanner General Care Figure 2 CS 3800 Front Protective Cover Important: Use the front protective cover when the CS 3800 is not in use. Figure 3 CS 3800 Posterior Protective Cover Important: Use the posterior protective cover when the battery is removed.

  • Page 10: Cs 3800 Scanner Storage

    When you are not using the scanner, place it in the charging station either vertically or horizontally to store it. Figure 4 Scanner Placed Vertically in Charging Station (With Battery Only) Figure 5 Scanner Placed Horizontally on Charging Station (With Tip Pointing Up) Chapter 2 CS 3800 Overview...

  • Page 11: Cs 3800 Handpiece Charging Station Overview

    Displays a CONSTANT ORANGE when a charging error occurs. The indicator on the scanner is turned off when the scanner is in the charging station. Figure 6 Handpiece Charging Station Figure 7 Handpiece Charging Station with Backup Power Cable CS 3800 User and Installation Guide (TA3975)_Ed01...
  • Page 12 Note: The charging station will NOT charge the battery if the backup power cable is connected to the charging station. Note: When the scanner is idle for more than an hour when charging or when using the backup power cable, it powers off. Chapter 2 CS 3800 Overview...
  • Page 13 Figure 9 Incorrect Use of Charging Station Important: DO NOT insert the bare battery in the handpiece charging station. CS 3800 User and Installation Guide (TA3975)_Ed01...

  • Page 14: Cs 3800 Battery Charging Station (Optional) Overview

    CS 3800 Battery Charging Station (Optional) Overview The CS 3800 battery charging station (optional) can charge up to two batteries at the same time. The indicator on the battery charging station:  Blinks in ORANGE when the battery is near empty.

  • Page 15: Cs 3800 Shade Calibration Unit Overview

    Order a new shade calibration unit if the gray card quality check fails when performing a calibration or if the expiration date on the shade calibration unit is approaching. See the CS ScanFlow User Guide for more information. CS 3800 User and Installation Guide (TA3975)_Ed01...
  • Page 16 12 Chapter 2 CS 3800 Overview...

  • Page 17: Setting Up The Scanner

    Firmly slide one of the tips onto the end of the scanner. Ensure that the indentation on the base of the tip aligns with the raised notch on the top of the scanner. Important: Do not cover the air inlet of the battery or backup power cable, otherwise the system will overheat. CS 3800 User and Installation Guide (TA3975)_Ed01...
  • Page 18 Insert the battery into the base of the scanner, and ensure that the contact points of the power connector are aligned with the battery. Gently push until the battery clicks into place. Insert the DC power supply into the jack on the charging station, and insert the power adapter into an outlet. Place the scanner in the charging base.

  • Page 19: Setting Up The Wifi Adapter

    The LED light on the battery charging station:  Blinks in ORANGE when the battery is near empty.  Blinks in BLUE when the battery is half full.  Displays a CONSTANT BLUE when the battery is fully charged. CS 3800 User and Installation Guide (TA3975)_Ed01...

  • Page 20: Preparing The Scanner

    You must sterilize the tips before the first use. Important: If you limit the exposure time at 134°C to not more than 4 minutes, you can autoclave the tip up to 110 cycles. See the CS 3800 Safety, Regulatory, and Technical Specifications User Guide for more information.
  • Page 21 Press the power button for three seconds to power on the scanner. On the CS ScanFlow interface, select the Upper Jaw acquisition mode. On the scanner, press the mode button for one second to select the acquisition mode. The mode indicator LED turns blue. CS 3800 User and Installation Guide (TA3975)_Ed01...
  • Page 22 18 Chapter 3 Setting Up the Scanner...

  • Page 23: Cleaning, Disinfecting, And Sterilizing

    You must clean, disinfect, and sterilize the scanner and accessories regularly. If you limit the holding time at 134°C to not more than 4 minutes, you can autoclave the tip up to 110 cycles. See the CS 3800 Safety, Regulatory, and Technical Specifications User Guide for more information.
  • Page 24 20 Chapter 4 Maintenance...

  • Page 25: Cs 3800 Troubleshooting Instructions

    CS minutes. The scanner will become inactive and cool down. ScanFlow interface. Hardware error code A component might be failing. Contact your local service ERR-00030AXX from the CS provider for assistance. ScanFlow interface. CS 3800 User and Installation Guide (TA3975)_Ed01...
  • Page 26 22 Chapter 5 Troubleshooting...

  • Page 27: Manufacturer's Address

    77435 Marne-la-Vallée, Cedex 2 France Authorized Representative in Brazil Carestream Dental Brasil Eireli Rua Romualdo Davoli, 65 1º Andar, Sala 01 - São José dos Campos São Paulo - Brazil CEP (Zip code): 12238-577 CS 3800 User and Installation Guide (TA3975)_Ed01...
  • Page 28 Carestream Dental LLC 23625 Cumberland Blvd. Ste. 700 Atlanta, GA USA 30339 For more information, visit: carestreamdental.com To give documentation feedback, visit: carestreamdental.com/documentationfeedback ©2021 Carestream Dental LLC. TA3975 Ed01 2021-06...
